- 8 -
USING THE MONITOR
Setting the Optimal Resolution
The recommended resolution for this monitor is 1360 by 768 or 1366 by 768. To setup the monitor to this resolution, follow
the steps below.
1. Click START.
2. Click SETTINGS.
3. Click CONTROL PANEL.
4. Double click DISPLAY.
5. Click SETTINGS.
6. Set the resolution SLIDE-BAR to 1360 by 768 or 1366 by 768.

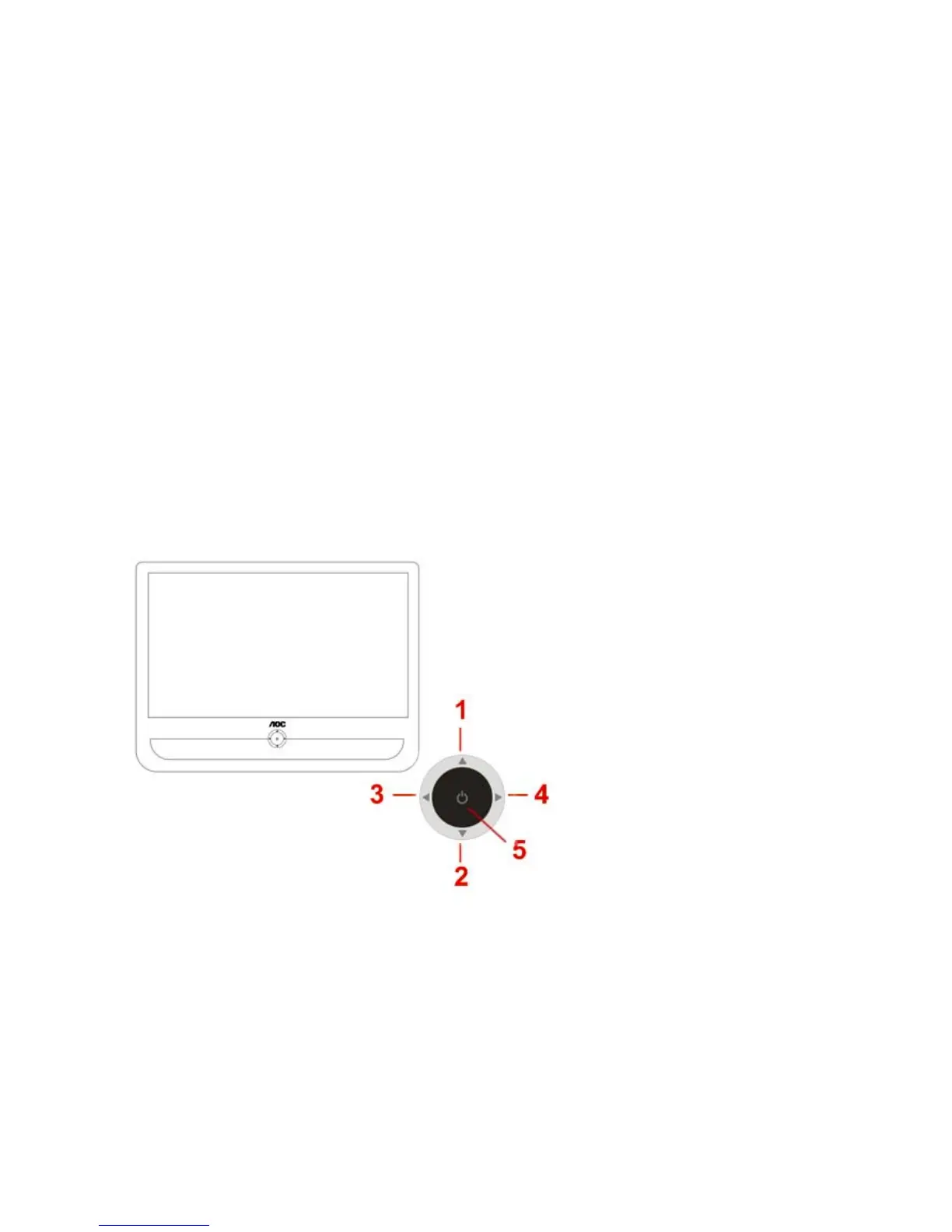

External Controls
Press the power button to turn the monitor on or off. The other control knobs are located at front panel of the monitor (See
Figure ). By changing these settings, the picture can be adjusted to your personal preferences.
* The power cord should be connected.
* Press the power button to turn on the monitor. The power indicator will light up.
1 Eco mode(DCR) / Up
2 Auto / Down
3 Contrast / Left
4 4:3 or wide / Right
5 Menu / Power
To Next Page
