AOC i2353Ph Service Manual

2

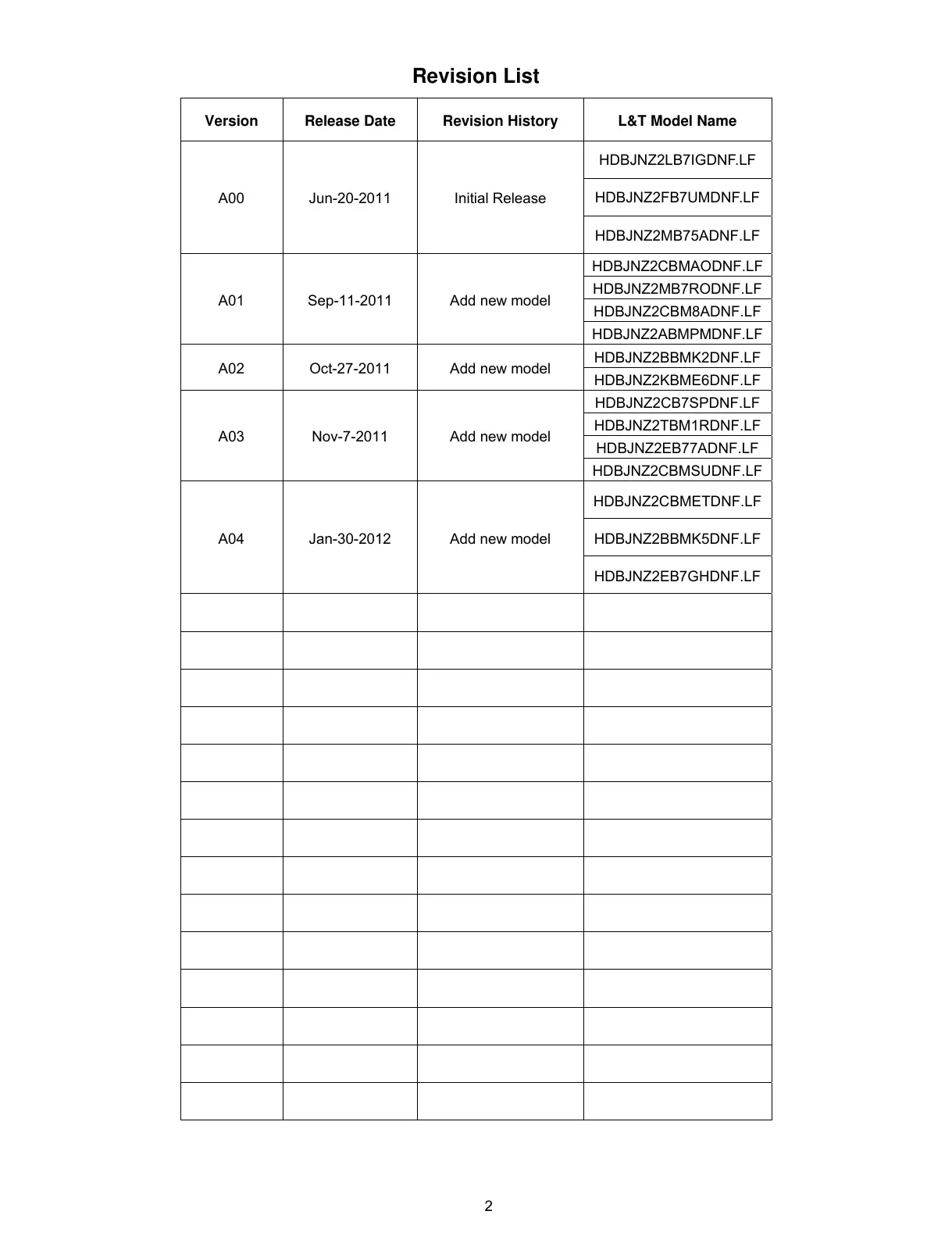

Revision List
Version Release Date Revision History L&T Model Name
A00 Jun-20-2011 Initial Release
HDBJNZ2LB7IGDNF.LF
HDBJNZ2FB7UMDNF.LF
HDBJNZ2MB75ADNF.LF
A01 Sep-11-2011 Add new model
HDBJNZ2CBMAODNF.LF
HDBJNZ2MB7RODNF.LF
HDBJNZ2CBM8ADNF.LF
HDBJNZ2ABMPMDNF.LF
A02 Oct-27-2011 Add new model
HDBJNZ2BBMK2DNF.LF
HDBJNZ2KBME6DNF.LF
A03 Nov-7-2011 Add new model
HDBJNZ2CB7SPDNF.LF
HDBJNZ2TBM1RDNF.LF
HDBJNZ2EB77ADNF.LF
HDBJNZ2CBMSUDNF.LF
A04 Jan-30-2012 Add new model
HDBJNZ2CBMETDNF.LF
HDBJNZ2BBMK5DNF.LF
HDBJNZ2EB7GHDNF.LF
All manuals and user guides at all-guides.com

AOC i2353Ph Specifications

General

3D	No
Pixel pitch	0.265 x 0.265 mm
Aspect ratio	16:9
Display diagonal	23 \
Display technology	LED
Vertical scan range	50 - 76 Hz
Horizontal scan range	30 - 83 kHz
Supported video modes	1080p, 480p, 576p, 720p
Viewable size, vertical	286.4 mm
Contrast ratio (dynamic)	50000000:1
Display number of colors	16.78 million colors
Viewable size, horizontal	509.2 mm
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	640 x 350, 720 x 400, 832 x 624, 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 640 x 480 (VGA), 800 x 600 (SVGA)
HDCP	Yes
DVI-D ports quantity	0
RMS rated power	4 W
Panel mounting interface	100 x 100 mm
AC input voltage	110 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	45 W
Operating altitude	0 - 3658 m
Storage temperature (T-T)	-25 - 55 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 93 %
Operating relative humidity (H-H)	10 - 85 %
Market positioning	-

Weight and Dimensions

Depth (without stand)	185.7 mm
Width (without stand)	549.5 mm
Height (without stand)	388.3 mm
Weight (without stand)	2850 g
