2. LCD Monitor Description
The LCD MONITOR will contain a main board,a key and two speakers board which house the flat panel control logic,
brightness control logic and DDC.

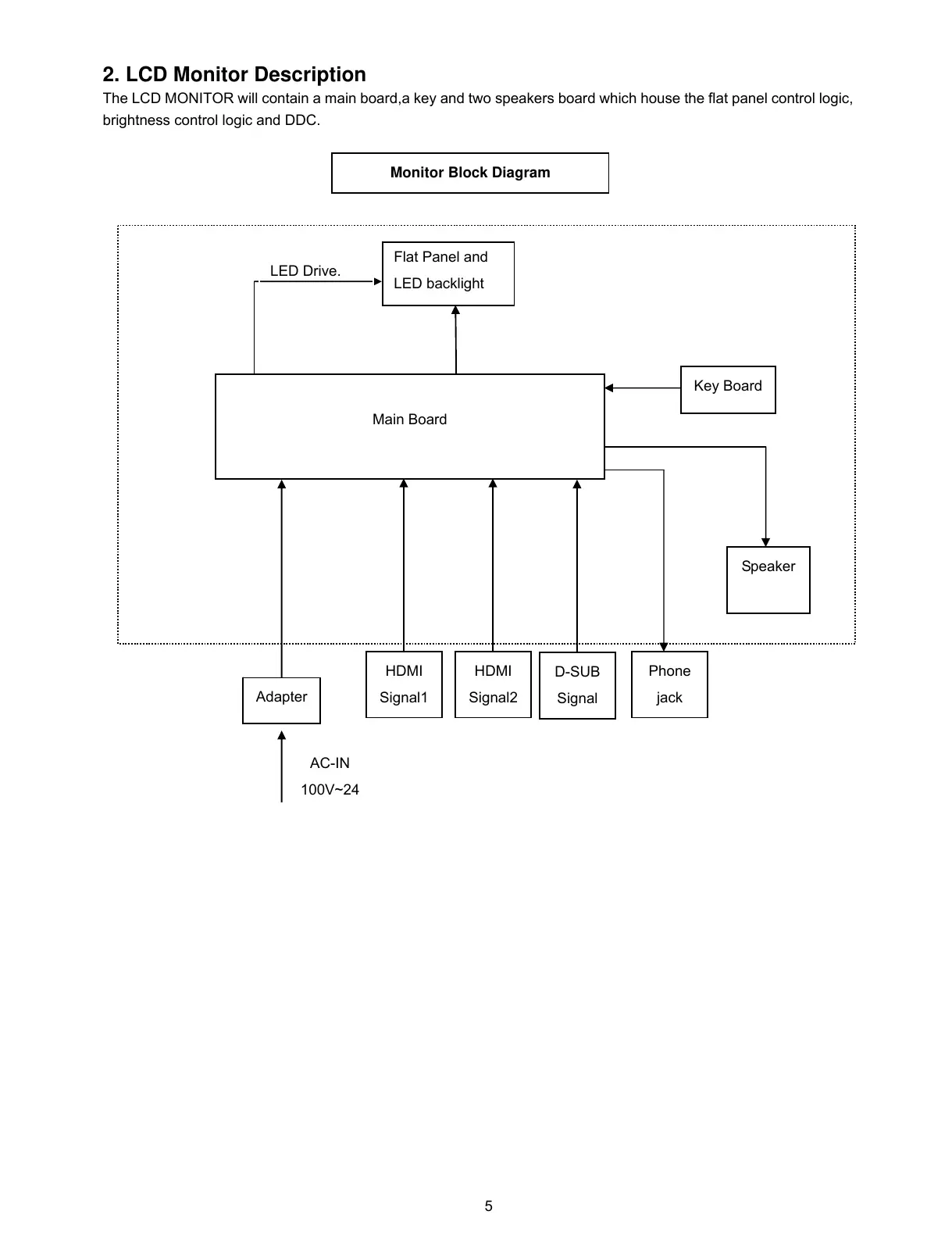

Monitor Block Diagram
Flat Panel and
LED backlight
Main Board
Key Board
Adapter
D-SUB
Signal
AC-IN
100V~24
LED Drive.
HDMI
Signal1
Phone
jack
HDMI
Signal2
Speaker
All manuals and user guides at all-guides.com

AOC i2353Ph Specifications

General

3D	No
Pixel pitch	0.265 x 0.265 mm
Aspect ratio	16:9
Display diagonal	23 \
Display technology	LED
Vertical scan range	50 - 76 Hz
Horizontal scan range	30 - 83 kHz
Supported video modes	1080p, 480p, 576p, 720p
Viewable size, vertical	286.4 mm
Contrast ratio (dynamic)	50000000:1
Display number of colors	16.78 million colors
Viewable size, horizontal	509.2 mm
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	640 x 350, 720 x 400, 832 x 624, 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 640 x 480 (VGA), 800 x 600 (SVGA)
HDCP	Yes
DVI-D ports quantity	0
RMS rated power	4 W
Panel mounting interface	100 x 100 mm
AC input voltage	110 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	45 W
Operating altitude	0 - 3658 m
Storage temperature (T-T)	-25 - 55 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 93 %
Operating relative humidity (H-H)	10 - 85 %
Market positioning	-

Weight and Dimensions

Depth (without stand)	185.7 mm
Width (without stand)	549.5 mm
Height (without stand)	388.3 mm
Weight (without stand)	2850 g
