AOC i2353Ph Service Manual

4

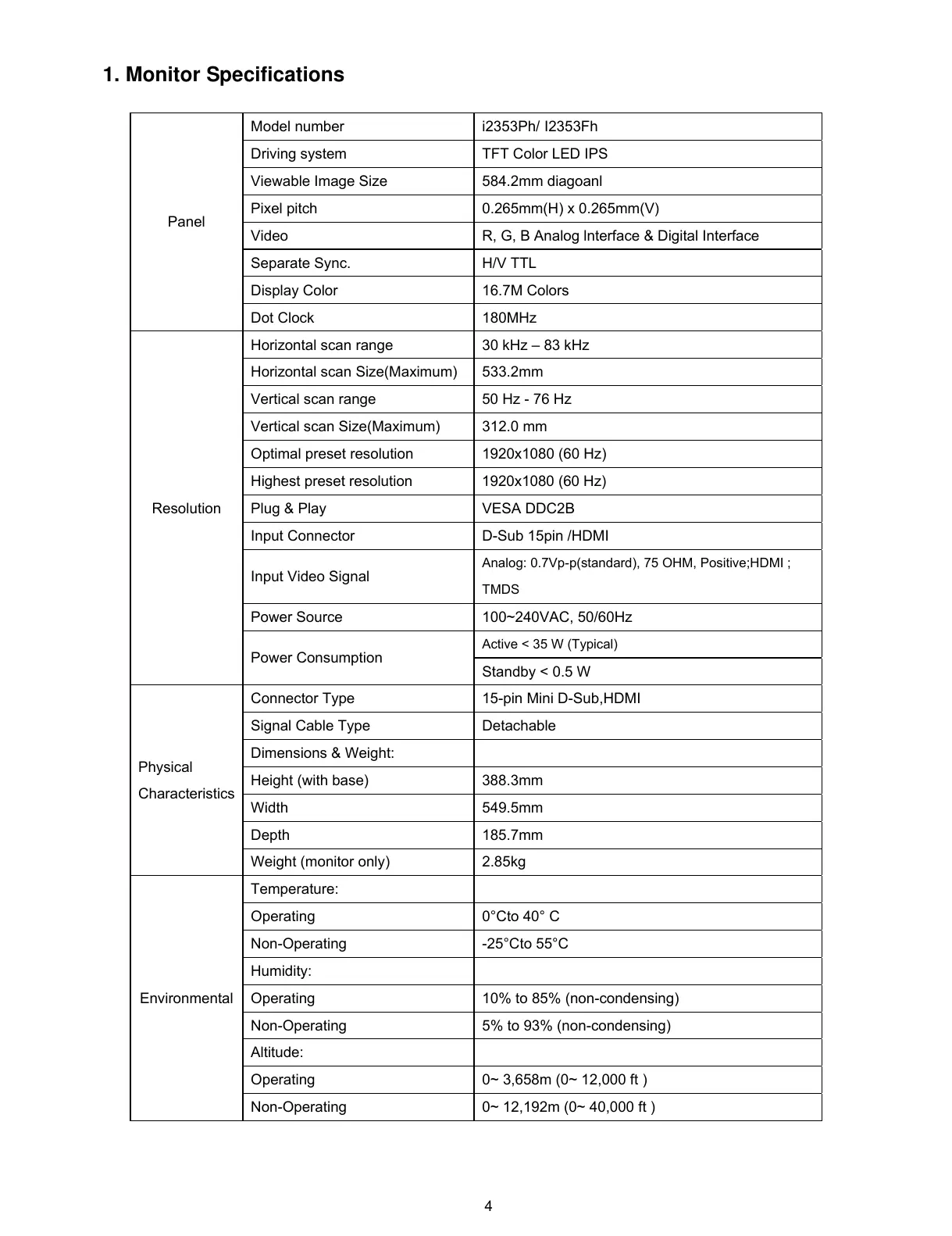

1. Monitor Specifications
Panel
Model number i2353Ph/
I2353Fh
Driving system TFT Color LED IPS
Viewable Image Size 584.2mm diagoanl
Pixel pitch 0.265mm(H) x 0.265mm(V)
Video R, G, B Analog lnterface & Digital Interface
Separate Sync. H/V TTL
Display Color 16.7M Colors
Dot Clock 180MHz
Resolution
Horizontal scan range 30 kHz – 83 kHz
Horizontal scan Size(Maximum) 533.2mm
Vertical scan range 50 Hz - 76 Hz
Vertical scan Size(Maximum) 312.0 mm
Optimal preset resolution 1920x1080 (60 Hz)
Highest preset resolution 1920x1080 (60 Hz)
Plug & Play VESA DDC2B
Input Connector D-Sub 15pin /HDMI
Input Video Signal
Analog: 0.7Vp-p(standard), 75 OHM, Positive;HDMI ;
TMDS
Power Source 100~240VAC, 50/60Hz
Power Consumption
Active < 35 W (Typical)
Standby < 0.5 W
Physical
Characteristics
Connector Type 15-pin Mini D-Sub,HDMI
Signal Cable Type Detachable
Dimensions & Weight:
Height (with base) 388.3mm
Width 549.5mm
Depth 185.7mm
Weight (monitor only) 2.85kg
Environmental
Temperature:
Operating 0°Cto 40° C
Non-Operating -25°Cto 55°C
Humidity:
Operating 10% to 85% (non-condensing)
Non-Operating 5% to 93% (non-condensing)
Altitude:
Operating 0~ 3,658m (0~ 12,000 ft )
Non-Operating 0~ 12,192m (0~ 40,000 ft )
All manuals and user guides at all-guides.com

AOC i2353Ph Specifications

General

3D	No
Pixel pitch	0.265 x 0.265 mm
Aspect ratio	16:9
Display diagonal	23 \
Display technology	LED
Vertical scan range	50 - 76 Hz
Horizontal scan range	30 - 83 kHz
Supported video modes	1080p, 480p, 576p, 720p
Viewable size, vertical	286.4 mm
Contrast ratio (dynamic)	50000000:1
Display number of colors	16.78 million colors
Viewable size, horizontal	509.2 mm
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	640 x 350, 720 x 400, 832 x 624, 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 640 x 480 (VGA), 800 x 600 (SVGA)
HDCP	Yes
DVI-D ports quantity	0
RMS rated power	4 W
Panel mounting interface	100 x 100 mm
AC input voltage	110 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	45 W
Operating altitude	0 - 3658 m
Storage temperature (T-T)	-25 - 55 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 93 %
Operating relative humidity (H-H)	10 - 85 %
Market positioning	-

Weight and Dimensions

Depth (without stand)	185.7 mm
Width (without stand)	549.5 mm
Height (without stand)	388.3 mm
Weight (without stand)	2850 g
