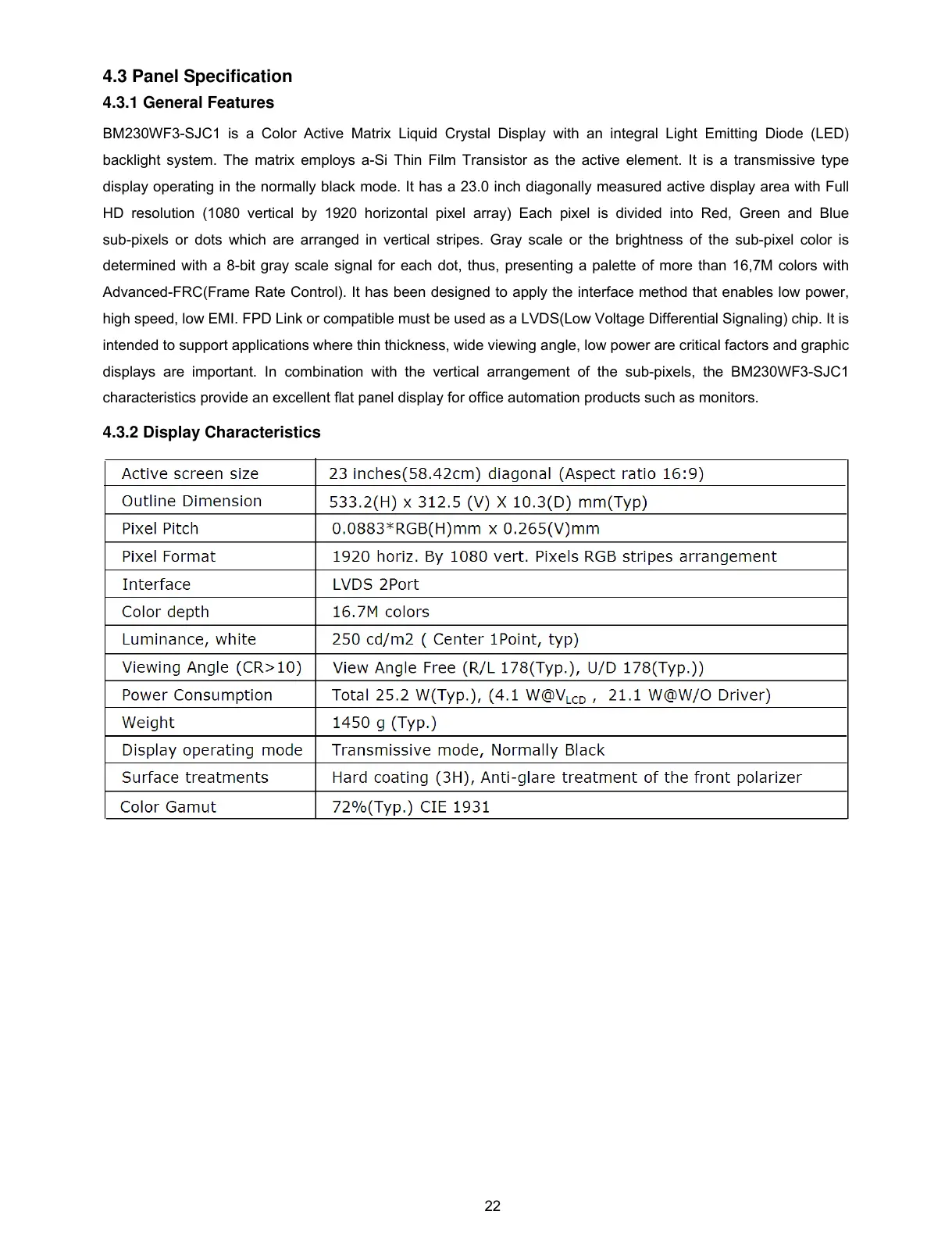

4.3 Panel Specification

4.3.1 General Features

BM230WF3-SJC1 is a Color Active Matrix Liquid Crystal Display with an integral Light Emitting Diode (LED)

backlight system. The matrix employs a-Si Thin Film Transistor as the active element. It is a transmissive type

display operating in the normally black mode. It has a 23.0 inch diagonally measured active display area with Full

HD resolution (1080 vertical by 1920 horizontal pixel array) Each pixel is divided into Red, Green and Blue

sub-pixels or dots which are arranged in vertical stripes. Gray scale or the brightness of the sub-pixel color is

determined with a 8-bit gray scale signal for each dot, thus, presenting a palette of more than 16,7M colors with

Advanced-FRC(Frame Rate Control). It has been designed to apply the interface method that enables low power,

high speed, low EMI. FPD Link or compatible must be used as a LVDS(Low Voltage Differential Signaling) chip. It is

intended to support applications where thin thickness, wide viewing angle, low power are critical factors and graphic

displays are important. In combination with the vertical arrangement of the sub-pixels, the BM230WF3-SJC1

characteristics provide an excellent flat panel display for office automation products such as monitors.

4.3.2 Display Characteristics

All manuals and user guides at all-guides.com

Other manuals for AOC i2353Ph

Questions and Answers:

Need help?

Do you have a question about the AOC i2353Ph and is the answer not in the manual?

General

3D	No
Pixel pitch	0.265 x 0.265 mm
Aspect ratio	16:9
Display diagonal	23 \
Display technology	LED
Vertical scan range	50 - 76 Hz
Horizontal scan range	30 - 83 kHz
Supported video modes	1080p, 480p, 576p, 720p
Viewable size, vertical	286.4 mm
Contrast ratio (dynamic)	50000000:1
Display number of colors	16.78 million colors
Viewable size, horizontal	509.2 mm
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	640 x 350, 720 x 400, 832 x 624, 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 640 x 480 (VGA), 800 x 600 (SVGA)
HDCP	Yes
DVI-D ports quantity	0
RMS rated power	4 W
Panel mounting interface	100 x 100 mm
AC input voltage	110 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	45 W
Operating altitude	0 - 3658 m
Storage temperature (T-T)	-25 - 55 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 93 %
Operating relative humidity (H-H)	10 - 85 %
Market positioning	-
