AOC i2353Ph Service Manual

AOC i2353Ph
53 pages
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Page #44 background imageLoading...
Page #44 background image
44

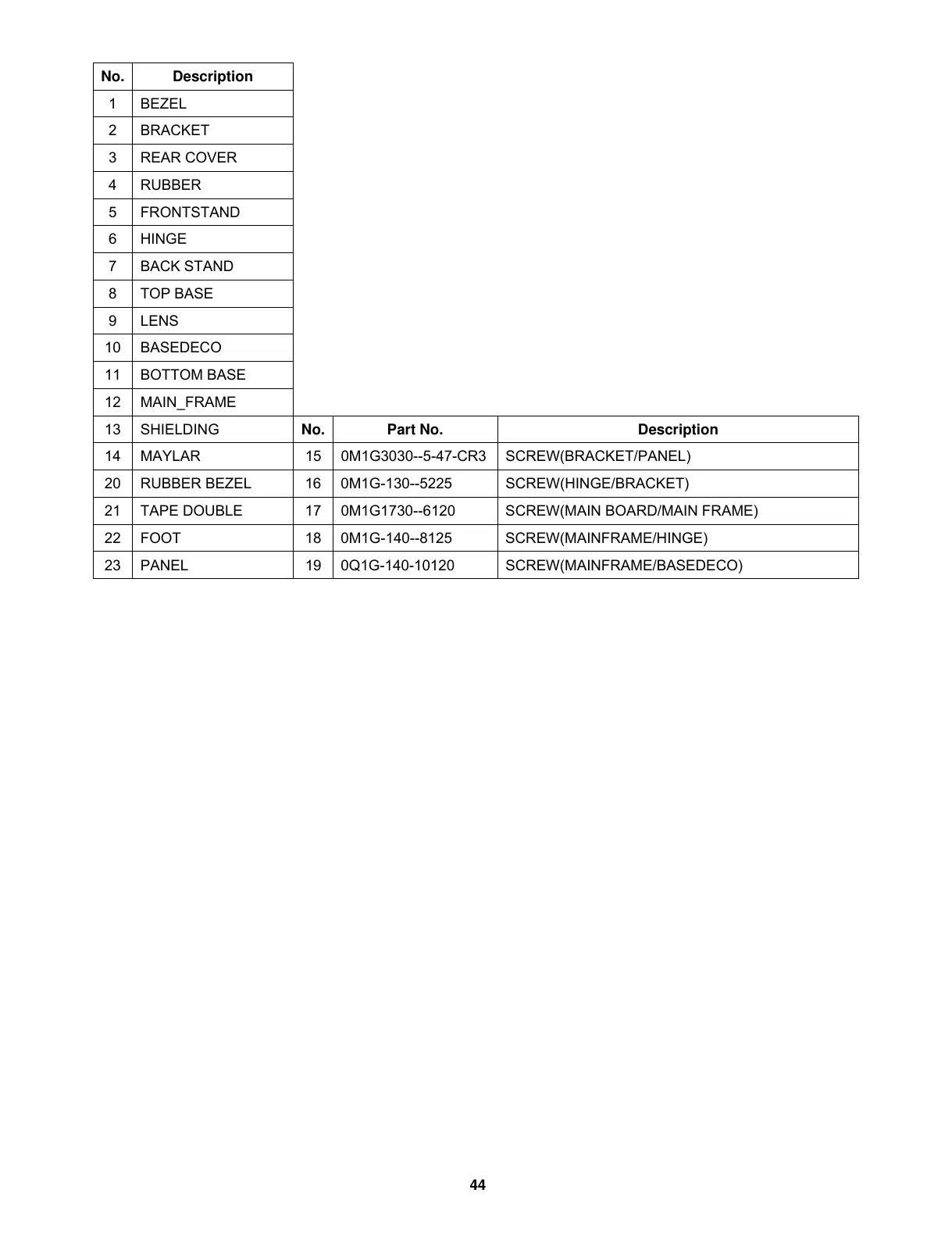

No. Description
1 BEZEL
2 BRACKET
3 REAR COVER
4 RUBBER
5 FRONTSTAND
6 HINGE
7 BACK STAND
8 TOP BASE
9 LENS
10 BASEDECO
11 BOTTOM BASE
12 MAIN_FRAME
13 SHIELDING
No. Part No. Description
14 MAYLAR 15 0M1G3030--5-47-CR3 SCREW(BRACKET/PANEL)
20 RUBBER BEZEL 16 0M1G-130--5225 SCREW(HINGE/BRACKET)
21 TAPE DOUBLE 17 0M1G1730--6120 SCREW(MAIN BOARD/MAIN FRAME)
22 FOOT 18 0M1G-140--8125 SCREW(MAINFRAME/HINGE)
23 PANEL 19 0Q1G-140-10120 SCREW(MAINFRAME/BASEDECO)
