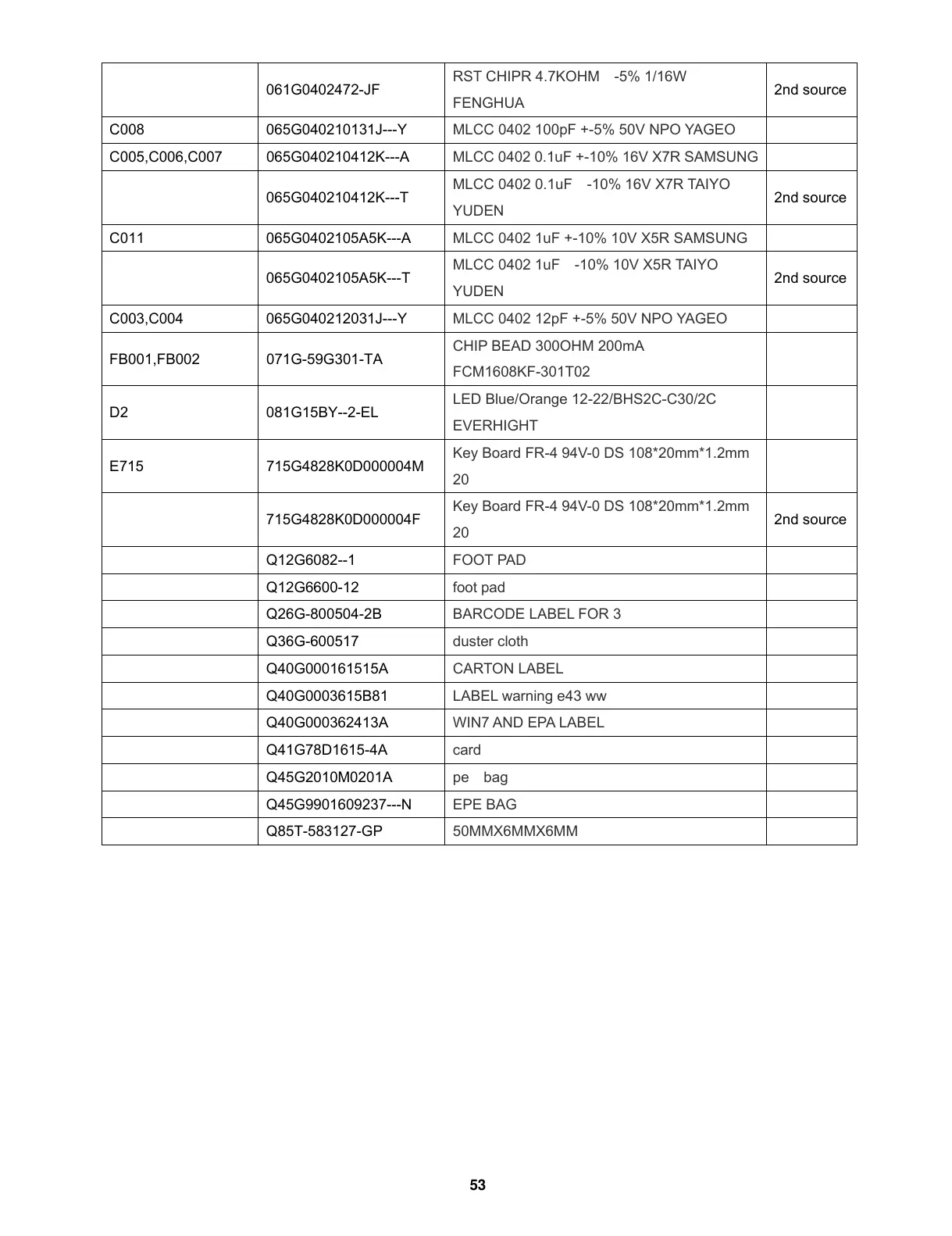

AOC i2353Ph Service Manual

53
061G0402472-JF
RST CHIPR 4.7KOHM -5% 1/16W
FENGHUA
2nd source
C008 065G040210131J---Y MLCC 0402 100pF +-5% 50V NPO YAGEO
C005,C006,C007 065G040210412K---A MLCC 0402 0.1uF +-10% 16V X7R SAMSUNG
065G040210412K---T
MLCC 0402 0.1uF -10% 16V X7R TAIYO
YUDEN
2nd source
C011 065G0402105A5K---A MLCC 0402 1uF +-10% 10V X5R SAMSUNG
065G0402105A5K---T
MLCC 0402 1uF -10% 10V X5R TAIYO
YUDEN
2nd source
C003,C004 065G040212031J---Y MLCC 0402 12pF +-5% 50V NPO YAGEO
FB001,FB002 071G-59G301-TA
CHIP BEAD 300OHM 200mA
FCM1608KF-301T02
D2 081G15BY--2-EL
LED Blue/Orange 12-22/BHS2C-C30/2C
EVERHIGHT
E715 715G4828K0D000004M
Key Board FR-4 94V-0 DS 108*20mm*1.2mm
20
715G4828K0D000004F
Key Board FR-4 94V-0 DS 108*20mm*1.2mm
20
2nd source
Q12G6082--1 FOOT PAD
Q12G6600-12 foot pad
Q26G-800504-2B BARCODE LABEL FOR 3
Q36G-600517 duster cloth
Q40G000161515A CARTON LABEL
Q40G0003615B81 LABEL warning e43 ww
Q40G000362413A WIN7 AND EPA LABEL
Q41G78D1615-4A card
Q45G2010M0201A pe bag
Q45G9901609237---N EPE BAG
Q85T-583127-GP 50MMX6MMX6MM
All manuals and user guides at all-guides.com

AOC i2353Ph Specifications

General

3D	No
Pixel pitch	0.265 x 0.265 mm
Aspect ratio	16:9
Display diagonal	23 \
Display technology	LED
Vertical scan range	50 - 76 Hz
Horizontal scan range	30 - 83 kHz
Supported video modes	1080p, 480p, 576p, 720p
Viewable size, vertical	286.4 mm
Contrast ratio (dynamic)	50000000:1
Display number of colors	16.78 million colors
Viewable size, horizontal	509.2 mm
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	640 x 350, 720 x 400, 832 x 624, 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 640 x 480 (VGA), 800 x 600 (SVGA)
HDCP	Yes
DVI-D ports quantity	0
RMS rated power	4 W
Panel mounting interface	100 x 100 mm
AC input voltage	110 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	45 W
Operating altitude	0 - 3658 m
Storage temperature (T-T)	-25 - 55 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 93 %
Operating relative humidity (H-H)	10 - 85 %
Market positioning	-

Weight and Dimensions

Depth (without stand)	185.7 mm
Width (without stand)	549.5 mm
Height (without stand)	388.3 mm
Weight (without stand)	2850 g
