22’’ LCD TV AOC L22W631
32
Note:
1) When select the color temp( warm/cool/normal), set PC timing as 137，AV timing as 304 ，YPbPr timing as 323
HDMI timing as 350。
2) Before adjust color temp, make PC (timing137, pat48), AV (timing304, pat48), YPbPr (timing323, pat47

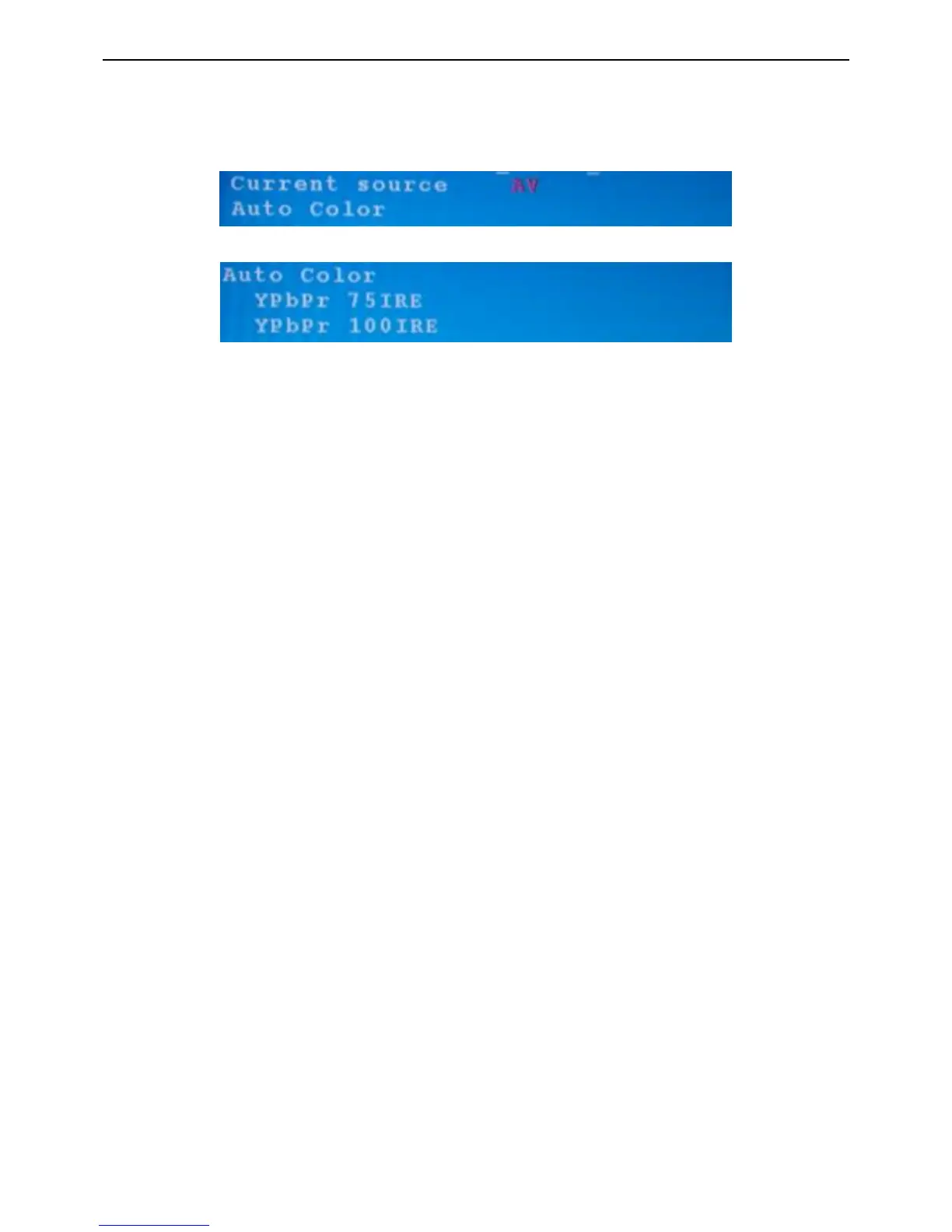

&timing323,pat185) Auto Color。The below pictures is for your reference:
AV auto color
YPbPr16 gray phase Auto Color & color phase100IRE
3) Please don’t change the brightness and contrast default value 80/50 during adjustment. If the default values
changed, please enter into the factory mode to select RESET.
