22’’ LCD TV AOC L22W631
13

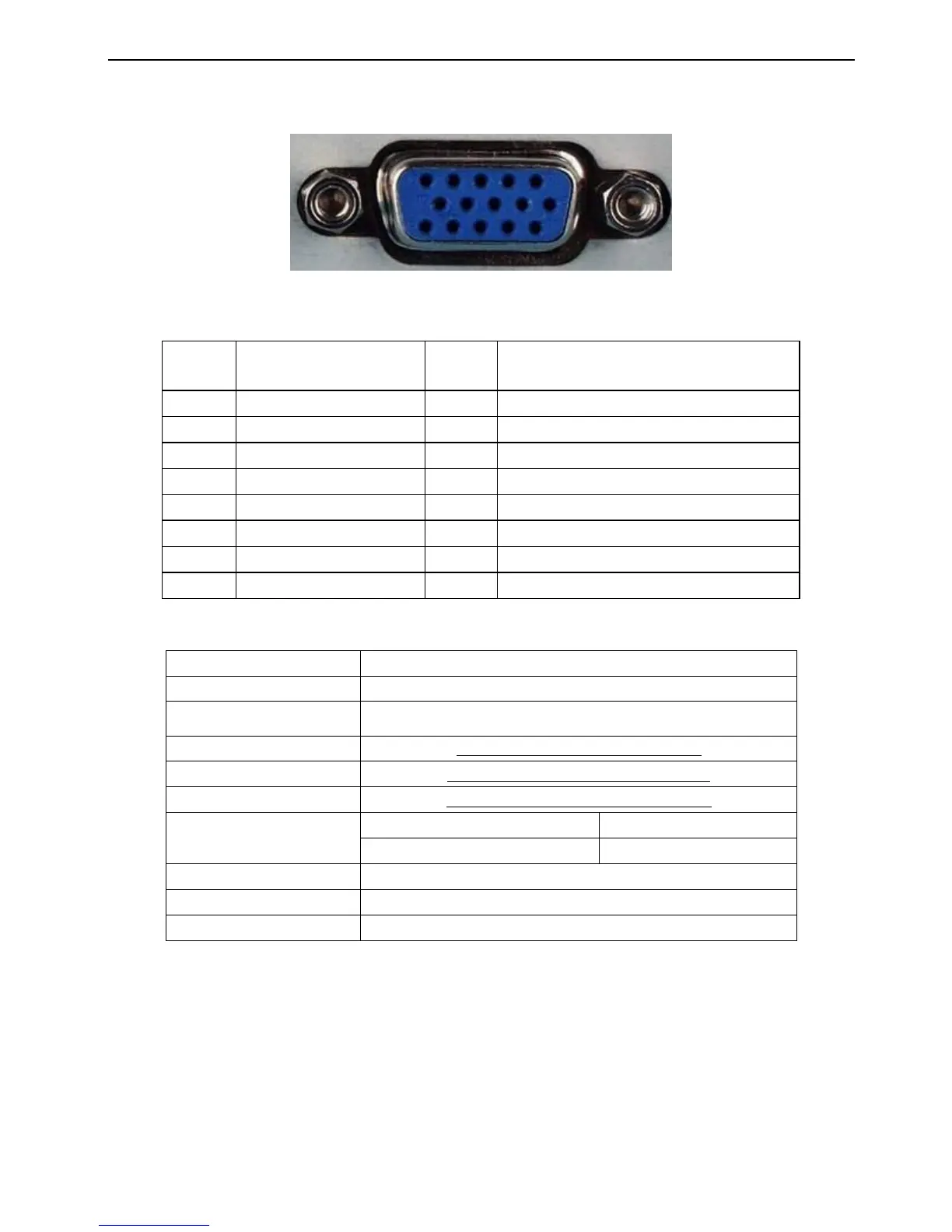

3. Input/Output Specification
3.1 RGB Signal input
15 - Pin Color Display Signal Cable
Pin No.
Description
Pin No.
Description
1
Red Video
9
No Pin!
2
Green Video
10
Sync Ground
3
Blue Video
11
SDA(Remote Control)
4
SCL(Remote Control)
12
Serial Data for DDC
5
Ground
13
H-Sync.
6
Red Video Ground
14
V-Sync.
7
Green Video Ground
15
Serial Clock for DDC
8
Blue Video Ground
3.2 RF HDTV Signal input
TUNER SIGNAL
Channel Coverage
NTSC ，PAL M/N
Tuner
ChangHong
TAF5-U2F41RW
VHF Low band
IC1(55.25MHz) ～S6(127.25MHz)CH
VHF High band
S7(133.25MHz) ～ S36(361.25MHz)CH
UHF band
S37(367.25MHz)～ C57(801.25MHz)CH
IF Frequency
Picture carrier
Sound carrier
42.17 MHz
41.25 MHz
Stereo/Bilingual
BTSC / SAP
Impedance
: 75 ohm terminated
LEVEL
: 70dBuV
