Wall-mount instruction

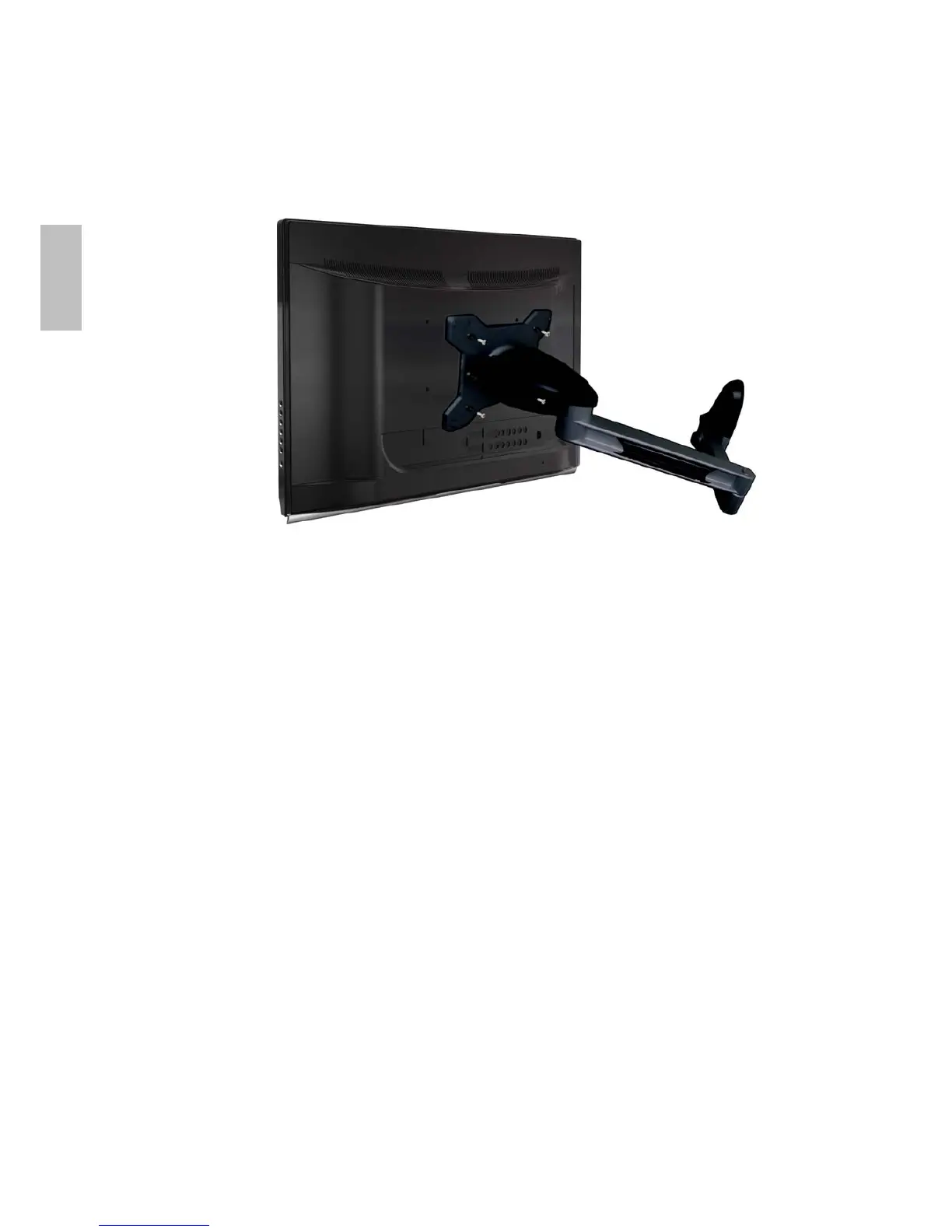

Attaching The Optional Wall Mount Arm (not supplied)
Follow these steps to finish installing the wall mounting arm:
1. Place the wall mounting arm onto the back of the TV. Line up the holes of the arm with the holes in the
back of the monitor.
2. Insert the 4 screws into the holes and tighten.
3. Reconnect the cables. Refer to the user’s manual that came with the optional wall mounting arm for
instructions on attaching it to the wall.
NOTE
200mmx100mm VESA high hole (n=4), M4, pitch =0.7 mm, deep =10 mm screw mounting
kit not included.
Due to safety concerns, if the VESA mounting kit is purchased separately please make sure the
mounting kit is UL-Listed, and replaceable only by service personnel.
