Connecting the Monitor

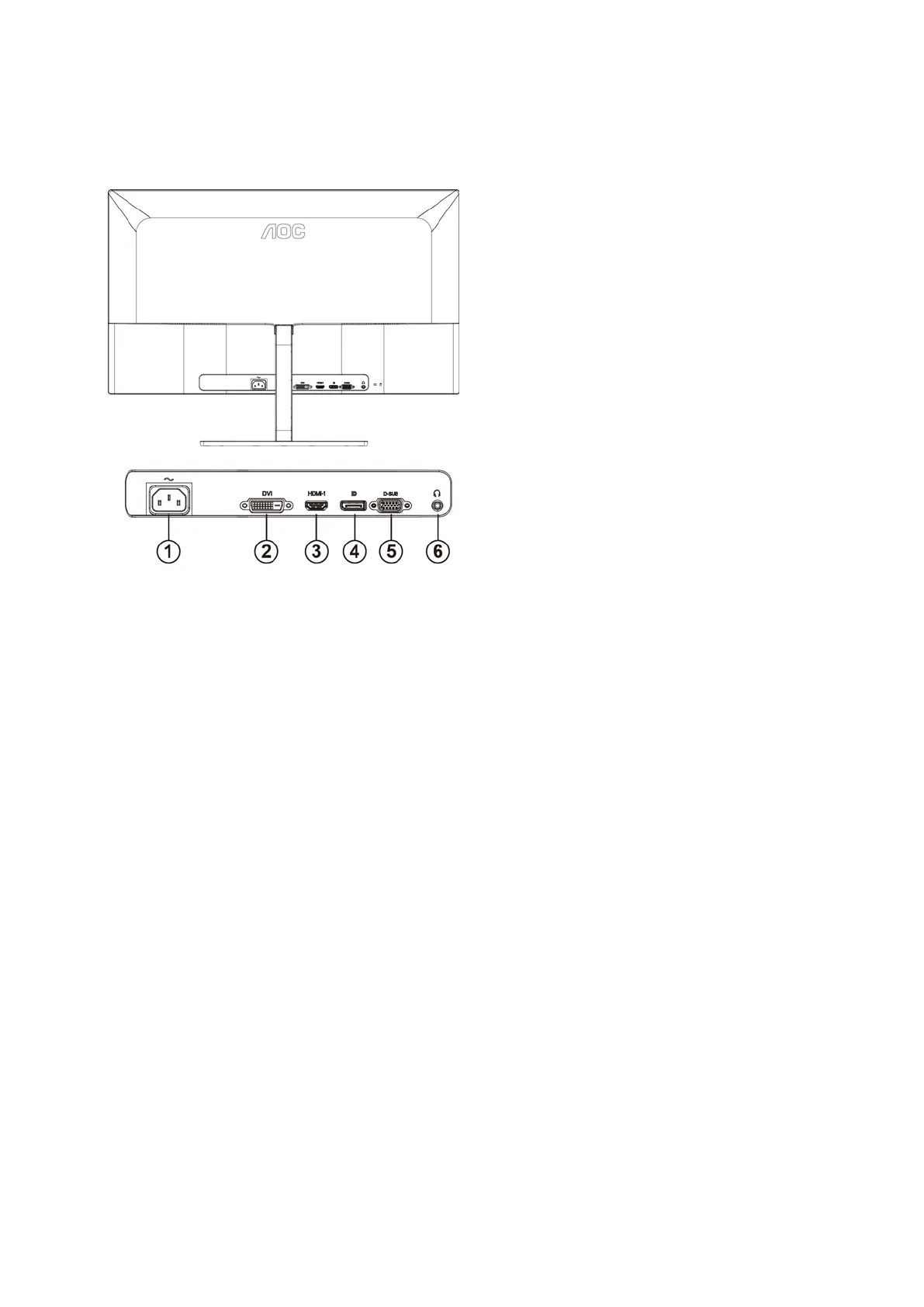

Cable Connections In Back of Monitor and Computer:
1 Power
2 DVI Dual-Link
3 HDMI
4 Display Port
5 D-SUB
6 Earphone
To protect equipment, always turn off the PC and LCD monitor before connecting.
1 Connect the power cable to the AC port on the back of the monitor.
2 (Optional – Requires a video card with DVI port) - Connect one end of the DVI cable to the back of the monitor
and connect the other end to the computer’s DVI port.
3 (Optional – Requires a video card with HDMI port) - Connect one end of the HDMI cable to the back of the
monitor and connect the other end to the computer’s HDMI port.
4 (Optional–Requires a video card with DP port) –Connect one end of the DP cable to the back of the monitor
and connect the other end to the computer’s DP port.
5 Connect one end of the D-Sub cable to the back of the monitor and connect the other end to the computer's
D-Sub port.
6 Turn on your monitor and computer.
7 Video content supporting resolution:
(1) VGA: 1920 x1080@60Hz (Maximum)
(2) DVI Dual-Link: 2560x1440@60Hz (Maximum)
(3) HDMI/DP: 2560x1440@75Hz (Maximum)
If your monitor displays an image, installation is complete. If it does not display an image, please refer
Troubleshooting.
