AOC Q3279VWF User Manual

48

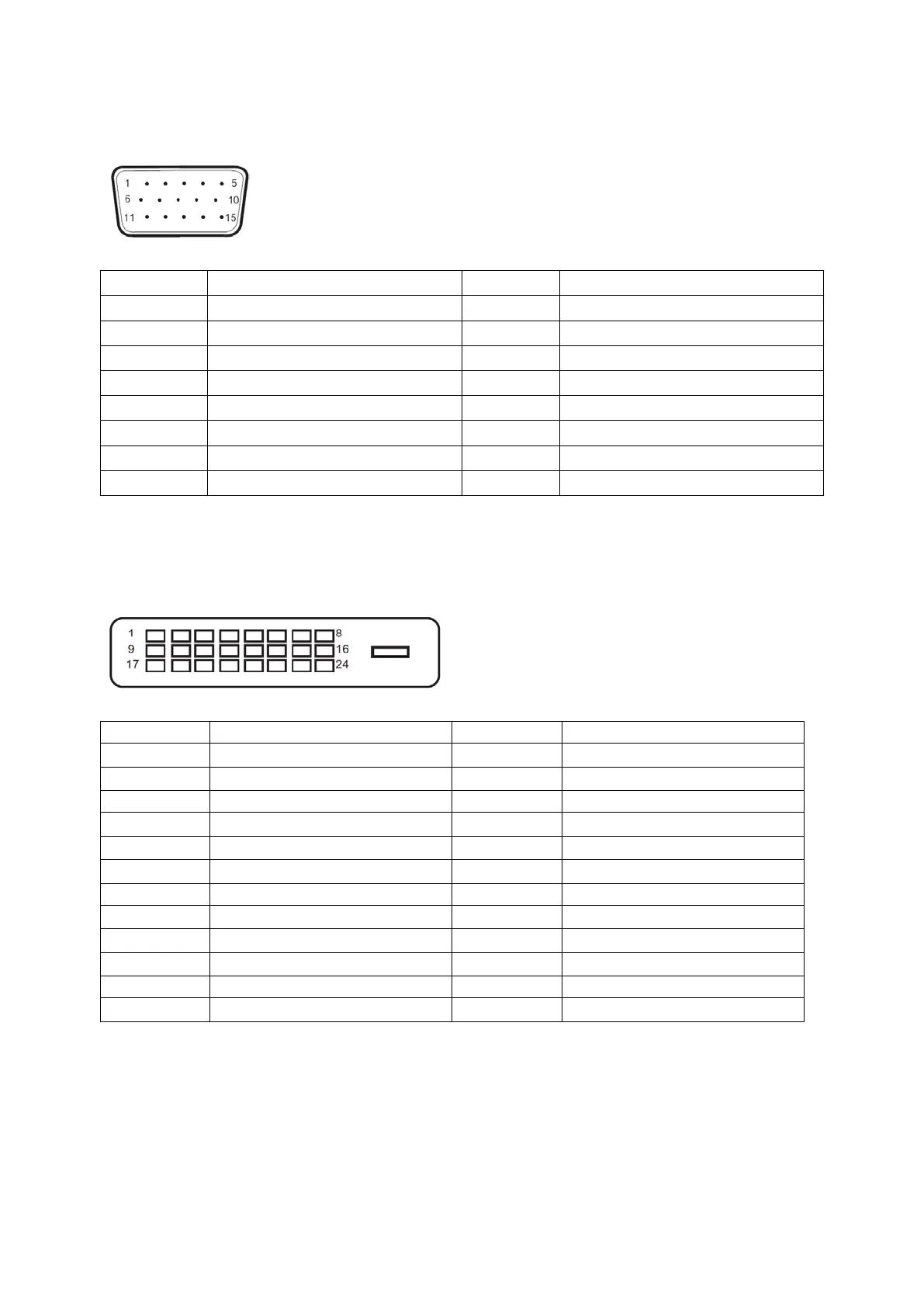

Pin Assignments
15-Pin Color Display Signal Cable
Pin Number
15-Pin Side of the Signal Cable Pin Number 15-Pin Side of the Signal Cable
1
Video-Red
9
+5V
2
Video-Green
10
Ground
3
Video-Blue
11
N.C.
4
N.C.
12
DDC-Serial data
5
Detect Cable
13
H-sync
6
GND-R
14
V-sync
7
GND-G
15
DDC-Serial clock
8
GND-B
24-Pin Color Display Signal Cable
Pin No.
Signal Name
Pin No.
Signal Name
1 TMDS data 2－ 13 TMDS data 3＋
2 TMDS data 2＋ 14 ＋5V Power
3 TMDS data 2/4 Shield 15 Ground (for+5V)
4
TMDS data 4－
16 Hot Plug Detect
5 TMDS data 4＋ 17 TMDS data 0－
6 DDC Clock 18
TMDS data 0＋
7
DDC Data
19
TMDS data 0/5 Shield
8 N.C. 20 TMDS data 5－
9 TMDS data 1－ 21 TMDS data 5＋
10
TMDS data 1＋
22 TMDS Clock Shield
11
TMDS data 1/3 Shield
23
TMDS Clock +
12 TMDS data 3－ 24 TMDS Clock －

AOC Q3279VWF Specifications

General

Screen Size	31.5 inches
Resolution	2560 x 1440 (QHD)
Panel Type	VA
Refresh Rate	75 Hz
Response Time	5 ms
Aspect Ratio	16:9
Brightness	250 cd/m²
Contrast Ratio	3000:1
Color Support	16.7 million
Viewing Angle	178° (H) / 178° (V)
VESA Mount	100 x 100 mm
Color Gamut	NTSC 88%
Inputs	HDMI, DisplayPort, DVI, VGA
