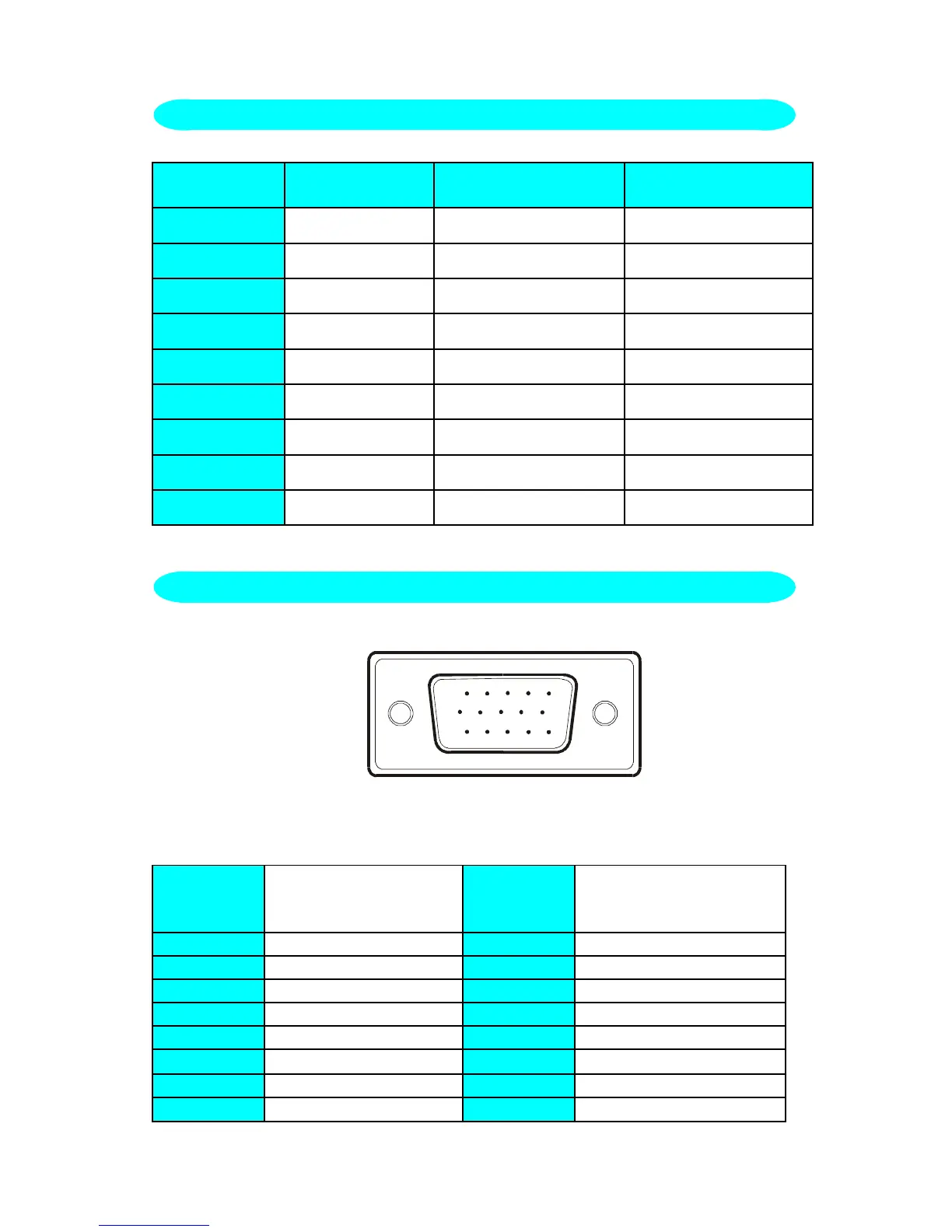

AOC Spectrum 7Vlr - Factory Preset Timing Table; Connector Pin Assignment

15
STANDARD
RESOLUTION
HORIZONTAL
FREQUENCY
VERTICAL
FREQUENCY
IBM
720 × 400 31.47kHz 70Hz
VGA 640 × 480 31.47kHz 60Hz
VESA/75 640 × 480 37.5kHz 75Hz
VESA/85 640 × 480 43.3kHz 85Hz
VESA/75 800 × 600 46.875kHz 75Hz
VESA/85 800 × 600 53.67kHz 85Hz
VESA/75 1024 × 768 60.02kHz 75Hz
VESA/85 1024 × 768 68.6kHz 85Hz
VESA/60 1280 × 1024 64.0kHz 60Hz
1 5
6
10
11 15
15 - Pin Color Display Signal Cable
PIN NO. DESCRIPTION PI N NO. DESCRIPTION
1. Red 9. NC
2. Green 10. Ground
3. Blue 11. Monitor Ground
4. Ground 12. DDC-Serial Data
5. Ground 13. H-Sync
6. R-Ground 14.
V-Sync / ∗V-Clk
7. G-Ground 15. DDC-Serial Clock
8. B-Ground
∗
For DDC
FACTORY PRESET TIMING TABLE
CONNECTOR PIN ASSIGNMENT
