4
POWERCORD
Power Source:
1. Make sure the power cord is the correct type that required in your area.
2. This monitor has a universal power supply that allows operation in either
100/120V AC or 220/240V AC voltage area ( No user adjustment is
required. )
3. Connect the power cord into your monitor’s power input socket, and then
plug the other end into a 3-pin AC power outlet. The power cord may be
connected to either a wall power outlet or the power outlet socket on your
PC, depending on the type of power cord supplied with your monitor.
VIDEO CABLE
Connecting the Video Cable: the monitor comes with a built-in video cable.
Plug the signal cable′s 15-pin connector into the computer's video port and
tighten the two screws on the cable connector. (see figure 2)
Connecting the Power Cord: Plug the power cord into the monitor's AC
power socket. Then plug the power cord into a grounded AC outlet or UL-
approved power strip or the power output socket on your PC.
Caution: If the AC outlet is not grounded, install the proper grounding
adapter (not supplied).
Connecting the Audio Cable ( 7VlrA/7VlrA+ only ): Plug audio cable
between the computer multi-media (or sound) card's audio output and
monitor's audio input.
Connecting the DC Power Cable ( 7VlrA/7VlrA+ only ): Plug DC power
cable between monitor to swivel base for audio power
7Vlr/7Vlr+ 7VlrA/7VlrA+

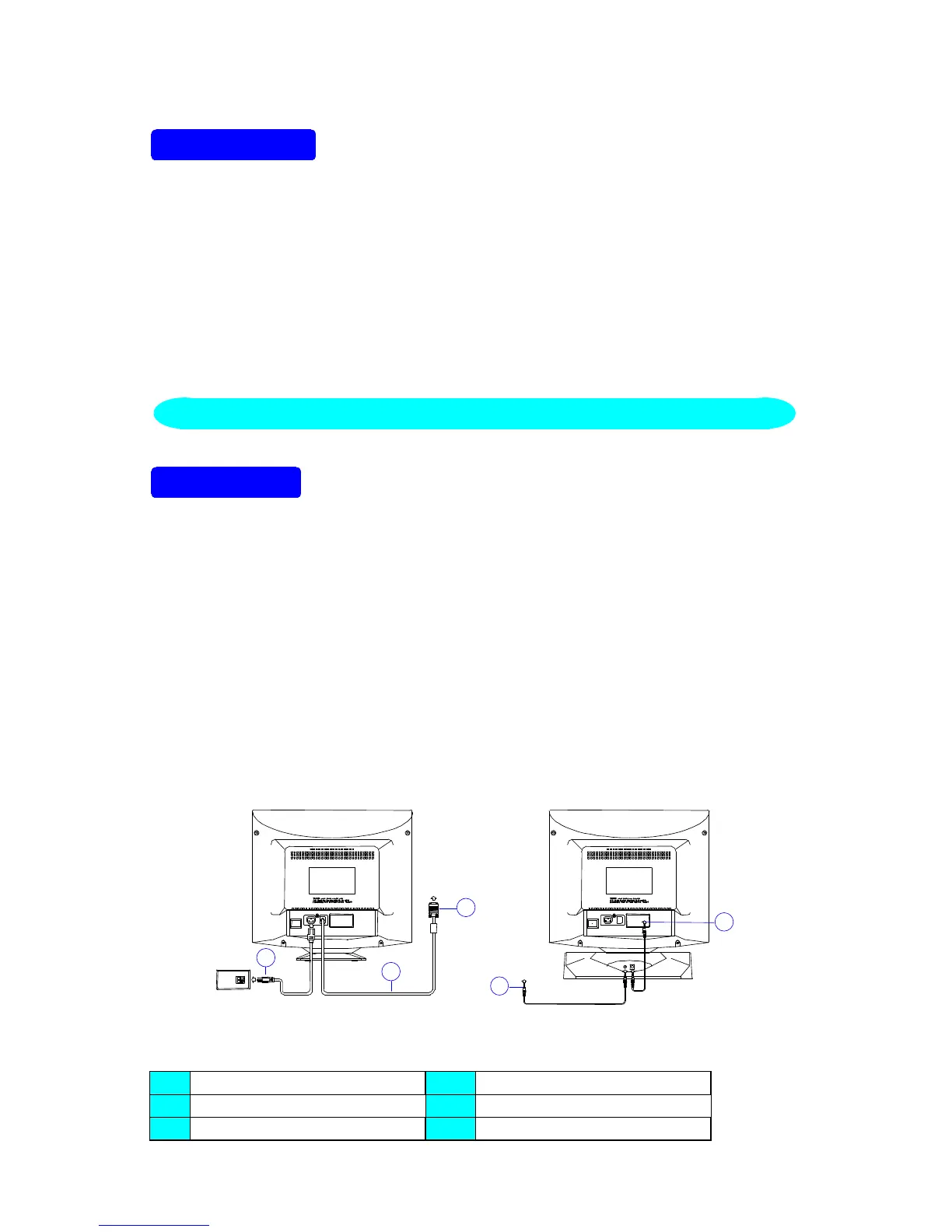

Figure 2 Connecting Cables
1. Power Cord 4. PC Audio Output
2. Signal Cable 5. DC Output
3. VGA Card Adapter
CONTROLS AND CONNECTORS
