7
1. Press the Shuttle Knob or OSD Key to make the OSD window appear.
See figure 4.
2. Rotate the Shuttle Knob to select the desired function. See figure 4.
3. Press the Shuttle Knob again to select the function that you want to
adjust.
4. Rotate the Shuttle Knob to change the settings of the current function.
5. When the OSD window is active, it shows the input signal timing. The
"H" stands for the horizontal frequency and "V" for the vertical frequency.
6. To exit and save, either press the OSD Key, select the exit function, or
leave the monitor alone for 10 seconds. If you want to adjust any other
function, repeat steps 2-4.
70
V: 85Hz
9300
6500
H: 68.8KHz
Contrast

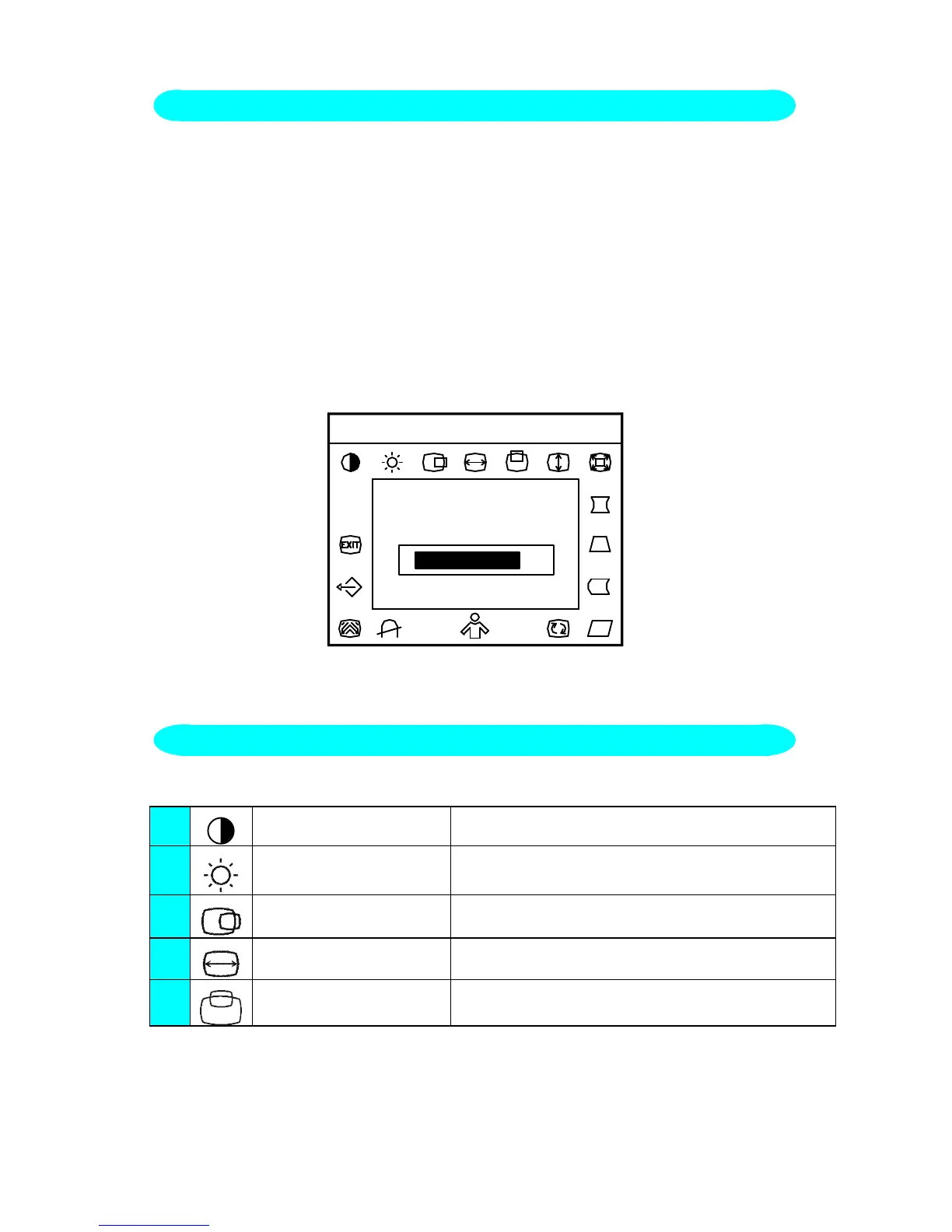

Figure 4 The OSD Message
The description for function control LEDS
1. CONTRAST Adjust the picture contrast.
2. BRIGHTNESS Adjust the picture brightness.
3.
H- CENTER
Adjust the horizontal position of the picture.
4. H- SIZE Adjust the pictures horizontal size.
5. V- CENTER Adjust the vertical position of the picture.
ADJUSTING THE PICTURE
HOW TO ADJUST A SETTING
