4. Input/Output Specification

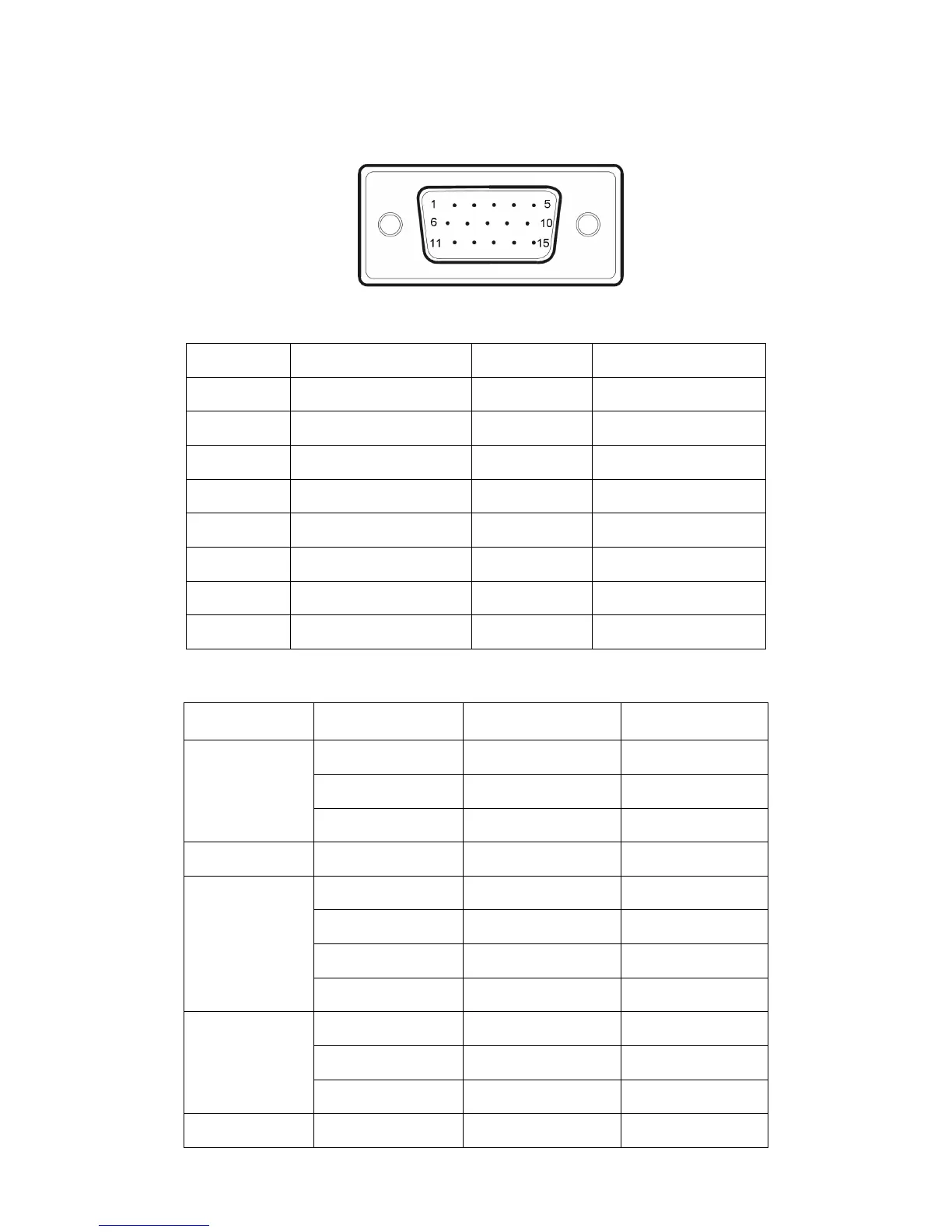

4.1 Input Signal Connector
D-Sub 15pin Connector
15-Pin Color Display Signal Cable
PIN NO. DESCRIPTION PI N NO. DESCRIPTION
1. Red 9. +5V/Sense(+5V)
2. Green 10. Monitor Gnd
3. Blue 11. Logic Gnd
4. Logic Gnd 12. DDC Serial Data
5. Detect cable 13. H-Sync
6. Red Gnd 14. V-Sync
7. Green Gnd 15. DDC Serial Clock
8. Blue Gnd
4.2 Factory Preset Display Modes
STANDARD RESOLUTION
HORIZONTAL
FREQUENCY(KHz)
VERTICAL
FREQUENCY(Hz)
VGA
640×480 @60Hz 31.469 59.940
640×480 @72Hz 37.861 72.809
640×480 @75Hz 37.500 75.000
Dos-mode 720×400 @70Hz 31.469 70.087
SVGA
800×600 @56Hz 35.156 56.250
800×600 @60Hz 37.879 60.317
800×600 @72Hz 48.077 72.188
800×600 @75Hz 46.875 75.000
XGA
1024×768 @60Hz 48.363 60.004
1024×768 @70Hz 56.476 70.069
1024×768 @75Hz 60.023 75.029
WXGA 1366x768 @60HZ 47.765 59.85
