4.3. Panel Specification
4.3.1 TPM185B1-WX3400:
4.3.1.1 Overview
The TPM185B1-WX3400 Rev: 3550 model is a 18.5 inch wide TFT-LCD module with LED Backlight Unit and
30-pin 1ch-LVDS interface. This module supports 1366 x 768 WXGA (16:9 wide screen) mode and displays up to
16.7 million colors. The converter module for the Backlight Unit is not built in.
4.3.1.2 Features
- Contrast ratio 1000:1
- Response time 5ms.
- Brightness 200nits (typ.)
- WXGA (1366 x 768 pixels) resolution.
- DE (Data Enable) only mode.
- LVDS (Low Voltage Differential Signaling) interface.
- ROHS compliance.

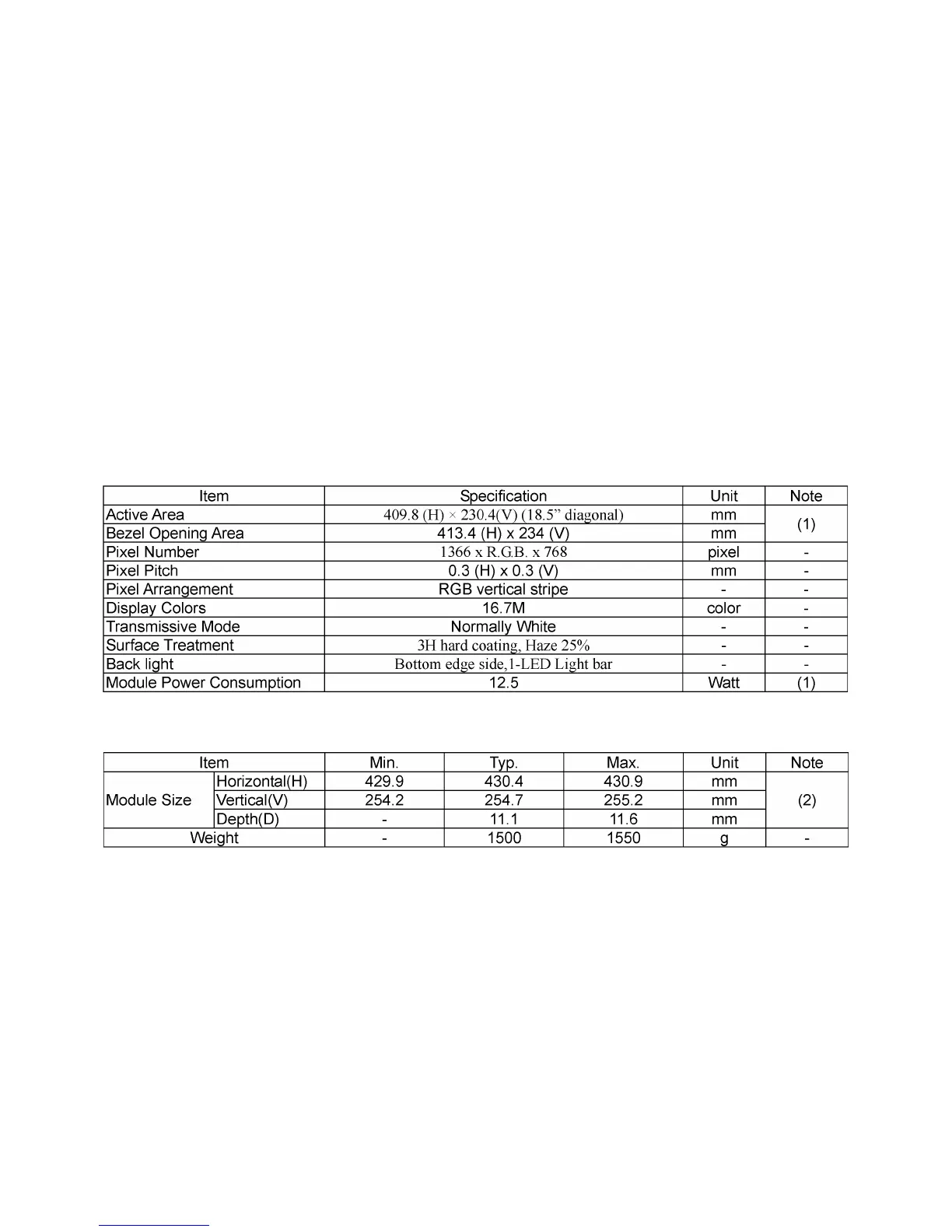

4.3.1.3 GENERAL SPECIFICATI0NS
4.3.1.4 MECHANICAL SPECIFICATIONS
Note (1) Please refer to sec. 3.1 & 3.2 in this document for more information of power consumption
Note (2) Please refer to the attached drawings for more information of front and back outline dimensions.
