14
4.3.2 HM185WX1-400:
4.3.2.1 Overview
HM185WX1-400 is a color active matrix TFT LCD module using amorphous silicon TFT's (Thin Film Transistors) as
an active switching devices. This module has a 18.5 inch diagonally measured active area with WXGA resolutions
(1366 horizontal by 768 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged
in vertical stripe and this module can display 16.7M colors. The TFT-LCD panel used for this module is adapted for a
low reflection and higher color type.
4.3.2.2 Features
- LVDS Interface with 1 pixel / clock
- High-speed response
- Low power consumption
- 6-bit (Hi-FRC) color depth, display 16. 7M colors
- Incorporated edge type back-light (One Light Bar)
- High luminance and contrast ratio, low reflection and normal viewing angle
- DE (Data Enable) only
- RoHS

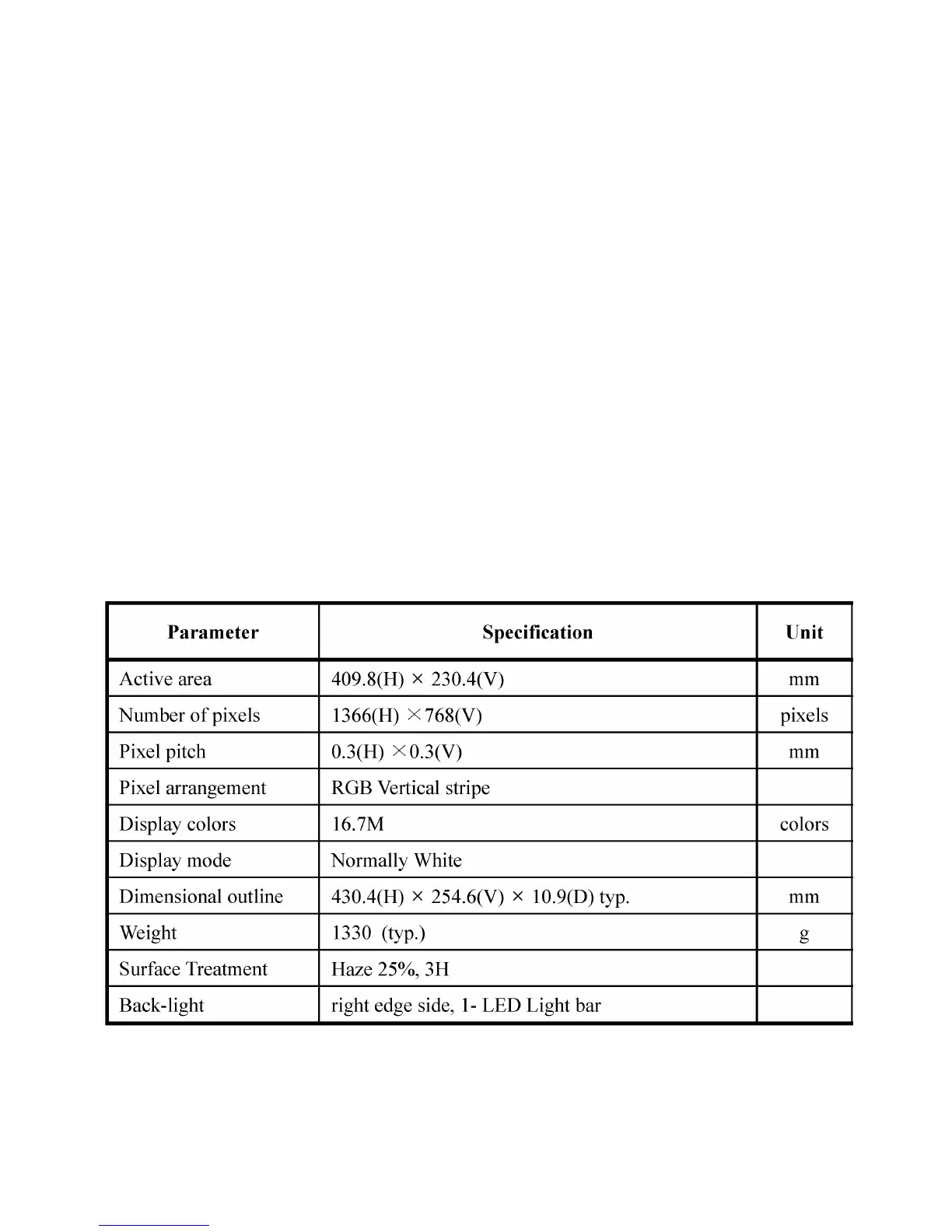

4.3.2.3 GENERAL SPECIFICATI0NS
The followings are general specifications at the model HM185WX1-400.
