AOC U2790VQ User Manual

30

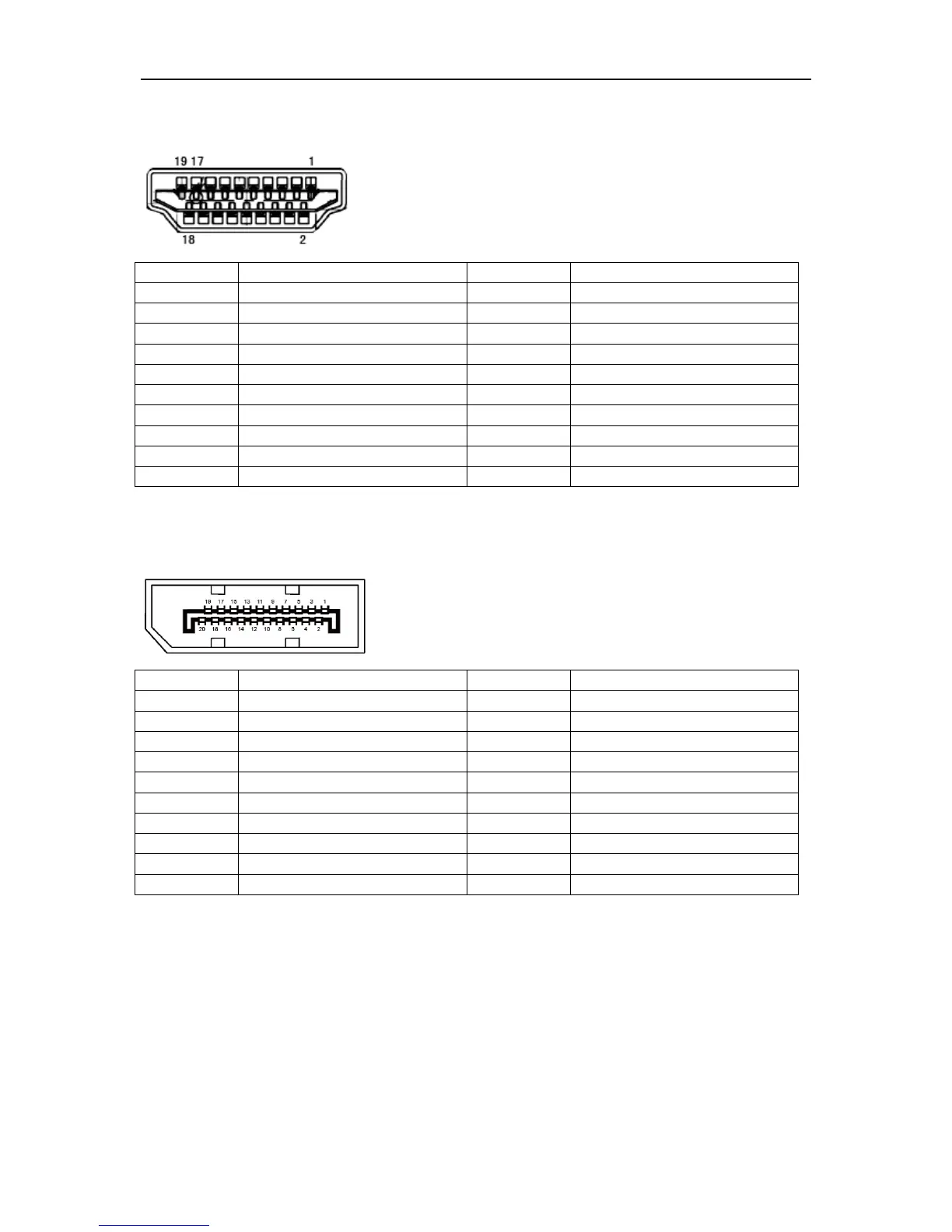

Pin Assignments
19-Pin Color Display Signal Cable
Pin No.
Signal Name
Pin No.
Signal Name
1
TMDS Data 2+
11
TMDS Clock Shield
2
TMDS Data 2 Shield
12
TMDS Clock
3
TMDS Data 2
13
CEC
4
TMDS Data 1+
14
Reserved (N.C. on device
5
TMDS Data 1Shield
15
SCL
6
TMDS Data 1
16
SDA
7
TMDS Data 0+
17
DDC/CEC Ground
8
TMDS Data 0 Shield
18
+5V Power
9
TMDS Data 0
19
Hot Plug Detect
10
TMDS Clock +
20-Pin Color Display Signal Cable
Pin No.
Signal Name
Pin No.
Signal Name
1
ML Lane 3(n)
11
GND
2
GND
12
ML Lane 0(p)
3
ML Lane 3(p)
13
CONFIG1
4
ML Lane 2(n)
14
CONFIG2
5
GND
15
AUX CH(p)
6
ML Lane 2(p)
16
GND
7
ML Lane 1(n)
17
AUX CH(n)
8
GND
18
Hot Plug Detect
9
ML Lane 1(p)
19
Return OP PWR
10
ML Lane 0(n)
20
DP PWR

AOC U2790VQ Specifications

General

3D	No
Color depth	10 bit
Pixel pitch	0.3114 x 0.3114 mm
Screen shape	Flat
Backlight type	W-LED
Pixel frequency	170 MHz
Display diagonal	27 \
Display technology	LCD
Native aspect ratio	16:9
Vertical scan range	50 - 76 Hz
Maximum refresh rate	60 Hz
Horizontal scan range	30 - 83 kHz
Supported video modes	2160p
Viewable size, vertical	336.31 mm
Contrast ratio (dynamic)	20000000:1
Contrast ratio (typical)	1000:1
Display number of colors	1.073 billion colors
Viewable size, horizontal	597.89 mm
Display brightness (typical)	350 cd/m²
Supported graphics resolutions	3840 x 2160
Certification	ISO
Product color	Black
Detachable stand	Yes
Heavy metals free	Hg (mercury), Pb (lead)
Market positioning	Business
Cable lock slot	-
Tilt angle range	-3.5 - 21.5 °
Number of OSD languages	16
Panel mounting interface	100 x 100 mm
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), CZE, DEU, DUT, ENG, ESP, FIN, FRE, ITA, JPN, KOR, POL, POR, RUS, SWE
HDMI version	1.4/2.0
DisplayPort version	1.2
Headphone connectivity	3.5 mm
Package type	Box
Package depth	185 mm
Package width	703 mm
Package height	362 mm
Package weight	6710 g
VGA cable length	1.8 m
Cables included	AC, HDMI, VGA
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	22 W
Recyclable packaging material	100 %
Mean time between failures (MTBF)	50000 h
Sustainability certificates	RoHS, EPEAT Silver, ENERGY STAR
RMS rated power	4 W

Weight and Dimensions

Depth (with stand)	199.7 mm
Width (with stand)	612.6 mm
Height (with stand)	453.2 mm
Weight (with stand)	4700 g
Depth (without stand)	45.3 mm
Height (without stand)	362.1 mm
Weight (without stand)	3000 g
