AOC V22t User Manual

50

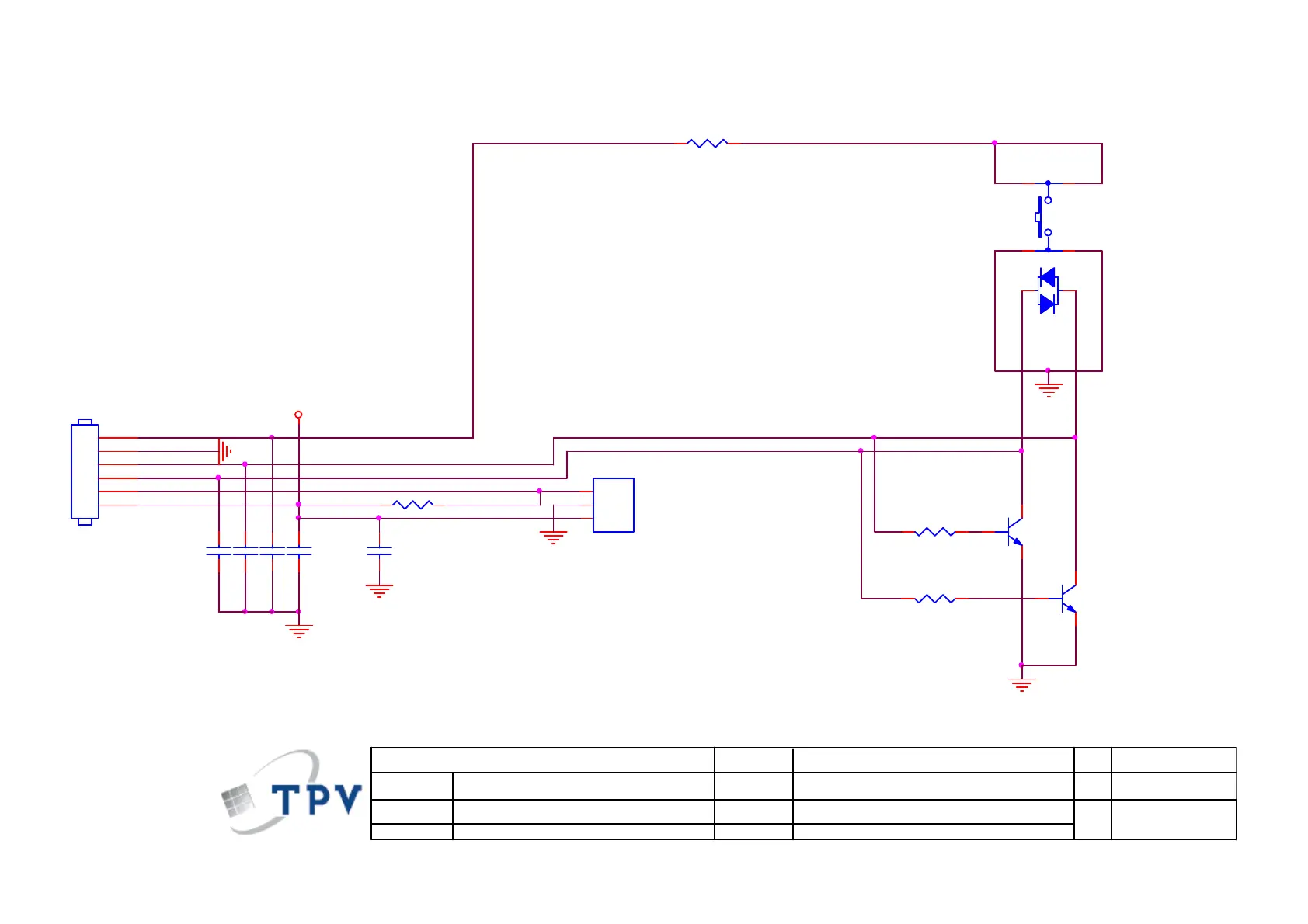

9.4 IR Board
715G3413-1
C053
100nF 16V
R051 15K 1/16W 5%
C055
10uF 16V
1
2
3
4
5
6
CN051
CONN
R052
4K7 1/16W 5%
LED_B
LED_A
R054 39K 1/16W 1%
IRRV
OUT
1
GND
2
VCC
3
U051
IRM-3638TS13F41-P
VCC_3V3
OEM MODEL Size
Rev
Date
Sheet of
TPV MODEL
PCB NAME
称爹
T P V ( Top Victory Electronics Co . , Ltd. )
Key Component
絬 隔 瓜 絪 腹 1
AOC V24t
A
11Tuesday , July 21, 2009
715G3413-1
01-IR&LED
G3413-1-X-X-1-090721
Q051
2N3904S-RTK/PS
LED_B
LED_A
KEY_ADC0
1
3 4
2
5 6
AMBER
BLUE
SW051
TACT SW+LED
VCC_3V3
C052
100nF 16V
Q052
2N3904S-RTK/PS
C051
100nF 16V
R053
4K7 1/16W 5%
C054
100nF 16V
