This motherboard supports AMDP
®
P
Athlon and Duron Socket 462 series CPU. Be careful of CPU orientation when you plug it into CPU
socket (with CPU Overheat Protection function implemented, the system will be automatically power off when the temperature of CPU
reached 97 degree, but works on AthlonXP CPU only).
Note: This picture is for example only; it may not exactly be the same motherboard.

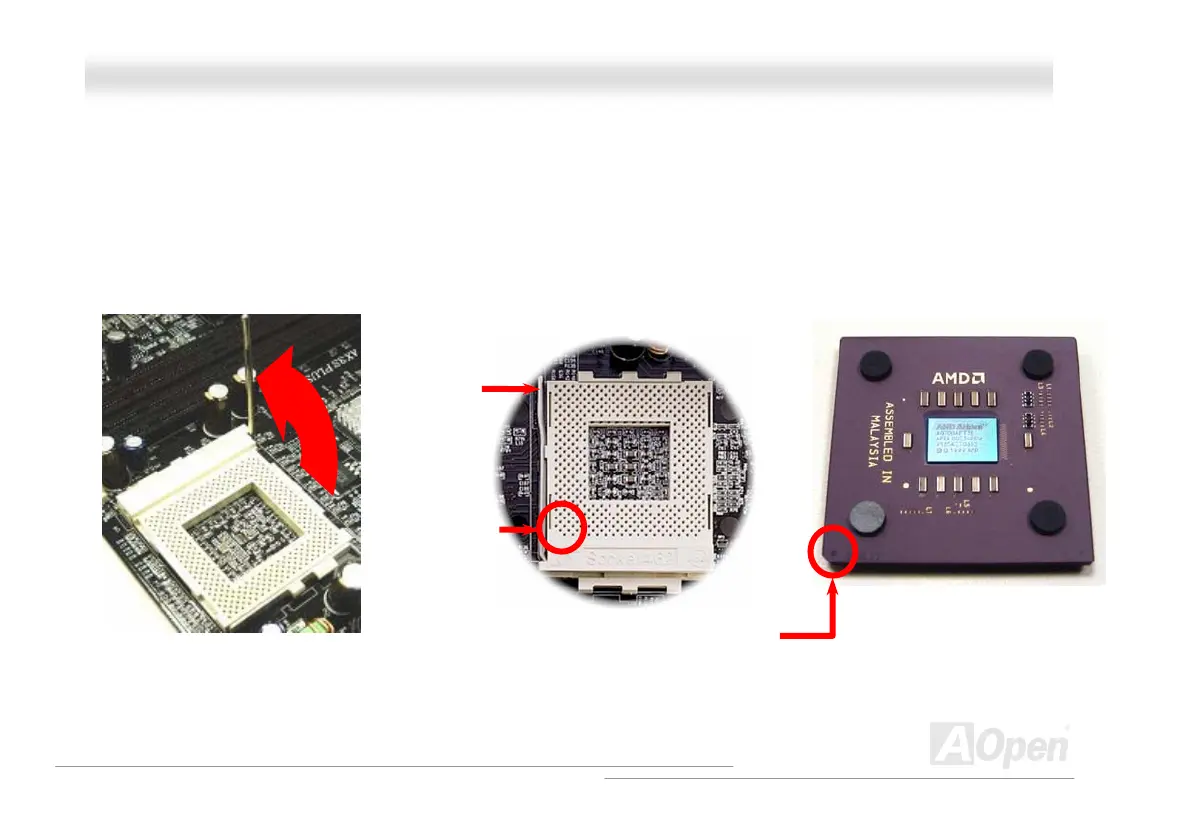

2. Locate Pin 1 in the socket and look for a black dot or cut edge on the CPU
upper interface. Match Pin 1 and cut edge, then insert the CPU into the
socket.
CPU pin 1 and
cut edge
CPU socket
Lever
1. Pull up the CPU socket lever and
up to 90-degree angle.
Black dot and
cut edge
