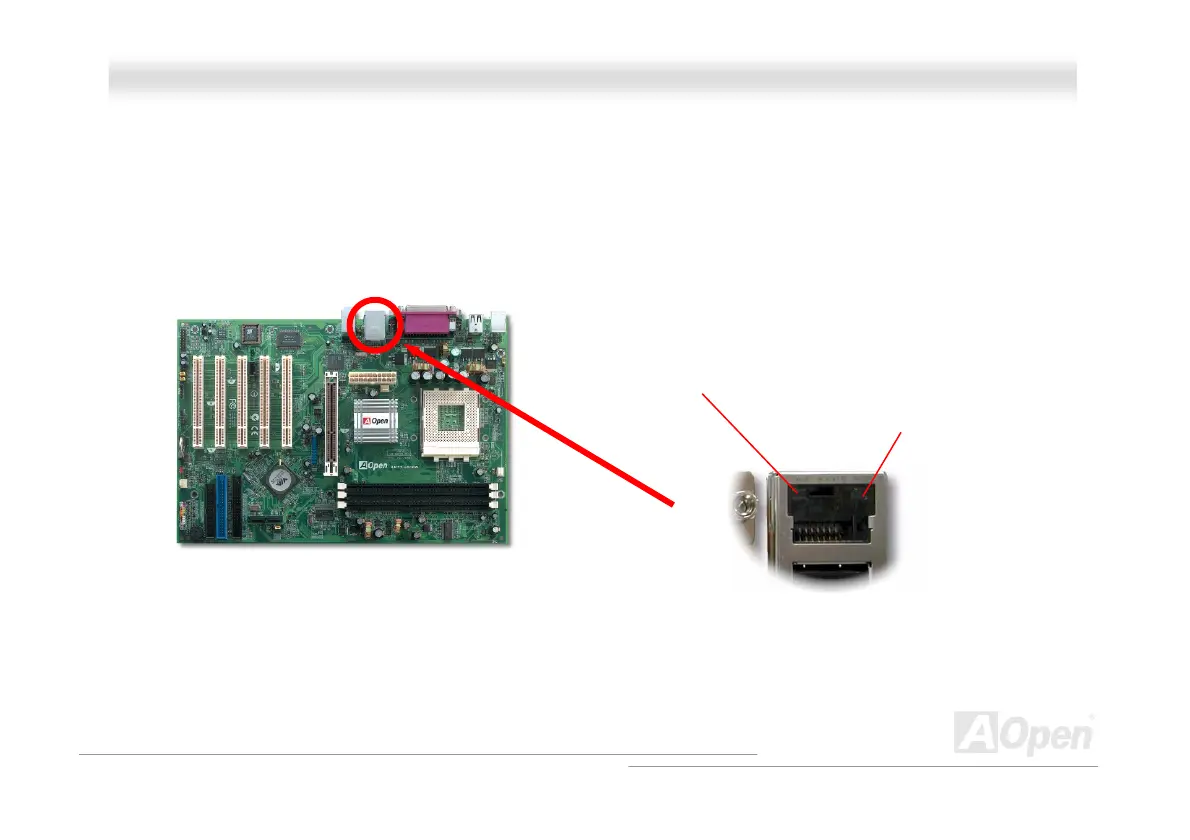

On the strength of Realtek LAN controller on board, this motherboard provides 10/100 Mbps Ethernet for office and home use.
The Ethernet RJ45 connector is located on top of USB connectors. The orange LED indicates the link mode, it lights when
linking to network. The green LED indicates the transfer mode and it lights when data is transferring in 100 Mbps. To enable or
disable this function, you may simply adjust it through BIOS.
Orange/Link
Green/Transfer
