AOpen AK77-600GN - Color Coded Back Panel

47
A
A
K
K
7
7
7
7
-
-
6
6
0
0
0
0
G
G
N
N
O
O
n
n
l
l
i
i
n
n
e
e
M
M
a
a
n
n
u
u
a
a
l
l
C
C
o
o
l
l
o
o
r
r
C
C
o
o
d
d
e
e
d
d
B
B
a
a
c
c
k
k
P
P
a
a
n
n
e
e
l
l

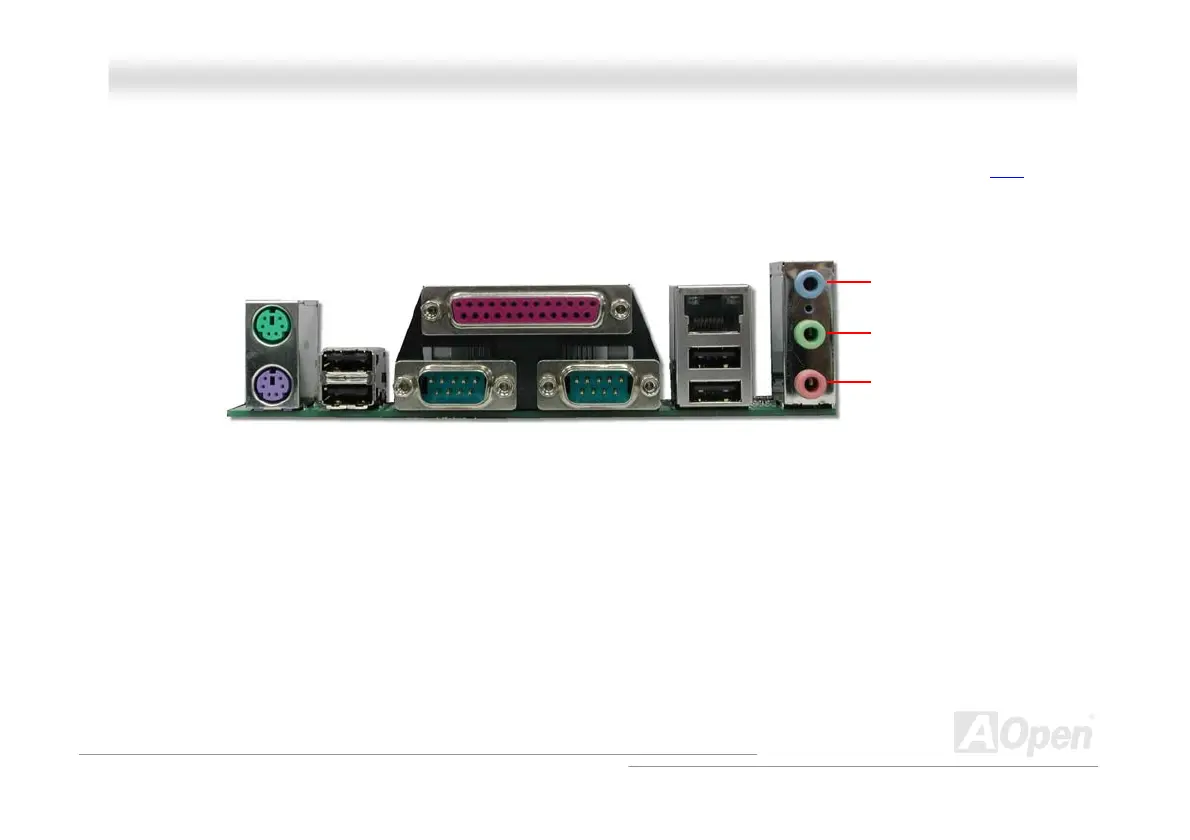

The onboard I/O devices are PS/2 Keyboard, PS/2 Mouse, serial ports COM1 and COM2, RJ45 LAN Jack, Printer, H TU USBU TH, AC97
sound. The view angle of drawing shown here is the back panel of the housing.
PS/2 Keyboard: For standard keyboard, which use PS/2 plug.
PS/2 Mouse: For PC-Mouse, which use PS/2 plug.
USB Port: Available for connecting USB devices.
Parallel Port: To connect with SPP/ECP/EPP printer.
COM1/COM2 Port: To connect with pointing devices, modem or others serial devices.
Speaker Out: To External Speaker, Earphone or Amplifier.
Line-In: Comes from the signal sources, such as CD/Tape player.
MIC-In: From Microphone.
PS/2 Mouse
Connector
PS/2 Keyboard
Connector
USB Port
(2.0)
SPP/EPP/ECP
Parallel Port
COM 1 Port COM 2 Port
RJ45 LAN Jack
USB Port
(2.0)
Line-In
Speaker Out
MIC-In
