Apache RTR 180 User Manual

1.
Cylinder block : M7011310
2.
Cylinder bore dia increased from 62 mm 62.5
.
3.
Can be identified by "casting boss"
4.
Not interchangeable with Existing Apache RTR 160 cc vehicles
5.
Cylinder block & Piston kit will be serviced in spares under
part No.N9323000
Casting boss
PISTON KIT
1.
Piston Kit std : N9020140
2.
Piston dia increased to uit increa . ed bore dia of 180 cc
cylinder block.
3.
Piston crown top surface (Top position) edge is changed from
taper to flat.
4.
Not interchang able with Existing Apache / RTR 160 cc
vehicles.
5.
Ring set piston will be serviced under part No. N9020150
6. Ring set can be dentified by "USHA 50" engraved on
the top surface of both the rings.
CAR URETTOR ASSEMBLY
Red in
1.
Carburettor Assembly : N9041400
colour
2.
New Part to match increased engine capacity (180 cc)
3.
Not interchangeable to RTR 160cc.
4.
For Child Part details refer Page No 5 of this manual.
N9041400
PIPE COMPLETE INTAKE
1. Pipe complete intake : M7040730
New
Old
2.
ID increased to suit increased capacity (180 cc). No change in
ID at carburettor clamping area
3.
The modified part can be used with existing RTR
160cc vehicles and hence no change in part number.
However the old part available at dealership
under same part number must be used only for
Smaller OD
RTR 160 cc. Do not use the old Part in RTR 180 cc.
Bigger OD
4.
Only new part will be serviced in spares.
-14-

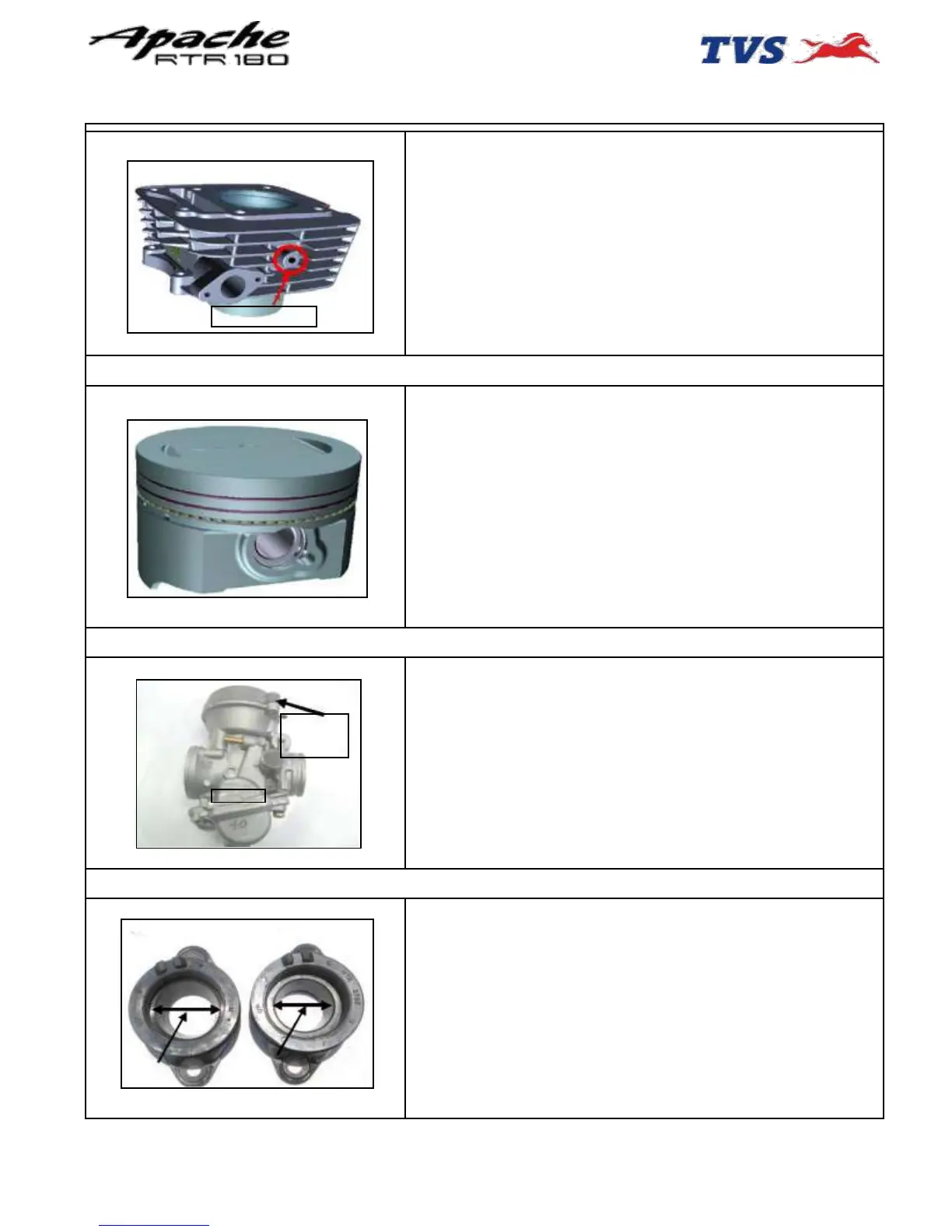

10. PARTS CHANGE DETAILS
CYLINDER BLOCK

Apache RTR 180 Specifications

General

Engine Displacement	177.4 cc
Engine Type	4-stroke, Single Cylinder
Max Torque	15.5 Nm @ 7000 rpm
Fuel System	Carburetor
Cooling System	Air Cooled
Transmission	5-Speed
Front Brake	Disc
Fuel Tank Capacity	12 liters
Bore x Stroke	62.5 mm x 57.8 mm
Compression Ratio	9.5:1
Front Suspension	Telescopic Forks
Front Tyre	90/90-17
Rear Tyre	110/80-17
Overall Length	2085 mm
Overall Width	730 mm
Wheelbase	1326 mm
Ground Clearance	165 mm
Seat Height	800 mm
Max Power	17.03 PS @ 8500 rpm
Ignition	Digital
Starting	Electric Start
Clutch	Wet multi-plate
Frame Type	Double cradle
