Apache RTR 180 User Manual

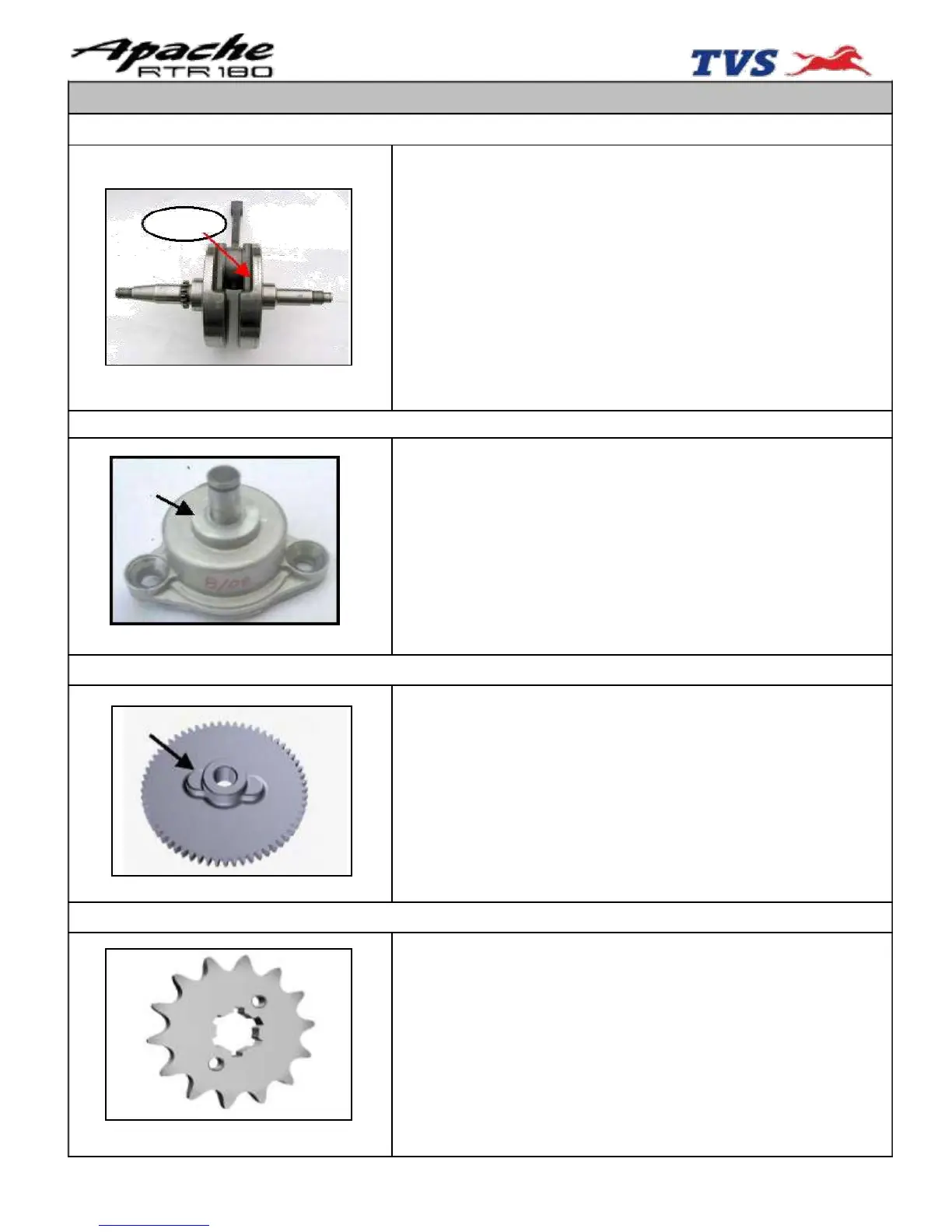

10. PARTS CHANGE DETAILS
CRANKSHAFT ASSEMBLY
1.
Crankshaft assembly : N9020120
2.
New part, changed due to 180 cc Engine assembly.
U 180
3.
Center distance between pin connecting rod big end and
crankshaft is increased due to change in stroke length &
Crank web OD is reduced from dia 108 to dia 105
4.
Can be identified by "U180" engraved at clutch side web's
inside face
5.
Not interchangeable with Apache RTR 160 cc vehicles.
Can be interchanged with Apache 150vehi les
.
due to same stroke length. Apa he rank shaft assembly
serviced under part No M7020150 if available at dealership
should not be used in RTR 180 cc
NexGenBikes-15-
OIL PUMP ASSEMBBLY
1.
Oil pump assembly : N9080240
Step
2. New part
3.
Oil pump capacity incr as d by 1.2 Litre per minute for better
lubrication
3.
Oil pump alone without the driven gear is not interchangeable
with existing Apache / RTR 160 cc vehicles. Can be
interchanged as a set (Oil pump & Gear oil pump driven)
4.
Can be dent f ed by the step on the body of the oil pump
assembly.
GEAR OIL PUMP DRIVEN
Step
1.
Gear oil pump driven : M7081220
2.
New part to match the modified oil pump.
3.
Gear oil pump driven alone without the oil pump is not
interchangeable with existing Apache / RTR 160 cc vehicles.
Can be interchanged as a set (Oil pump & Gear oil pump
driven).
4.
Can be identified by the step on the gear oil pump driven.
ENGINE SPROCKET
14 T
1.Engine sprocket : N9080250
2.
Engine sprocket teeth increased from 13T to 14 T.
3.
It is not interchangeable with old vehicles.

Apache RTR 180 Specifications

General

Engine Displacement	177.4 cc
Engine Type	4-stroke, Single Cylinder
Max Torque	15.5 Nm @ 7000 rpm
Fuel System	Carburetor
Cooling System	Air Cooled
Transmission	5-Speed
Front Brake	Disc
Fuel Tank Capacity	12 liters
Bore x Stroke	62.5 mm x 57.8 mm
Compression Ratio	9.5:1
Front Suspension	Telescopic Forks
Front Tyre	90/90-17
Rear Tyre	110/80-17
Overall Length	2085 mm
Overall Width	730 mm
Wheelbase	1326 mm
Ground Clearance	165 mm
Seat Height	800 mm
Max Power	17.03 PS @ 8500 rpm
Ignition	Digital
Starting	Electric Start
Clutch	Wet multi-plate
Frame Type	Double cradle
