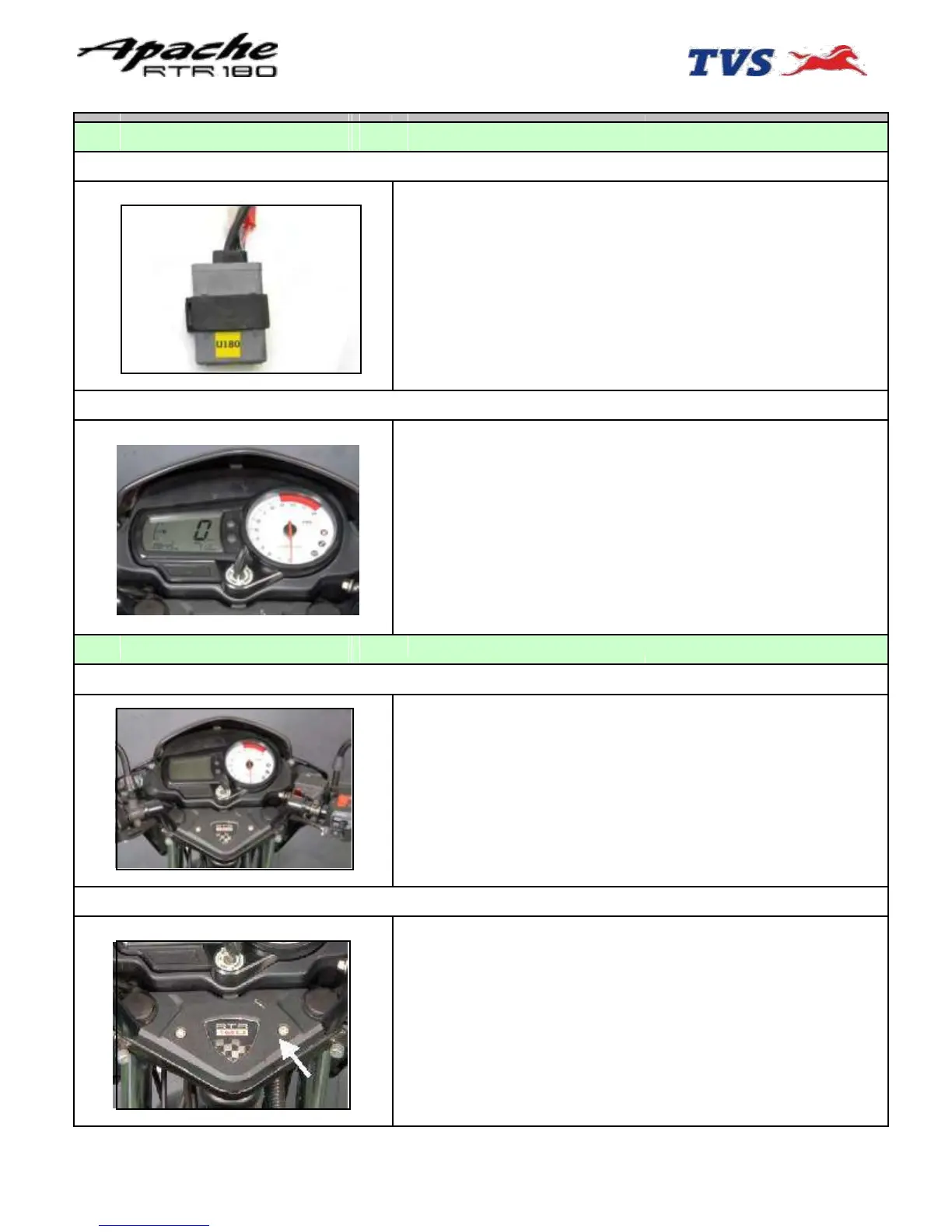

Apache RTR 180 User Manual

ELECTRICALS
TCI UNIT
1.
TCI Unit : N9060430
2.
Ignition timing modified to suit 180 cc.
3.
Can be identified by the body colour (Green in c l ur).
4.
Not interchangeable with existing Apache / RTR 160 vehicles.
DIGITAL SPEEDOMETER
1.
Digital speedometer : N9222060
2.
Speedometer dial colour chang d to white colour. Illumination
changed from orange color to blue color. (Other functions of
speedometer are same as Apache RTR 160cc vehicles).
3.
Can be interchanged with Apache RTR 160 cc vehicles.
CHASSIS
HANDLE AR ASSEMBLY
1.
Ha dlebar complete LH : N9151400
Ha dlebar complete RH : N9151390
2.
Ha dle bar complete LH & RH finish changed to black colour
3.
Can be interchanged with existing RTR 160 cc vehicles
only as a set (Handle bar LH & RH together) due to colour
change.
COVER HANDLE BAR COMPLETE
1.
Cover handle bar complete : N9151380
2.
Cover handle bar complete changed to black colour &
Emblem handle bar changed from RTR 160 to RTR 180.
3.
Though this cover handle bar complete can functionally
be fitted on RTR 160, it is not recommened due to change in
colour & Emblem..
4.
Emblem handle bar will be serviced under this part
No. N9214830
-16-
10. PARTS CHANGE DETAILS

Apache RTR 180 Specifications

General

Engine Displacement	177.4 cc
Engine Type	4-stroke, Single Cylinder
Max Torque	15.5 Nm @ 7000 rpm
Fuel System	Carburetor
Cooling System	Air Cooled
Transmission	5-Speed
Front Brake	Disc
Fuel Tank Capacity	12 liters
Bore x Stroke	62.5 mm x 57.8 mm
Compression Ratio	9.5:1
Front Suspension	Telescopic Forks
Front Tyre	90/90-17
Rear Tyre	110/80-17
Overall Length	2085 mm
Overall Width	730 mm
Wheelbase	1326 mm
Ground Clearance	165 mm
Seat Height	800 mm
Max Power	17.03 PS @ 8500 rpm
Ignition	Digital
Starting	Electric Start
Clutch	Wet multi-plate
Frame Type	Double cradle
