Apache RTR 180 User Manual

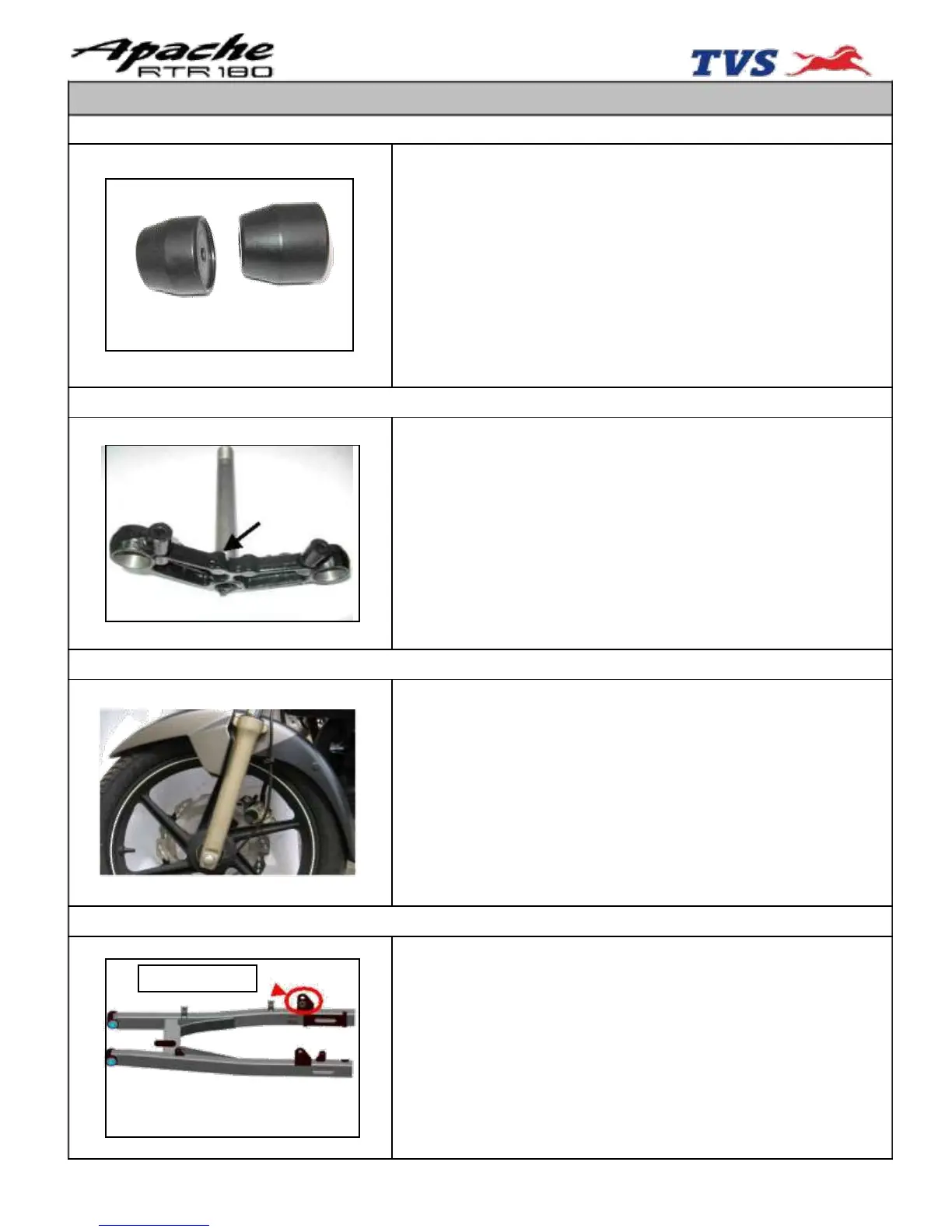

DAMPER WEIGHT HANDLE BAR
1.
Damper weight handle bar : N9150770
2.
Longer and heavier than the RTR 160 damper to reduce handle
bar vibration. This modified damper will also be shortly
introduced in RTR 160cc.
3.
The modified part can be interchanged as a set (LH & RH side)
on existing RTR 160 vehicles.
4.
Incase any necessity arise to change both LH and RH, replace
Old
New
with the modified damper (180 cc).
5.
However both old and modified damper will be serviced for
replacing LH or RH side individually on old vehi les.
LOWER BRACKET COMPLETE
1.
Lower bracket complete : N9100460
2.
No change in part no.
Pip
3. Height of the brack
t for fork holding increased for better life.
4.
Can be identified by pip provid d the lower bracket complete.
5.
The modified part can be interchangeable with existing Apache /
RTR 160 vehicles.
6.
Only mod f ed part will be serviced in spares.
LEG ASSEM LY FRONT FORK
1.
Leg assembly front fork LH : N91009608R
Leg assembly front fork RH : N91009708R
Tube outer LH
: N91008208R
Tube outer RH
: N91008708R
2.
Fork outer tube finish changed to golden yellow colour.
3.
Though this tube outer RH & LH can be functionally fitted
on RTR 160, it is not recommended due to change in colour &
aesthetic reasons.
4.
Front fork assembly will be serviced in spares under
part No. N91010808R
SWINGARM COMPLETE
Modifed bracket
1.
Swingarm complete : N9092230 (with bush)
2.
Swingarm length increased to suit modified wheel base and
better performance.
3.
Can be identified by modified shockabsorber mounting bracket.
4.
Not interchangeable with existing RTR 160 vehicles.
-17-
10. PARTS CHANGE DETAILS

Apache RTR 180 Specifications

General

Engine Displacement	177.4 cc
Engine Type	4-stroke, Single Cylinder
Max Torque	15.5 Nm @ 7000 rpm
Fuel System	Carburetor
Cooling System	Air Cooled
Transmission	5-Speed
Front Brake	Disc
Fuel Tank Capacity	12 liters
Bore x Stroke	62.5 mm x 57.8 mm
Compression Ratio	9.5:1
Front Suspension	Telescopic Forks
Front Tyre	90/90-17
Rear Tyre	110/80-17
Overall Length	2085 mm
Overall Width	730 mm
Wheelbase	1326 mm
Ground Clearance	165 mm
Seat Height	800 mm
Max Power	17.03 PS @ 8500 rpm
Ignition	Digital
Starting	Electric Start
Clutch	Wet multi-plate
Frame Type	Double cradle
