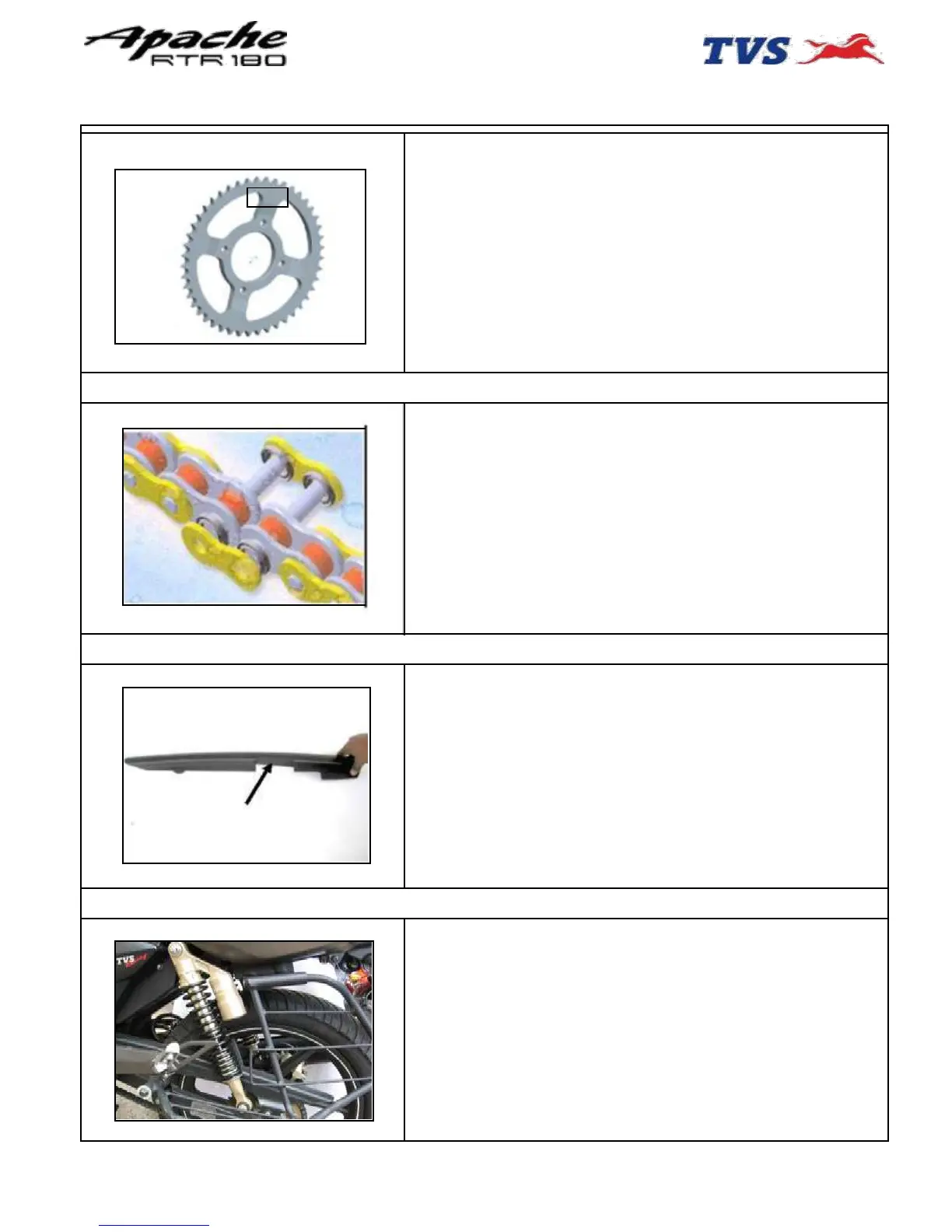

Apache RTR 180 User Manual

1.
Rear sprocket : N9112570
2. Rear sprocket teeth increased from 44 T to 46 T for better
46-T
ride feel performance
3.
Not interchangeable with existing RTR 160 vehicles.
4.
Can be identified by the 46T mark engraved on the surface of the
sprocket.
5.
Drum sprocket assembly will be serviced under
part No. N9112580
CHAIN ASSEMBLY
.
NexGenBikes
1.
Chain assembly : N9112830
2.
Chain assembly length increa ed from 124 L to 130 L.
to match longer wheel base and modified sprocket teeth.
3.
Servicing proc dure for O ring chain is same as exlained
Apache RTR r fr sh 160 cc (R fer SER.INF / APACHE
RTR - REVISION 1). Aft r v ry water servicing Cleaning &
lubrication the 'O' - Ring chain if necessary.
4.
Not interchangeable with existing RTR 160 vehicles.
CHAIN COVER
1.
Chain cover : N9091700
2.
Chain cover is modified with releif cut to suit modified
wheel assembly.
3.
The modified part can be used with existing RTR 160cc vehicles
a d hence no change in part number. However the old part
Cut provid
ed
available at dealership under same part number must be
used only for RTR 160 cc. Do not use the old Part in
RTR 180 cc.
4.
Only new part will be serviced in spares.
SHOCK ABSORBER
1. Shock Absorber LH : N9092250
Shock Absorber RH : N9092260
2.
Shock absorber body colour changed to golden yellow for better
aesthetics & the Spring rating is modified for better performance.
3.
Not interchangeable with existing RTR 160 vehicles.
-18-
10. PARTS CHANGE DETAILS
REAR SPROCKET

Apache RTR 180 Specifications

General

Engine Displacement	177.4 cc
Engine Type	4-stroke, Single Cylinder
Max Torque	15.5 Nm @ 7000 rpm
Fuel System	Carburetor
Cooling System	Air Cooled
Transmission	5-Speed
Front Brake	Disc
Fuel Tank Capacity	12 liters
Bore x Stroke	62.5 mm x 57.8 mm
Compression Ratio	9.5:1
Front Suspension	Telescopic Forks
Front Tyre	90/90-17
Rear Tyre	110/80-17
Overall Length	2085 mm
Overall Width	730 mm
Wheelbase	1326 mm
Ground Clearance	165 mm
Seat Height	800 mm
Max Power	17.03 PS @ 8500 rpm
Ignition	Digital
Starting	Electric Start
Clutch	Wet multi-plate
Frame Type	Double cradle
