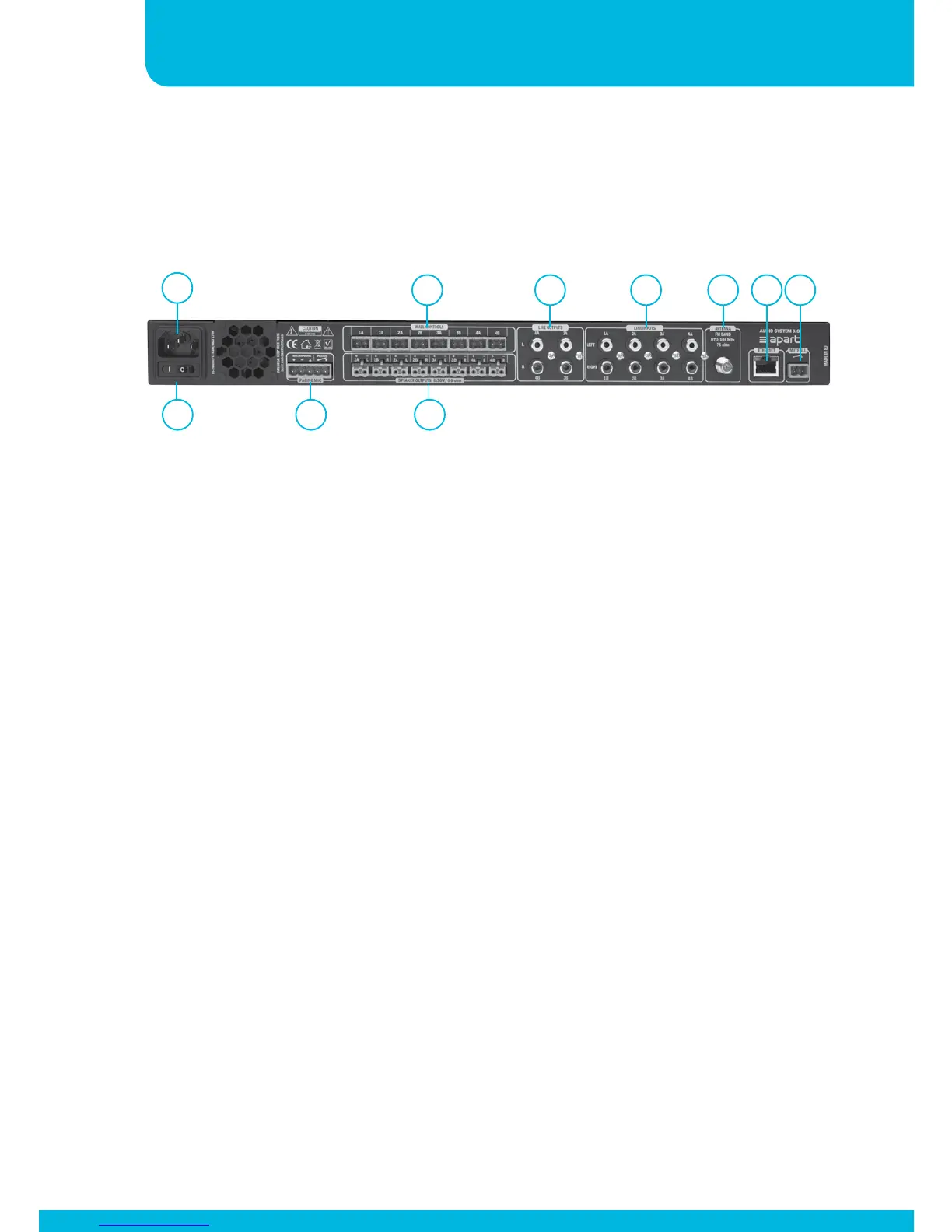

Rear panel
1. Power inlet: Connect the power cord here.
2. Power switch: Power the unit on and off.
3. Paging mic: Connection to MICPAT-D. A microphone balanced
input is provided with a contact closure.
4. The wall controls (DIWAC): Only one control per connection
is allowed, resulting in a maximum of 8 wall controls per
AUDIOSYSTEM8.8. The DIWAC may not be daisy chained.
5. Amplifiers: There are 8 class D amplifiers in the
AUDIOSYSTEM8.8. Speakers are connected with the female
euroblocks. Each output is protected against short circuit,
thermal overload and DC error.
6. Line outputs: These are copies of amplifier outputs 3A, 3B, 4A
and 4B. Used for additional power amplifiers or 100V amplifiers.
7. Line inputs: The AUDIOSYSTEM8.8 has 8 audio line inputs,
which can be configured as 4 stereo inputs or 8 mono inputs.
1
2 3 5
4 6 7 8 9 10
