APC 5000VA - Page 40

40
PRESENTATION

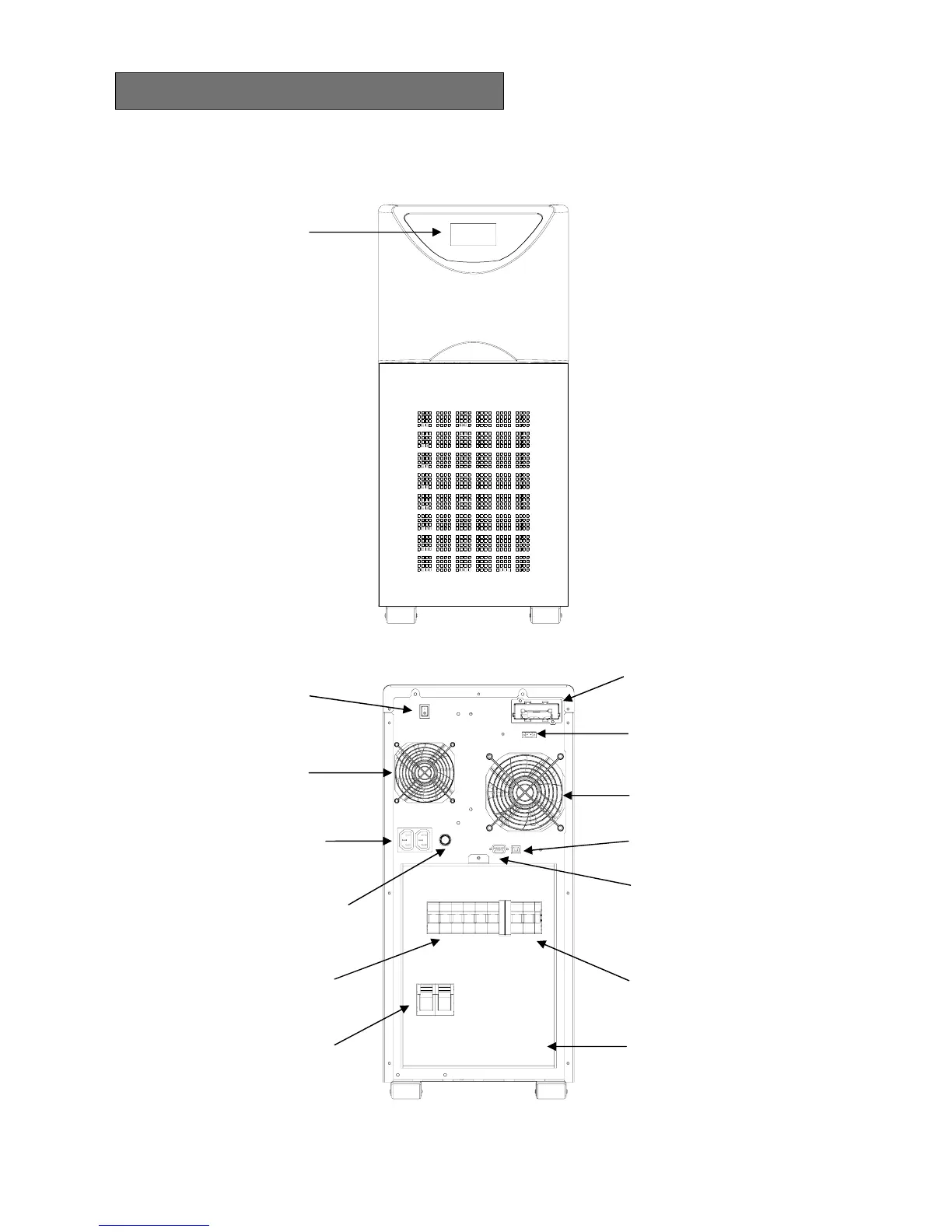

UPS VIEWS
Manual bypass
switch
Main switch
Rear view
Cooling fan
RS232 communication port
USB communication port
Cooling fan
IEC 10 A
Power share
sockets
Removable back-pack
Power share fuse
COMUNICATION SLOT
(for expansions)
Remote emergency power off
(R.E.P.O.)
Display
Front view
Battery fuse
Input and output
switches
