52
USE

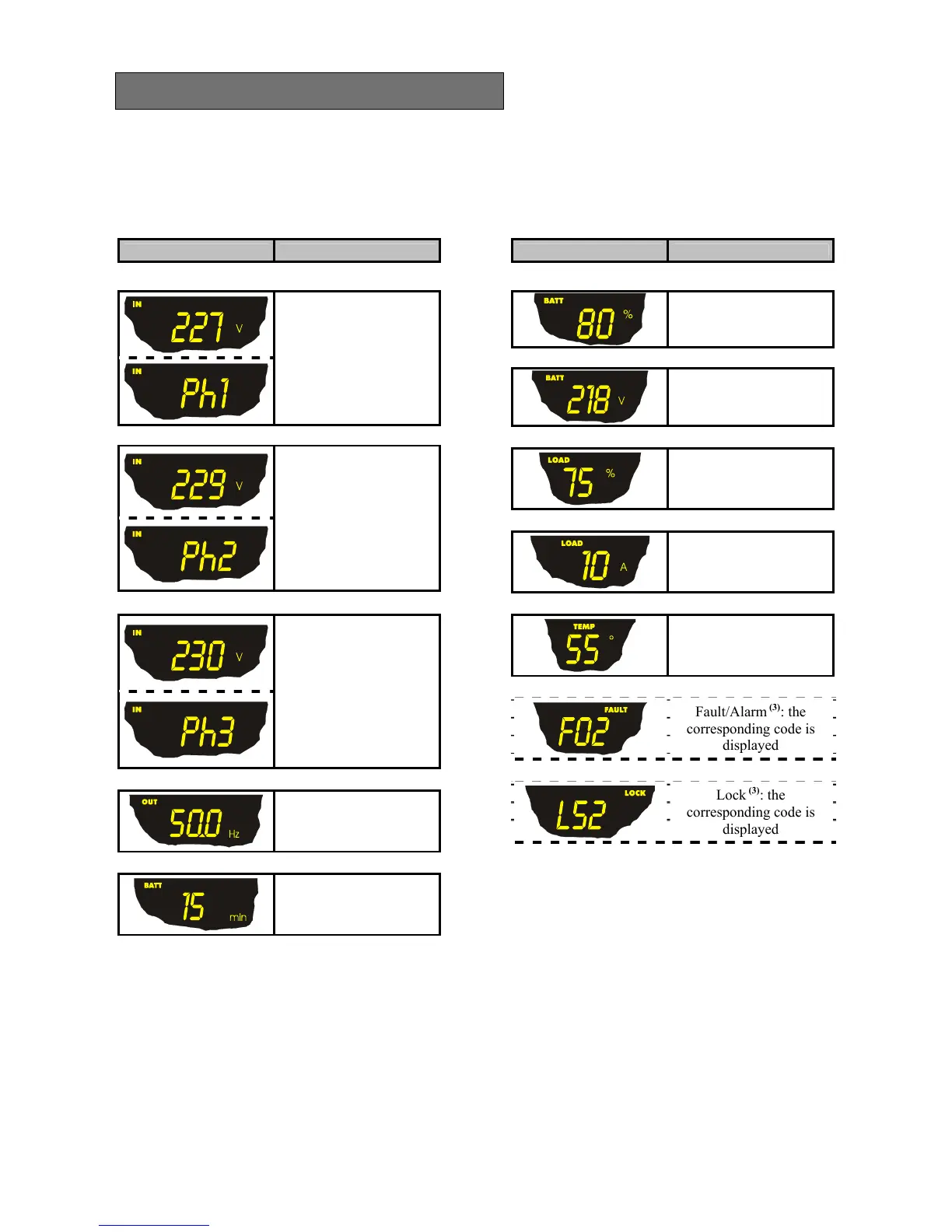

Three-phase connection
Some examples are shown below:
(1)
The values shown in the images in the table are purely indicative.
(2)
Alternative indication Phase No./Voltage.
(3)
The FAULT/LOCK codes can only be displayed if they are active (i.e., if there is a fault/alarm or a lock).
GRAPHIC EXAMPLE
(1)
DESCRIPTION
Voltage phase 1
(2)
Voltage phase 2
(2)
Voltage phase 3
(2)
Output voltage frequency
Residual battery back up
time
GRAPHIC EXAMPLE
(1)
DESCRIPTION
Percentage of battery
charge
Total battery voltage
Percentage of the applied
load
Current absorbed by the
load
Temperature of the
cooling system for the
UPS internal electronics
Fault/Alarm
(3)
: the
corresponding code is
displayed
Lock
(3)
: the
corresponding code is
displayed
