APC GALAXY 5000 - External Bypass Cabinet Connections (150 kVA)

34001813EN/AE - Page 28
2. Installation
2.9 Connection of the 150 kVA external bypass cabinet

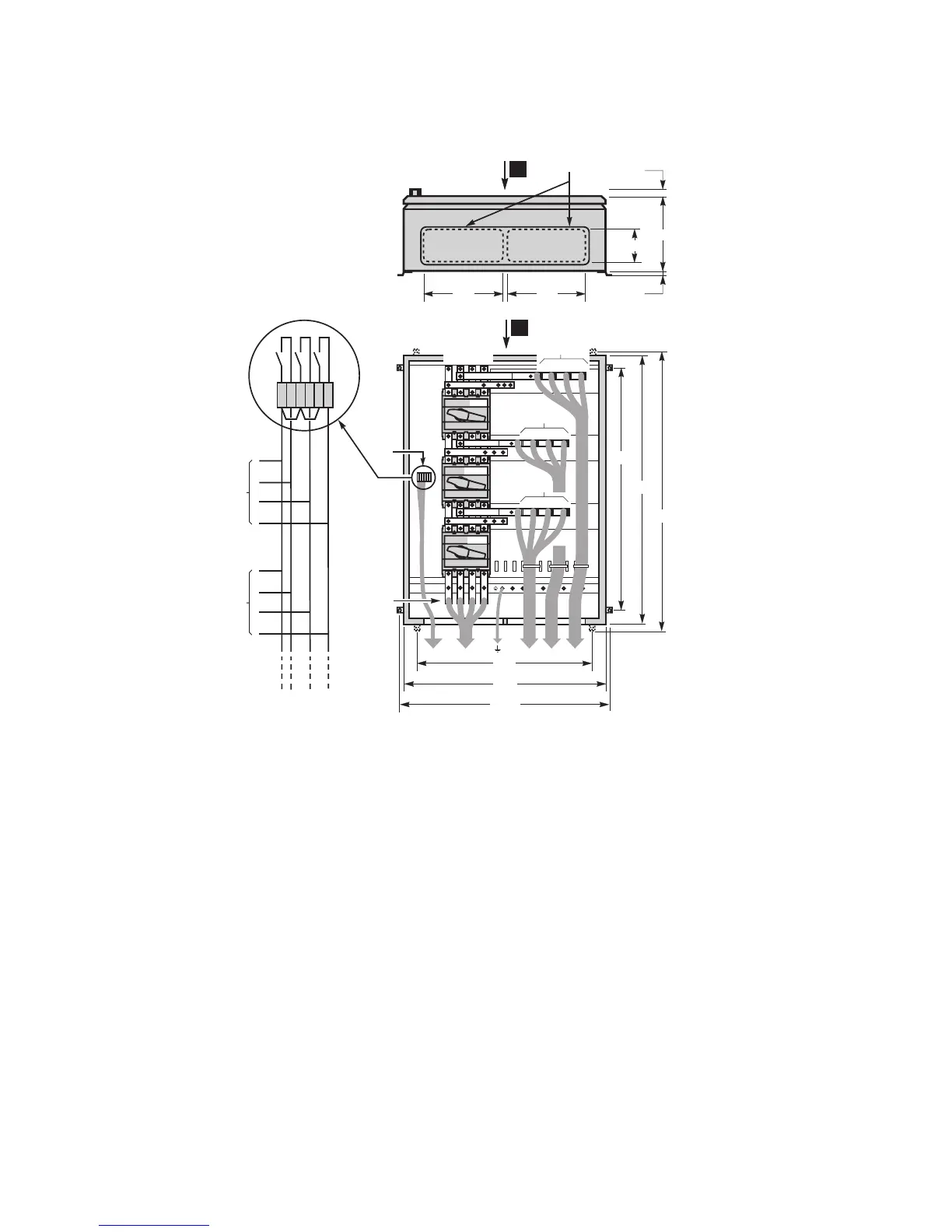

Key
A: top view of cabinet
B: front view of cabinet
C: 317 x 120 mm opening for cable running
D: connection of Bypass AC source to the UPSs
E: connection of auxiliary wires for position of Q4S, Q3BP and Q5N switches
F: connection of UPS load outputs
G: connection of Bypass AC source
H: connection of the load
15,5
15
A
120
303
317
C
317
750
E
F
800
857,5
B
1000
950
1057,5
L1
L2
L3
N
Q3BP
Q5N
Q4S
L1
L2
L3
N
H
L1
L2
L3
N
G
L1
L2
L3
N
D
L1
L2
L3
N
UPS 1
XMS04 /
XMS05
UPS 3
UPS 4
Q4S
Q3BP
123456
Q5N
UPS 2
XMS04 /
XMS05
