APC Smart-UPS VT Manual

Operation – Operation Procedures
8 Smart-UPS® VT 10-40 kVA 400V, 208V, 200V – Operation 990-2282A-001


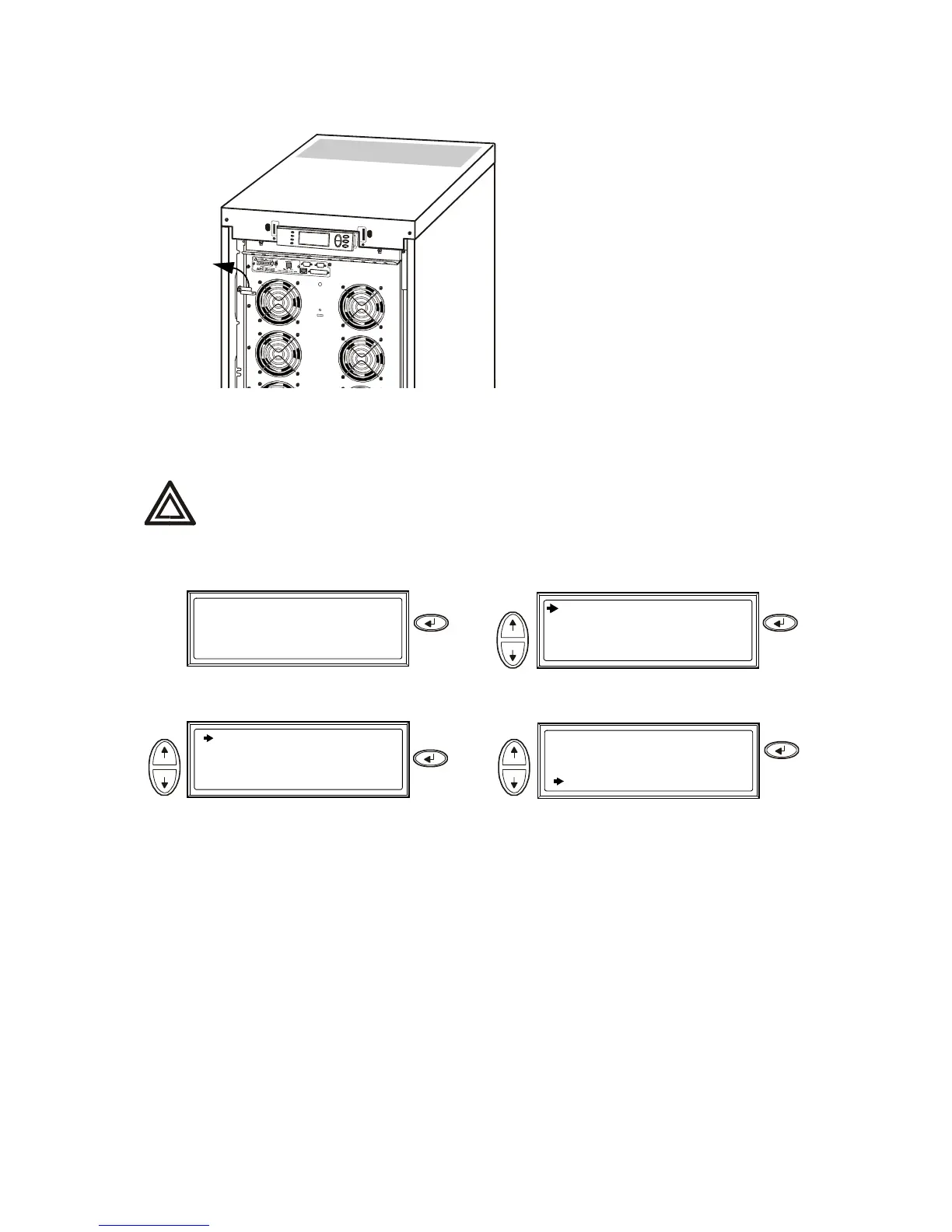

Turn the internal mechanical bypass
lever upwards to activate it. The load
will now be supported directly by
utility/mains power.

Reinstall the Front Panel.
Single System – turning into external bypass.

Warning
In bypass operation the batteries are still powered. If a total power off is required the batteries
must be pulled out to the red disconnect line, see the section How to perform a total power off.
 


From the external MBP: Turn the bypass
switch
(Q003) to position “1” (ON).

From the external MBP: Turn the output
switch (
Q002) to position “0” (OFF).

If the UPS has to be completely isolated/
removed, see the section How to perform a
total power off.
Chrg 100%
Load 000%
xxxVin 000Vout x0Hz
Runtime: 0hr 0m
Press
Control
Status
Setup
Logging
Display
Diags
Help
Use
Press
UPS into Bypass
Do Self Test
Simulate Power Fail
Start Runtime Cal
Use
Press
Confirm:
UPS into Bypass
NO, ABORT
YES, UPS into Bypass
Use
Press

APC Smart-UPS VT Specifications

General

Noise level	55 dB
Output power	24000 W
Input frequency	40/70 Hz
Maximum current	41 A
Output power capacity	30 kVA
Emergency Power Off (EPO)	Yes
Battery type	VRLA
Dimensions (WxDxH)	559 x 813 x 1499 mm
Nominal input voltage	400 V
Certification	C-tick, CE, EN 50091-2, EN/IEC 62040-3, IEC 61000-3-2, IEC 61000-3-3, ISO 14001, ISO 9001, VFI-SS-112
Product color	Black
Battery recharge time	5 h
Operating altitude	0 - 999.9 m
Non-operating altitude	0 - 15000 m
Storage temperature (T-T)	-15 - 45 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95 %
Harmonized System (HS) code	85078000

Weight and Dimensions

Weight	629090 g
Package weight	660000 g
