Apec Water Essence Series User Manual

12

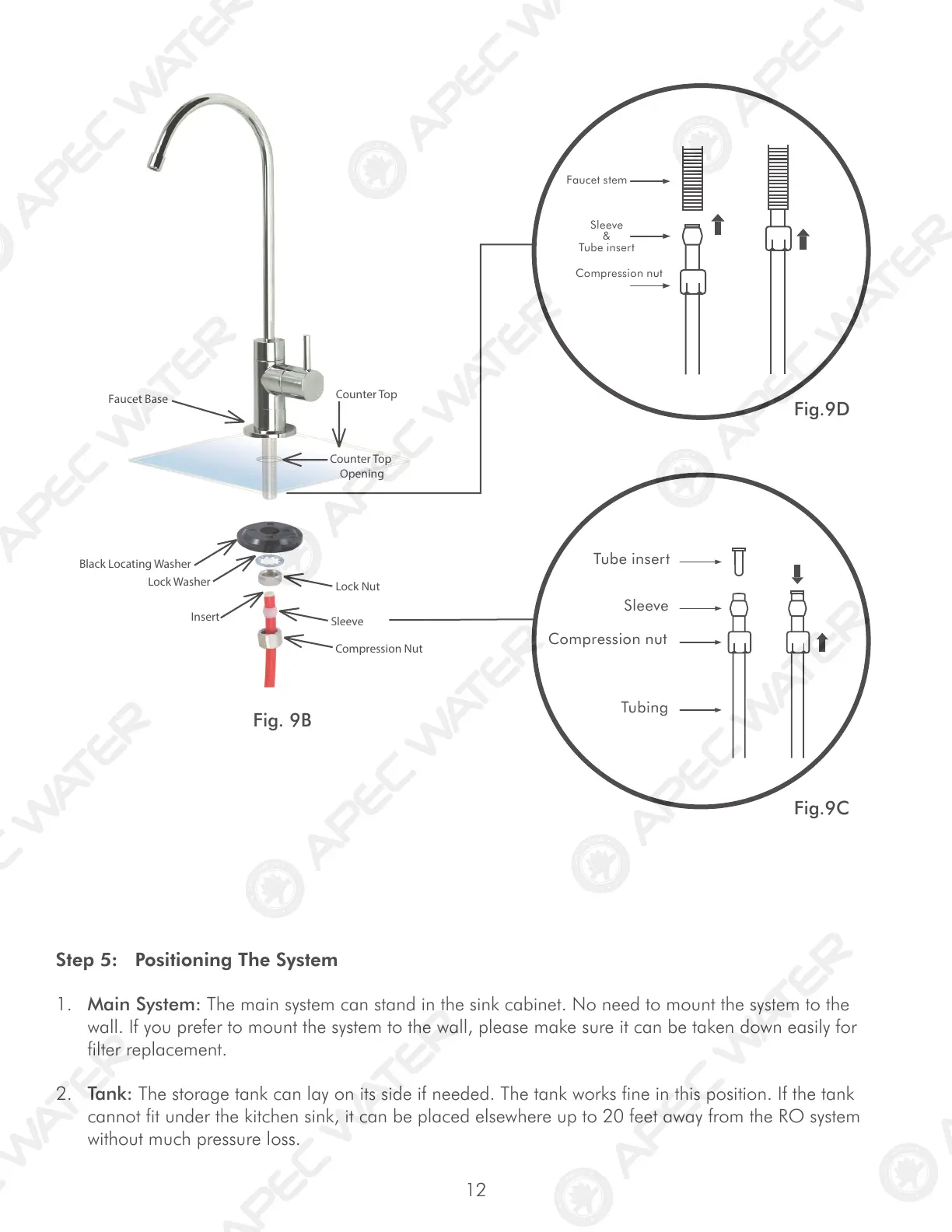

Step 5: Positioning The System
1. Main System: The main system can stand in the sink cabinet. No need to mount the system to the
wall. If you prefer to mount the system to the wall, please make sure it can be taken down easily for
filter replacement.
2. Tank: The storage tank can lay on its side if needed. The tank works fine in this position. If the tank
cannot fit under the kitchen sink, it can be placed elsewhere up to 20 feet away from the RO system
without much pressure loss.
Faucet Base
Black Locating Washer
Lock Washer
Lock Nut
Insert
Sleeve
C
ompression Nut
Counter Top
Counter Top
Opening
Tube insert
Sleeve
Compression nut
Tubing
Faucet stem
Sleeve
&
Tube insert
Compression nut
Fig.9D
Fig.9C
Fig. 9B
