36

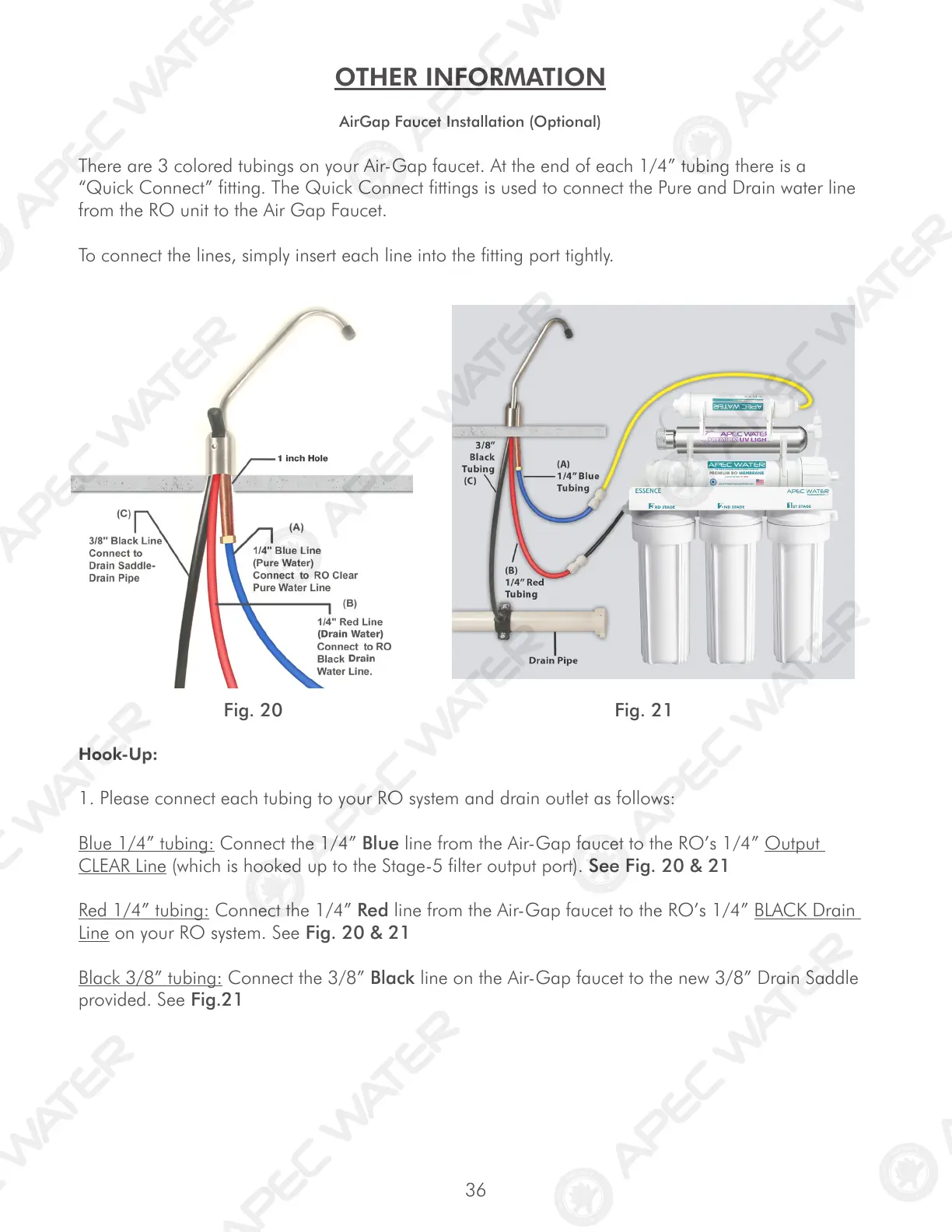

OTHER INFORMATION
AirGap Faucet Installation (Optional)
There are 3 colored tubings on your Air-Gap faucet. At the end of each 1/4” tubing there is a
“Quick Connect” fitting. The Quick Connect fittings is used to connect the Pure and Drain water line
from the RO unit to the Air Gap Faucet.
To connect the lines, simply insert each line into the fitting port tightly.
Hook-Up:
1. Please connect each tubing to your RO system and drain outlet as follows:
Blue 1/4” tubing: Connect the 1/4” Blue line from the Air-Gap faucet to the RO’s 1/4” Output
CLEAR Line (which is hooked up to the Stage-5 filter output port). See Fig. 20 & 21
Red 1/4” tubing: Connect the 1/4” Red line from the Air-Gap faucet to the RO’s 1/4” BLACK Drain
Line on your RO system. See Fig. 20 & 21
Black 3/8” tubing: Connect the 3/8” Black line on the Air-Gap faucet to the new 3/8” Drain Saddle
provided. See Fig.21
Fig. 20 Fig. 21
