Summary of Tubing Connections:

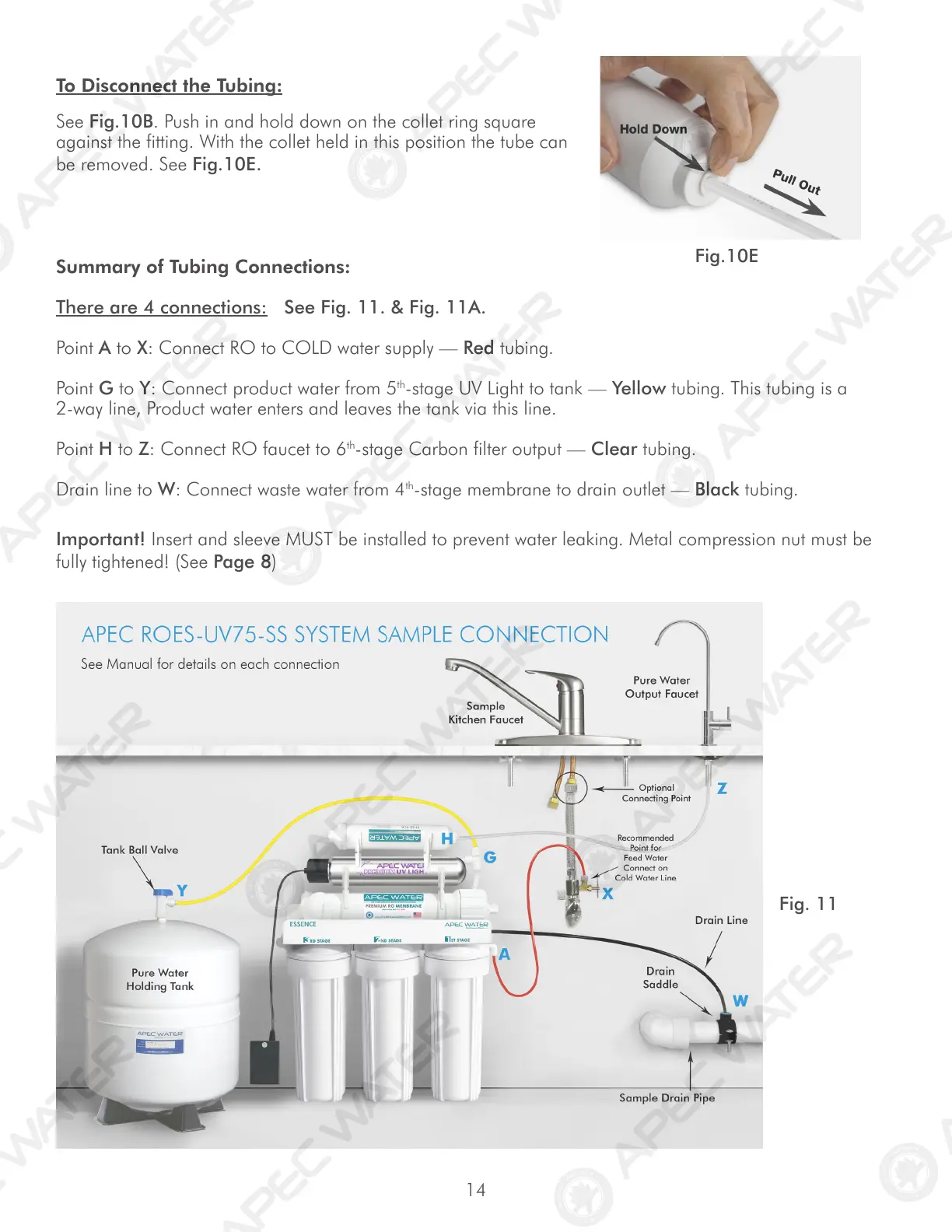

There are 4 connections: See Fig. 11. & Fig. 11A.
Point A to X: Connect RO to COLD water supply — Red tubing.
Point G to Y: Connect product water from 5
th
-stage UV Light to tank — Yellow tubing. This tubing is a
2-way line, Product water enters and leaves the tank via this line.
Point H to Z: Connect RO faucet to 6
th
-stage Carbon filter output — Clear tubing.
Drain line to W: Connect waste water from 4
th
-stage membrane to drain outlet — Black tubing.
Fig. 11
Fig.10E
To Disconnect the Tubing:
See Fig.10B. Push in and hold down on the collet ring square
against the fitting. With the collet held in this position the tube can
be removed. See Fig.10E.
Important! Insert and sleeve MUST be installed to prevent water leaking. Metal compression nut must be
fully tightened! (See Page 8)
