Apec Water SOFTENER Series User Manual

8

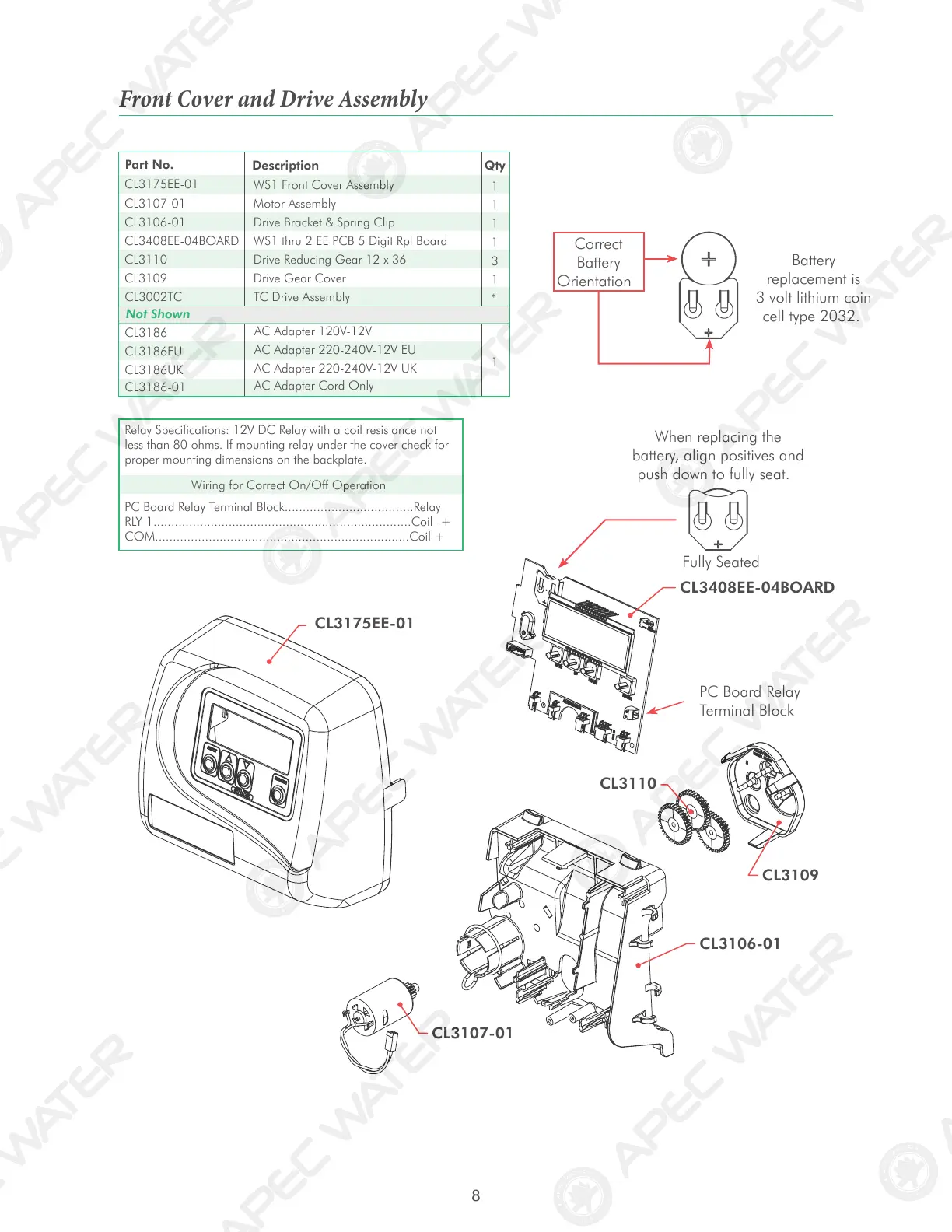

Front Cover and Drive Assembly
Fully Seated
CL3175EE-01
CL3408EE-04BOARD
CL3106-01
CL3109
PC Board Relay
Terminal Block
CL3110
CL3107-01
Part No.
Description Qty
CL3175EE-01
WS1 Front Cover Assembly
1
CL3107-01 Motor Assembly
1
CL3106-01 Drive Bracket & Spring Clip
1
CL3408EE-04BOARD WS1 thru 2 EE PCB 5 Digit Rpl Board
1
CL3110 Drive Reducing Gear 12 x 36
3
CL3109 Drive Gear Cover
1
CL3002TC TC Drive Assembly
*
Not Shown
CL3186
AC Adapter 120V-12V
CL3186EU
AC Adapter 220-240V-12V EU
1
CL3186UK
AC Adapter 220-240V-12V UK
CL3186-01
AC Adapter Cord Only
Wiring for Correct On/Off Operation
Relay Specifications: 12V DC Relay with a coil resistance not
less than 80 ohms. If mounting relay under the cover check for
proper mounting dimensions on the backplate.
PC Board Relay Terminal Block....................................Relay
RLY 1........................................................................Coil -+
COM.......................................................................Coil +
When replacing the
battery, align positives and
push down to fully seat.
Battery
replacement is
3 volt lithium coin
cell type 2032.
Correct
Battery
Orientation
