Apec Water WFS-1000 User Manual

13
Step 5: Connecting The System

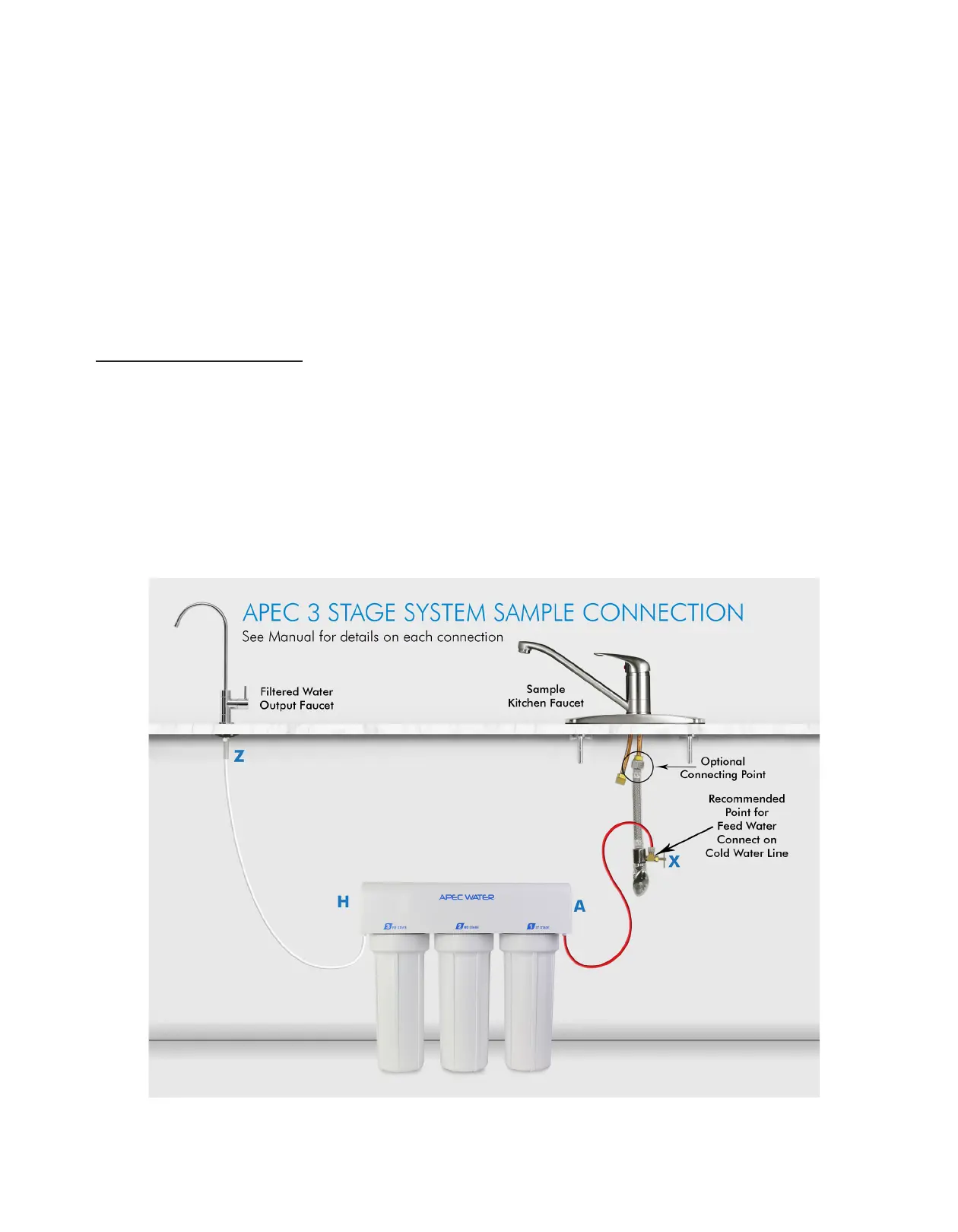

Summary of Tubing Connections:
There are 2 connections: See Fig 8
Point A to X: Connect system to COLD water supply — Red tubing.
Point H to Z: Connect drinking faucet tubing to 3
rd
-stage output — Clear tubing.
Fig. 8
Step 4: Positioning The System
1. Main System: The main system can stand in the sink cabinet. No need to mount the system
to the wall.
Important! Insert and sleeve Must be installed to prevent water leaking. Metal compression nut must
be fully tightened! (See Page 10)

Apec Water WFS-1000 Specifications

General

Brand	Apec Water
Model	WFS-1000
Category	Water Filtration Systems
Language	English
