6
3rd
Stage
2nd
Stage
1st
Stage
Use
Wrench
THERE ARE TWO PARTS TO INSTALL THE SYSTEM:
Part I. Assemble the filters and housings onto the main system
Part II. Installing the system
PART I. ASSEMBLE THE FILTERS AND HOUSINGS ONTO THE MAIN SYSTEM
Remove plastic/paper wrappings on the 3 filters, put them into the 3 housings, and assemble the
housings onto the main system as follow:

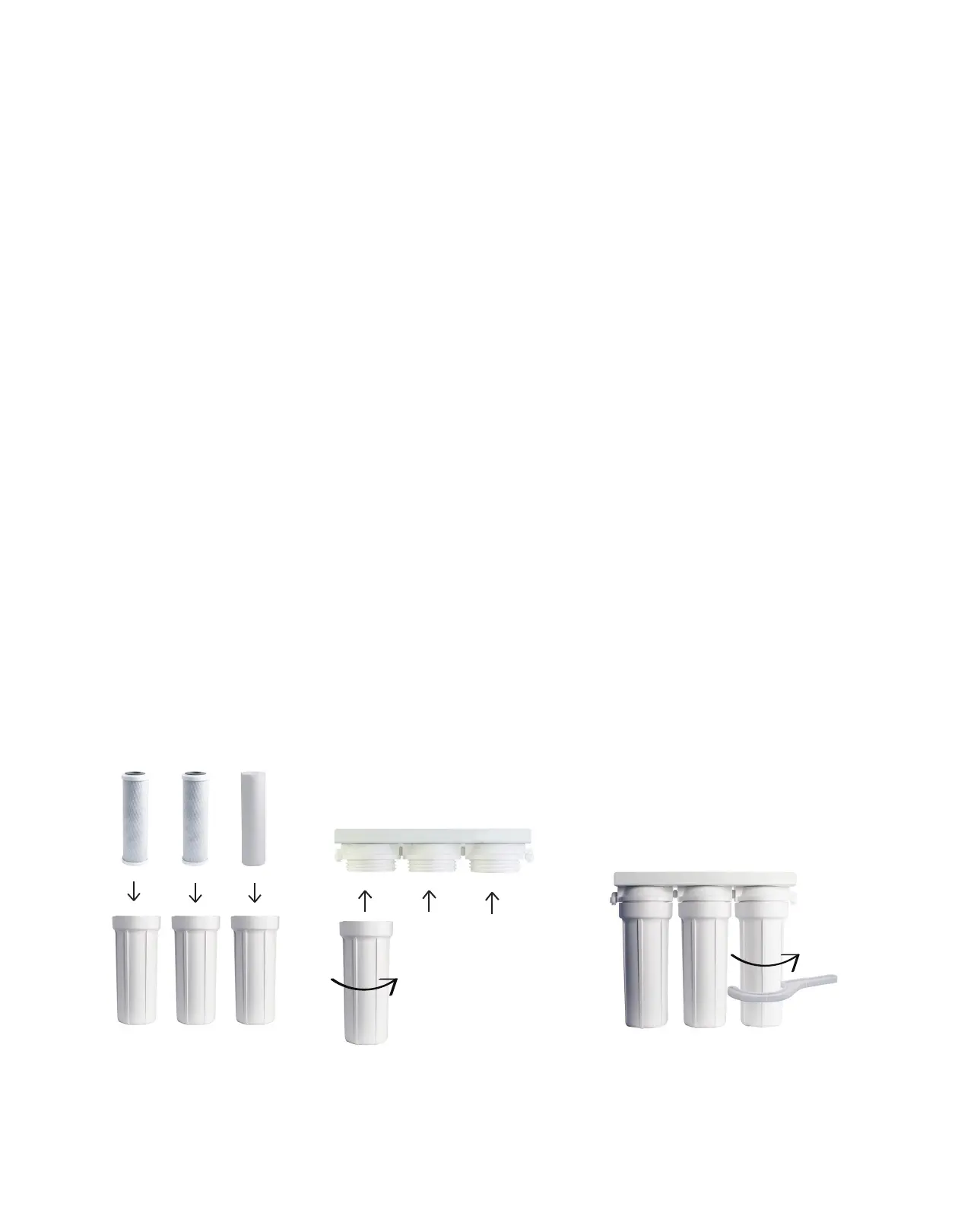

1. See Fig. 2 Stand the 3 housings upright. Make sure each housing has a rubber O-ring in its
groove.
Put the APEC Sediment filter into the “1
st
stage” housing on the right.
Put the APEC Carbon filter into the “2
nd
stage” housing in the middle.
Put the APEC Carbon filter into the “3
rd
stage” housing on the left.
2. See Fig. 3 Starting from the 3
rd
stage housing on the left, hand twist the housing onto the main
system turning counterclockwise, one by one, for all 3 housings.
3. See Fig. 4 Use the wrench provided to completely tighten the housing starting from 1st-stage.
Repeat this step for the 2
nd
stage housing in the middle, and for the 3
rd
stage housing
on right.
Note: For some people it is easier to use the wrench with the system laid down
(face up).
Fig. 2
Fig. 3
Fig. 4
turn counter-clock
to tighten
To Next Page
