5

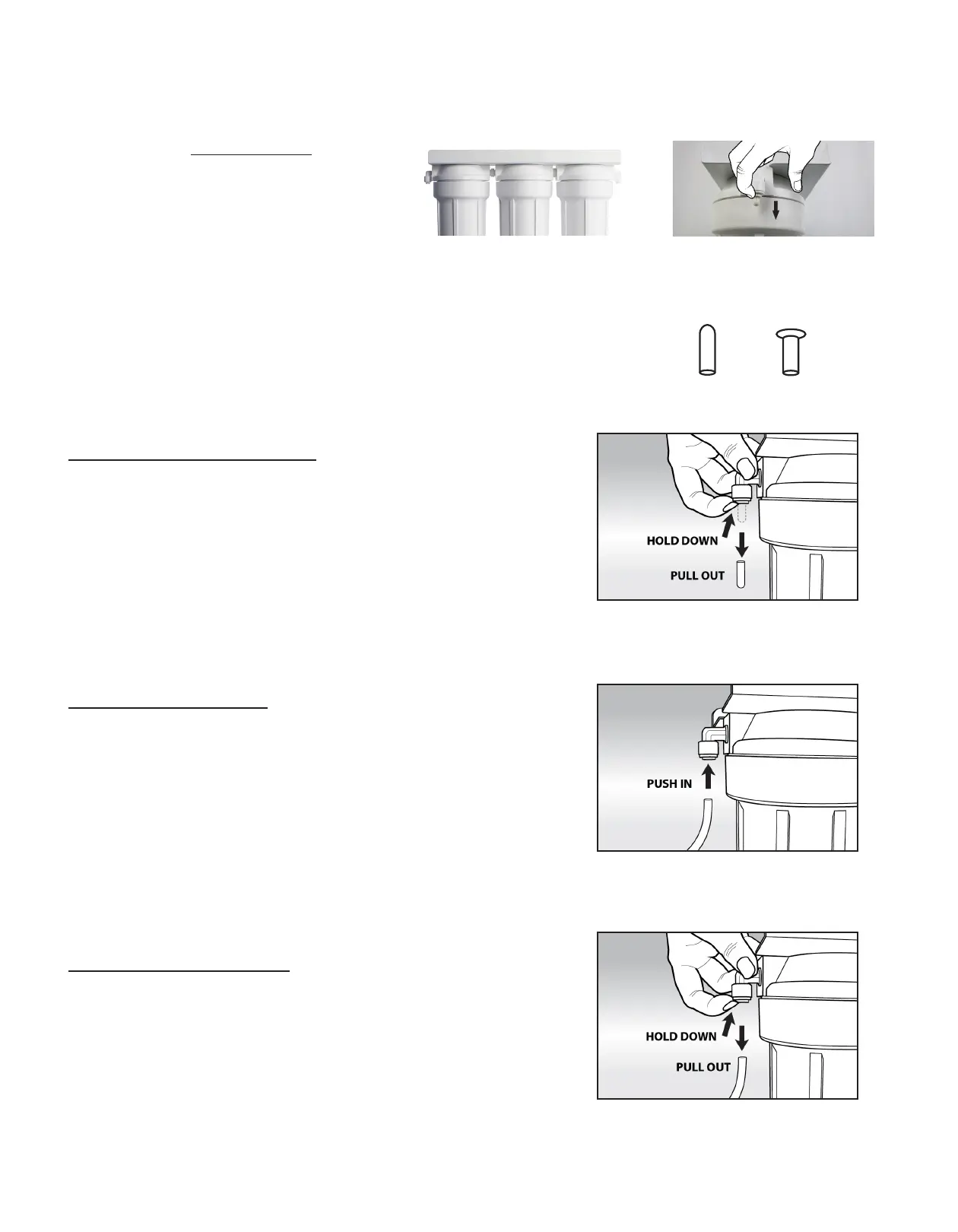

Fig.1A Fig.1B
H
IMPORTANT INSTALLATION NOTICE!
The Quick Connect fittings come with end
plugs that need to be removed before
the tubing can be connected. Please
disconnect the end plugs at Points A and
H from the Quick Connect fittings before
connecting tubing. See Fig.1A and Fig.1B.
A
Fig.1C
Fig.1D
To Disconnect the End Plugs:
Push in and hold down on the collet ring square against the
fitting. While holding down the collet ring, pull out the end
plug with your other hand. Only the plug will slide out from the
connection. See Fig.1C.
Depending on your system model, there will be 2 types of protective end
plugs. Both types of end plugs are disconnected the same way. After
disconnecting the end plugs, please discard them as they are not needed for
installation.
Soft Plug Hard Plug
2 Types of End Plugs
To Connect the Tubing:
Push the tubing all the way into the Quick-
Connect fitting, then gently pull back on the tubing to make sure
the connection is completely secure. See Fig.1D.
- No inserts, sleeve, or nuts are needed to secure the connection.
- No Teflon tape!
Fig.1E
To Disconnect the Tubing:
Push in and hold down on the collet ring square against the fitting.
With the collet held in this position the tube can be removed. See
Fig.1E.
