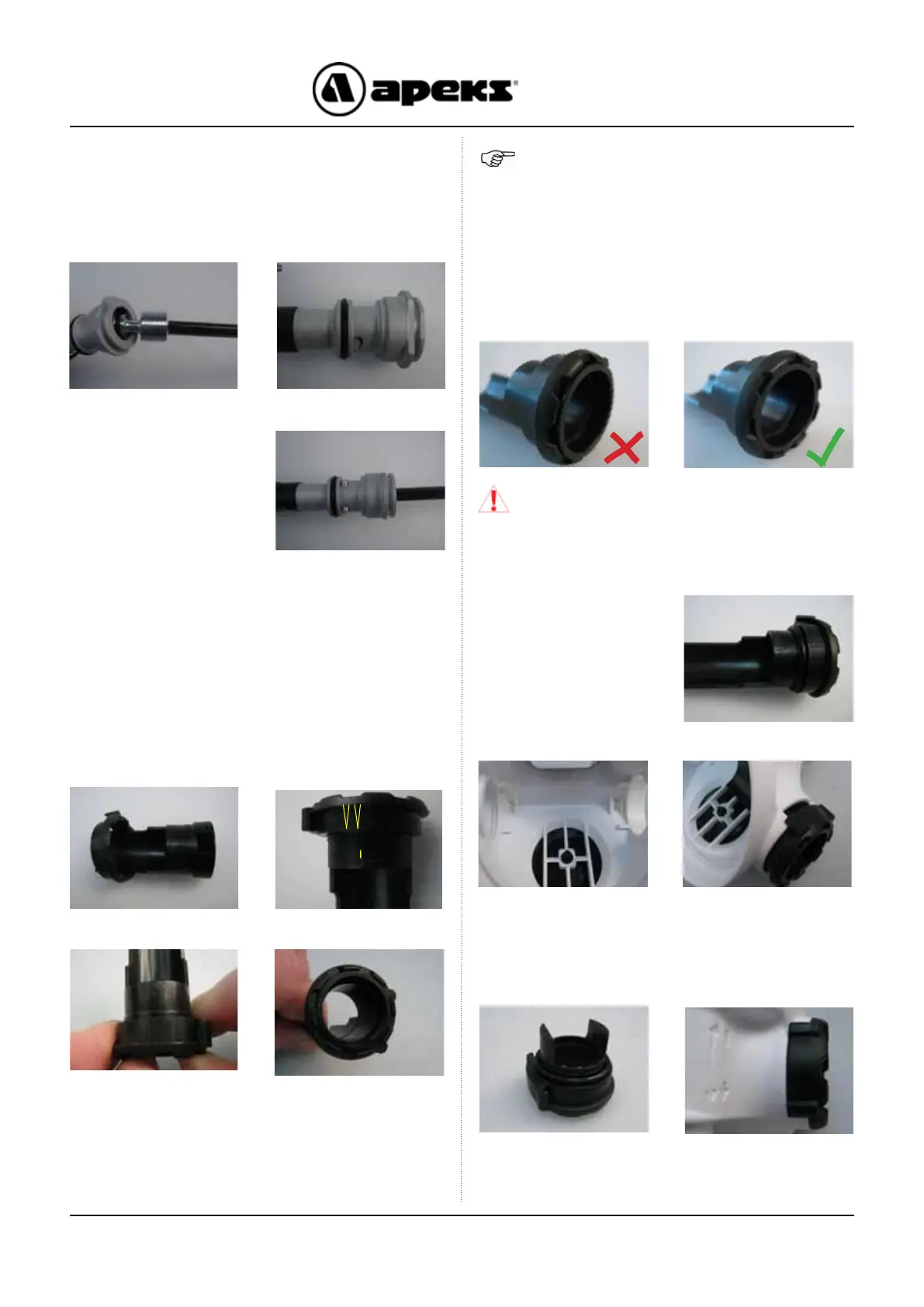

MTX-R 2nd Stage Maintenance Manual
NOTE: The Arrow and line must be aligned
to ensure that the two parts fasten together
correctly. Ensure that the correct conguration of
regulator is selected. i.e. if the Regulator is to be
congured as Right Handed, then the arrow must
be aligned to the line with RIGHT underneath.
See the section titled Converting the MTX-R
Regulator to Left Handed Conguration on
page 16 for further information.
CAUTION: Ensure that the parts of the
Venturi Lever assembly are rmly pressed
together. There should be a step as shown in
the photo on the right above. An audible click
should be heard when pressing together.
15. If the Venturi Lever Body was separated slide the
Venturi Blank (13) onto the Venturi Lever Body (14).
Align the Arrow on the Venturi Blank above the letter
‘R’ with the line on the Venturi Lever Body above the
RIGHT text. Press the Venturi Blank rmly onto the
end of the Venturi Lever Body, until it clicks into place.
16. Install a new,
lubricated ‘O’ Ring (12)
onto the Venturi Lever
assembly. Point the
Venturi Lever assembly
upward and insert it into
the Case (6), on the
side marked RIGHT.
17. Install a new, lubricated ‘O’ Ring (12) onto the
Blanking Piece (11). Point the Blanking Piece upward
and insert it into the Case. Press it against the Case
so the ‘O’ ring is captured.
13. Install the Adjusting Screw into the Valve Spindle
using a 5mm Hex Key. There should now be spring
tension on the Lever. Continue to screw clockwise
until the holes for the Spring Pin are clear.
14. Install the Spring
Pin (20). Be sure that
it sits evenly in the
hole. Back the Screw
Adjuster (27) out anti-
clockwise to apply
tension on the Pin to
prevent it from falling
out.
LEFT RIGHT
RIGHT
R L
