MTX-R 2nd Stage Maintenance Manual
PART # DESCRIPTION APPLICATION IMAGE
AT79 O Ring Removal Pick O Ring Removal
AT94 Front Cover Tool Case Cover Removal and Installation /
Setting of Lever Height
AT51/L Slotted Seat Adjuster Removal and Instalation of Seat
N/A Torque Wrench Nm or lb/ft Hose and Heat Exchanger
N/A 11/16” Adapter for Torque Wrench Hose
AT34 11/16” Spanner Hose
AT37 5mm Hex Key Removal and Installation of Screw
Adjuster and Adapter Hose
N/A Flat Screwdriver Removal of Bumper
N/A Side Cutters Tie Wrap and Exhaust Valve
AT24 Internal Circlip Pliers Seat Removal and Spindle Collar Fitting
AT72 Inline Adjustment Tool Setting Lever Height
N/A 28mm Spanner Heat Exchanger Removal
N/A 28mm Crow’s Foot Wrench Heat Exchanger Fitting
N/A 232 or 300 Bar Diving Cylinder Final Testing

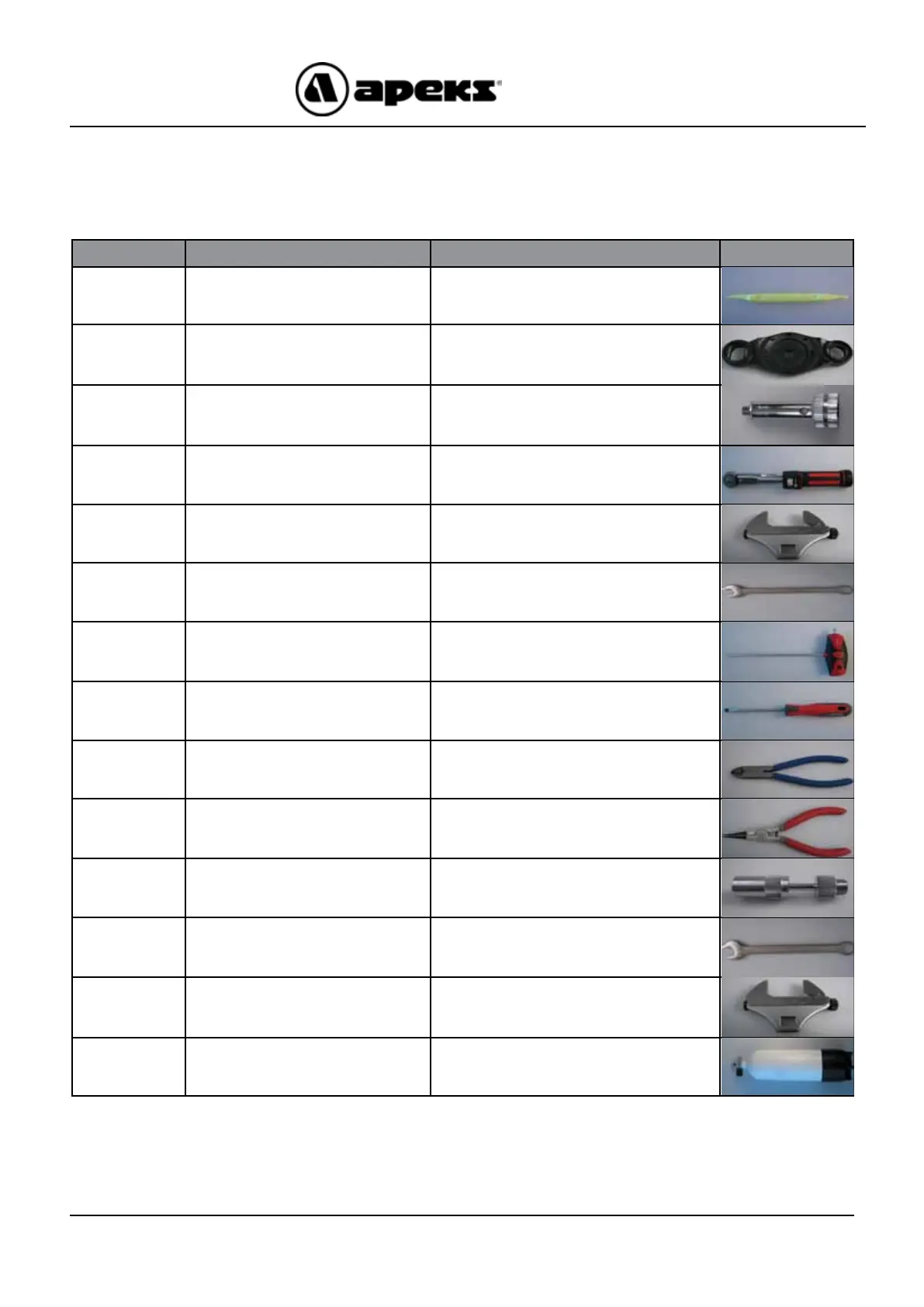

Table 2 - Recommended Tool List
