Apeks MTX-R User Manual

25
MTX-R 2nd Stage Maintenance Manual

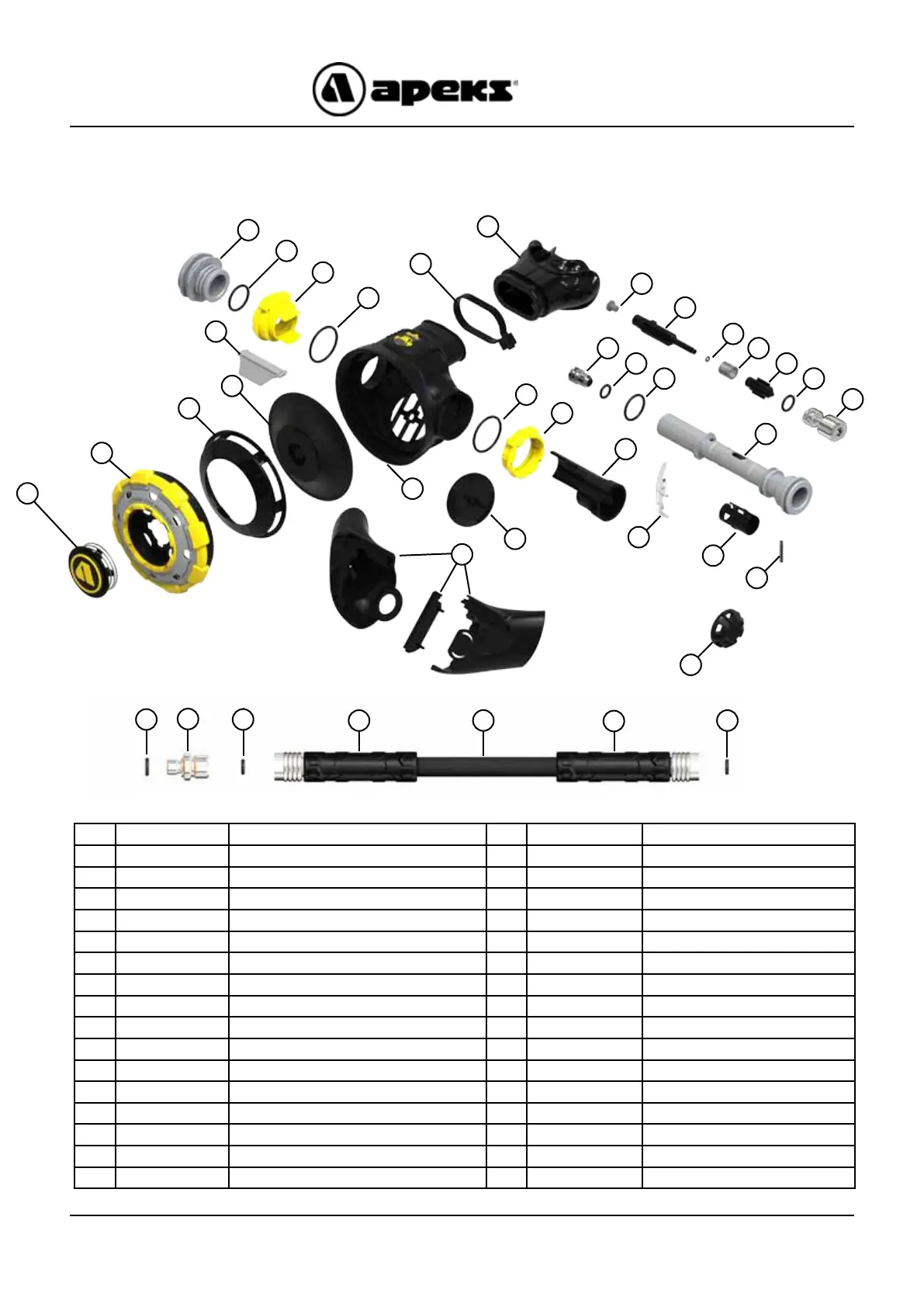

Exploded Parts Diagram AP0065 MTX-R Octopus
1 AP0295Y Purge Button Octopus Assembly 18 AP6215 Spindle Collar
2 AP2000SYE MTX-R Front Cover Octo 19 AP2035 Lever
3 AP5802 Inner Cover 20 AP1151 Spring Pin
4 AP5803 Diaphragm Assembly 21 AP2034 Silicone Valve Seat
5 AP2037 Deector 22 AP2036 Shuttle Valve
6 AP6300YD MTX-R Case with Octopus Decal 23 AP2041 O Ring
7 AP1677 Tie Wrap 24 AP2021 Valve Spring
8 AP5324 Mouthpiece Comfobite 25 AP2038SQ Counter Balance Cylinder
9 AP2004S Heat Exchanger Satin 26 AP1409 O Ring
10 AP1267 O Ring 27 AP2006 Screw Adjuster
11 AP6211/Y Blanking Piece, Yellow 28 AP2012 Bumper
12 AP1438 O Ring 29 AP6223 Exhaust Valve
13 AP2014Y Venturi Blank, Yellow 30 AP6220/K Long Exhaust Kit
14 AP6213 Venturi Lever Body 31 AP6236 Swivel Hose Protector
15 AP1154 O Ring 32 AP0198/DSW Double Swivel 3/8” Flexi
16 AP2033 Seat 33 AP3050 Adapter Hose 3/8” UNF
17 AP2005S Spindle MTX Satin
All items in bold italics to be replaced when servicing. Service kit AP0219
26
15
15
33
31
31
32
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
16
10
17
18
19
20
21
22
23
24
25
26
27
28
29
30
