10

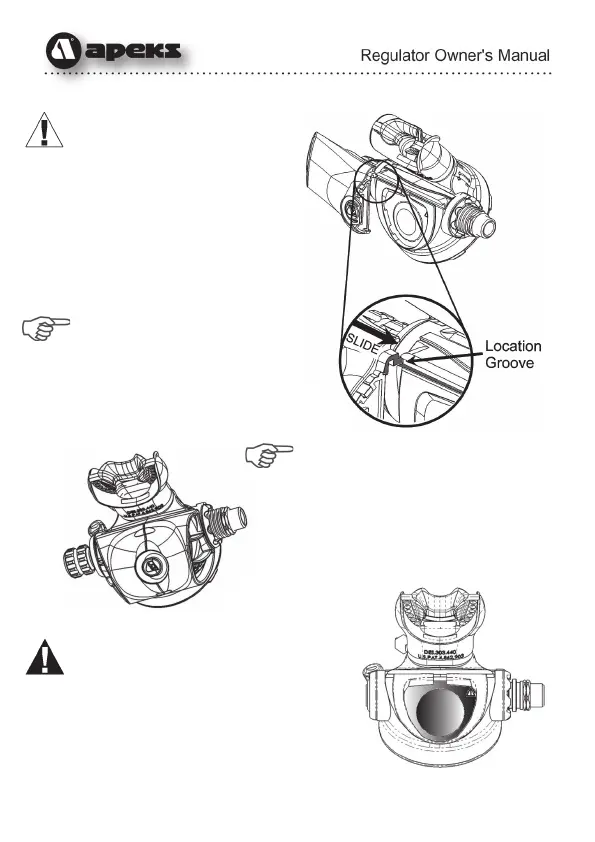

CAUTION! Ensure location
grooves are free from dirt
and debris.
3. Refitting the exhaust diffusers
is carried out by sliding ONE
diffuser at a time onto the
case, once both diffusers are
located on the case, squeeze
the two diffusers together until
you hear an audible “click”.
NOTE: The removal and
refitting of the small exhaust
diffusers is carried out in
exactly the same way as the
large exhaust diffusers.
NOTE: If the exhaust diffusers do
not securely clip together then
they may become detached and
lost. (If required, exhaust
diffusers may be purchased
separately).
WARNING: Do not attempt to use
tools to remove or attach the
exhaust diffusers. After the removal
of the exhaust diffusers care must
be taken to prevent damage to the
exhaust valve. Do not attempt to
poke, pull or touch the exhaust
valve or surrounding area with any
tools. If damage to this part or
Shaded area indicates exhaust
valve and surrounding area.
