TX Second Stage Regulator Maintenance Manual
21
TX Second Stage Regulator Maintenance Manual

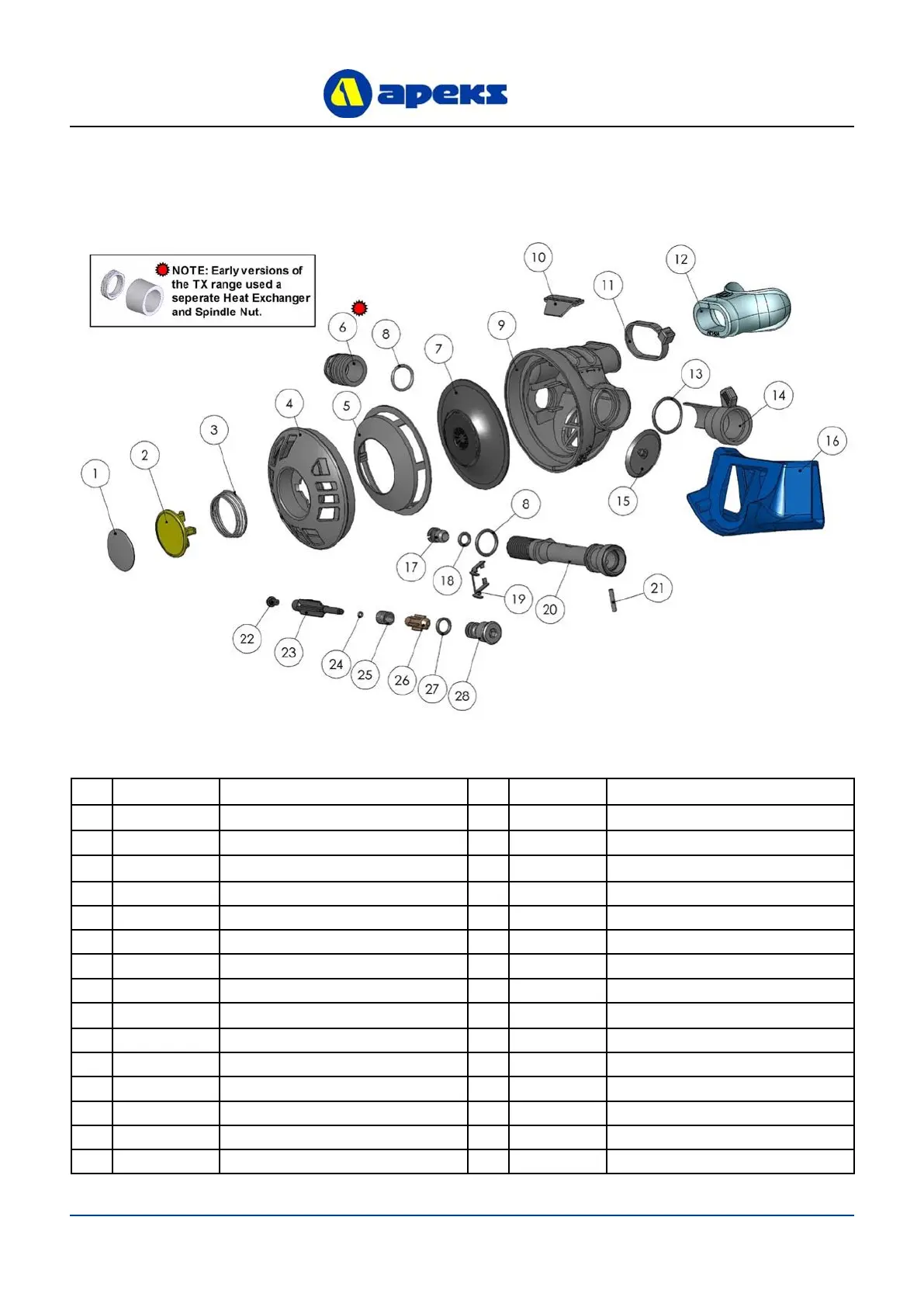

TX40 & T20 Exploded Parts Diagram
* All marked items must be replaced when serviced.
1 AP5004/2 Decal (TX40) 15 AP1429 Exhaust Valve
AP2053/5 Decal (T20) 16 AP2040 Exhaust Tee
2 AP2053 Purge Button 17 AP2033 Seat
3 AP2020 Spring 18* AP1154 ‘O’ Ring
4 AP2026 Case Cover 19 AP2035 Lever
5 AP2025 Diaphragm Cover 20 AP2028 Valve Spindle
6 AP5002 Heat Exchanger (TX40) 21 AP1151 Spring Pin
AP5003 Spacer (T20) 22* AP2034 Rubber Seating
7 AP2023 Diaphragm 23 AP2036 Shuttle Valve
8* AP1267 ‘O’ Ring 24* AP2041 ‘O’ Ring
9 AP5001 Case 25 AP2021 Spring
10 AP2037 Deector 26 AP2038 Counter Balance Cylinder (Long)
11* AP1677 Mouthpiece Clip ** AP2038/SQ Counter Balance Cylinder (Short)
12 AP1434 Mouthpiece 27* AP1409 ‘O’ Ring
13* AP1438 ‘O’ Ring 28 AP2029-1 Adjusting Screw
14 AP2039 Venturi Lever
** AP2038/SQ Canada, USA & South America Only
