4. Repeat the process for the lower cylinder band.
See the following section to nish attaching the WTX-D system to a cylinder:
• GripLock™ Cylinder Band Setup
3. Bring the cylinder band end around and exit through
the upper left oval grommet hole on the buoyancy cell.
CAUTION: The cylinder bands must be run through the center webbing loop only on the
WTX harness when using a WTX-D single cylinder buoyancy cell. Trying to congure the
cylinder bands differently can cause damage to the buoyancy cell which is not covered
by warranty.

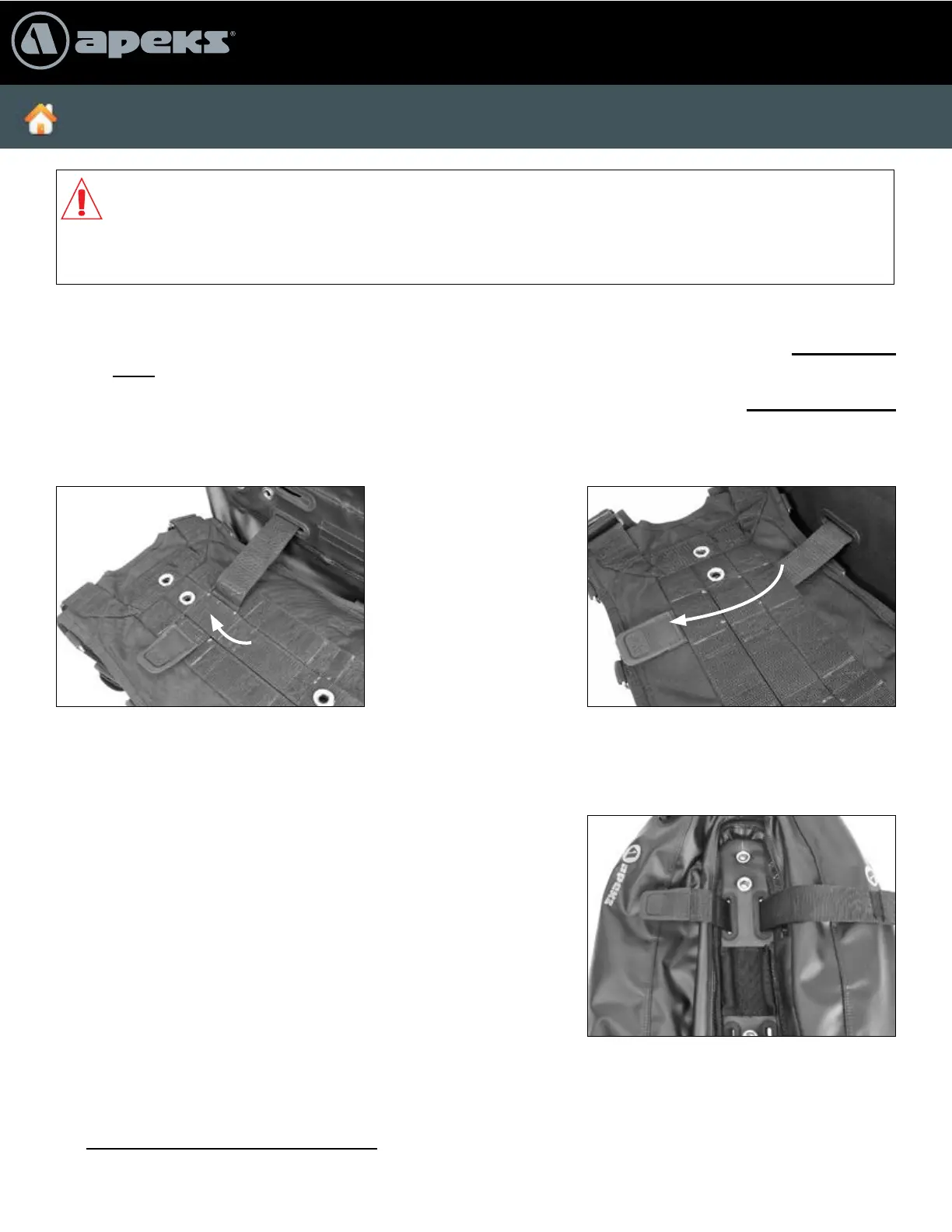

2. Use the following procedure for attaching the cylinder band to the harness:
• If using a WTX-D single cylinder buoyancy cell, insert the band through the center web
loop on the WTX harness.
• If using a WTX-D twin cylinder buoyancy cell, insert the band through all three web loops
on the WTX harness.
WTX-D Single Cylinder Buoyancy
Cell to Harness Band Conguration
WTX-D Twin Cylinder Buoyancy
Cell to Harness Band Conguration
