Apeks XL4+ - XL4+;XL4

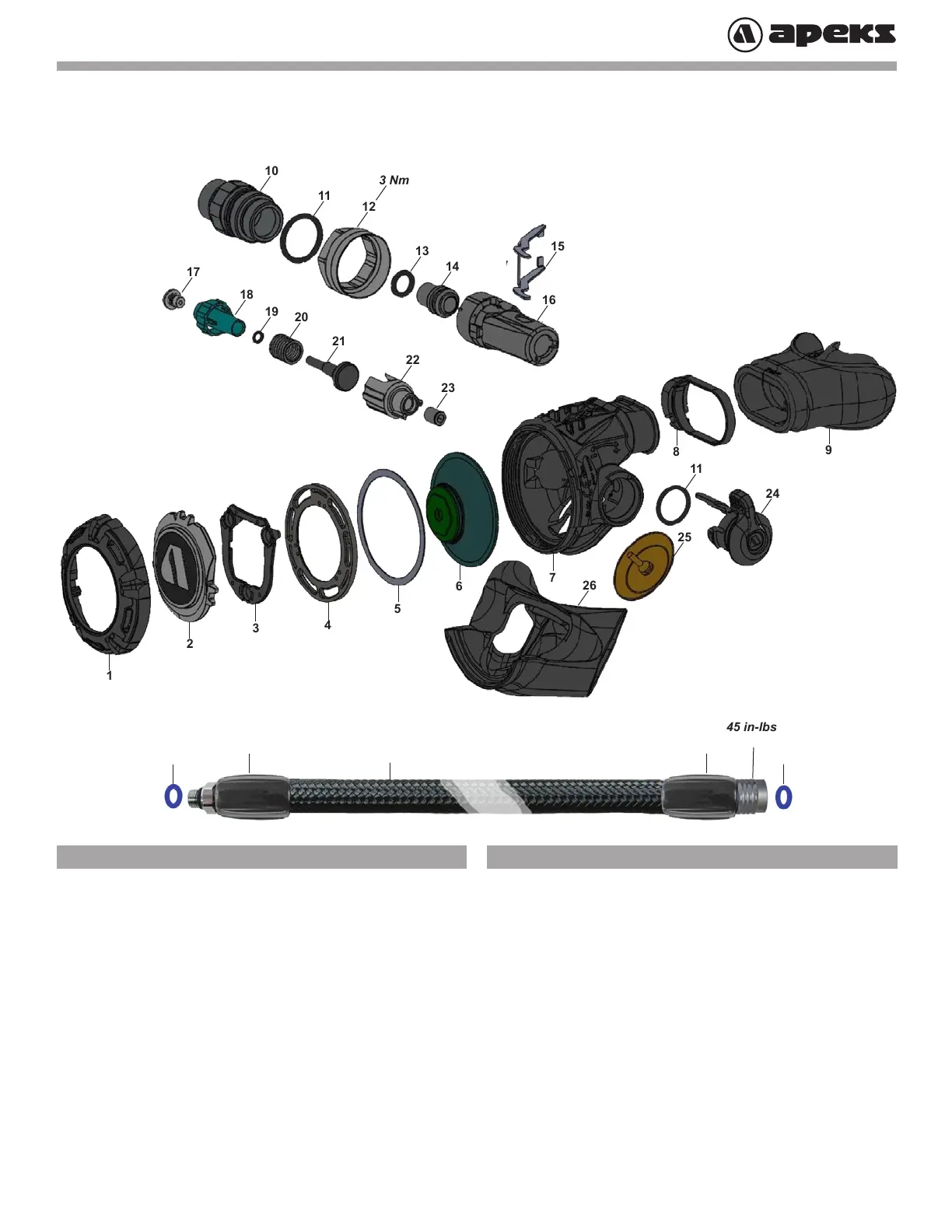

XL4+/XL4
1
2
3
4
5
6
7
9
8
10
17
18
11
12
13
14
19
20
22
21
16
15
23
11
24
25
26
28
29
13
2727
27 in-lbs
3 Nm
Part numbers in BOLD ITALICS indicate standard overhaul replacement part.
KEY# PART# DESCRIPTION
KEY# PART# DESCRIPTION
45 in-lbs
5 Nm
------ RS135111 Universal Second Stage Service Kit
1 ----- RG912435 Purge Clamp Ring, XL4+ (White)
------ RG912434 Purge Clamp Ring (Black)
2 ----- RG912440 Purge Button, XL4+ (White)
------ RG912438 Purge Button
------ RG912441 Purge Button, Yellow Octo
3 ----- RG912432 Purge Spring
4 ----- RG912160 Inner Locking Ring
5 ----- RG912297 Friction Ring
6 ---- RG912238 Diaphragm
7 ----- RG912437 Case w/Ex Tee & Valve, XL4+ (White)
------ RG912436 Case w/Ex Tee & Valve (Black)
8 ----- RG912514 Mouthpiece Clamp, XL4+ (Grey)
------ RG911254 Mouthpiece Clamp (Black)
9 ----- RG911123 Mouthpiece, XL4+ (Grey)
------ RA117137 Mouthpiece (Black)
----- RG912456 Mouthpiece, Yellow
10 ---- RG912343 Inlet Fitting, Shrouded
11 ---- RG912225 O-ring (10 pk)
12 ---- RG912344 Inlet Shroud
13 ---- RG912222 O-ring (10 pk)
14 ---- RG912237 Seat
15 ---- RG912281 Lever
16 ---- RG912163 Spindle Body
17 ---- RG912198 MP Seat, Silicone
18 ---- RG912112 Shuttle Valve
19 ---- RG912235 O-ring (10 pk)
20 ---- RG912080 Spring
21 ---- RG912342 Spring Carrier
22 ---- RG912429 Spindle Adjuster Sleeve
23 ---- RG912296 Micro Adjuster Screw
24 ---- RG912162 Venturi Lever
25 ---- RG912196 Exhaust Valve
26 ---- RG912427 Exhaust Tee, XL4+ (Grey)
------ RG912161 Exhaust Tee (Black)
27 ---- RG912414 Hose Protector, Short, Black
28 ---- RH114257 Hose, Flex, 3/8” X 30” White
----- RH114119 Hose, Flex, 3/8” X 30” Black w/Long Hose Protectors
----- RH113115 Hose, Flex, 3/8” X 36” Yellow w/Long Hose Protectors
29 ---- RG912229 O-ring (10 pk)
20
