Windows Conguration & Control Utility

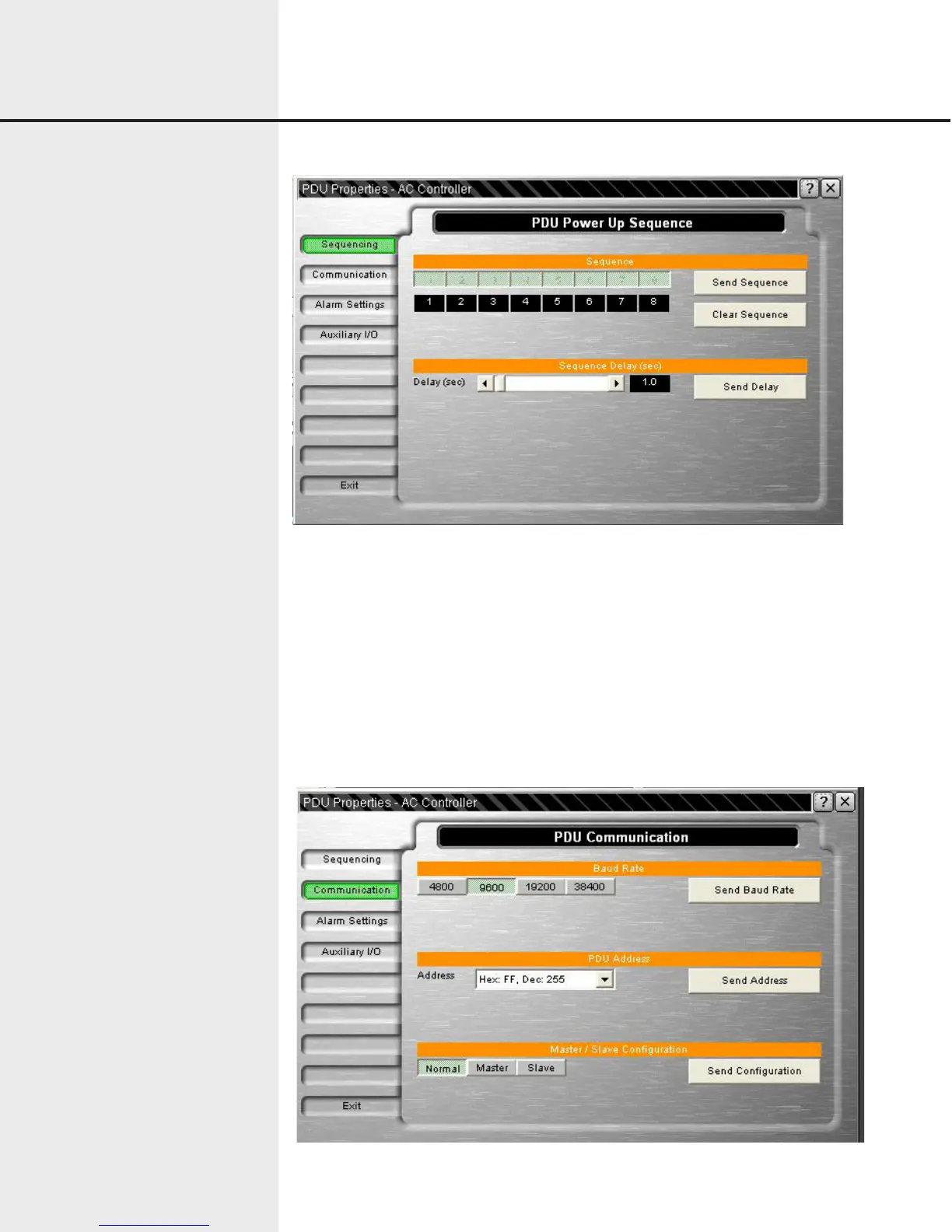

Figure 6.11 Sequencing and Delay Settings
6.6.2 PDU COMMUNICATION SETTINGS
The communication window allows the user to change the baud rate, PDU address and
master/slave configuration settings.
These settings are changed in the PDU microprocessor only. For
units that contain an optional LAN module, any communication
changes should be made from the LAN module configuration soft-
ware screens.
Figure 6.12 Communication Settings
