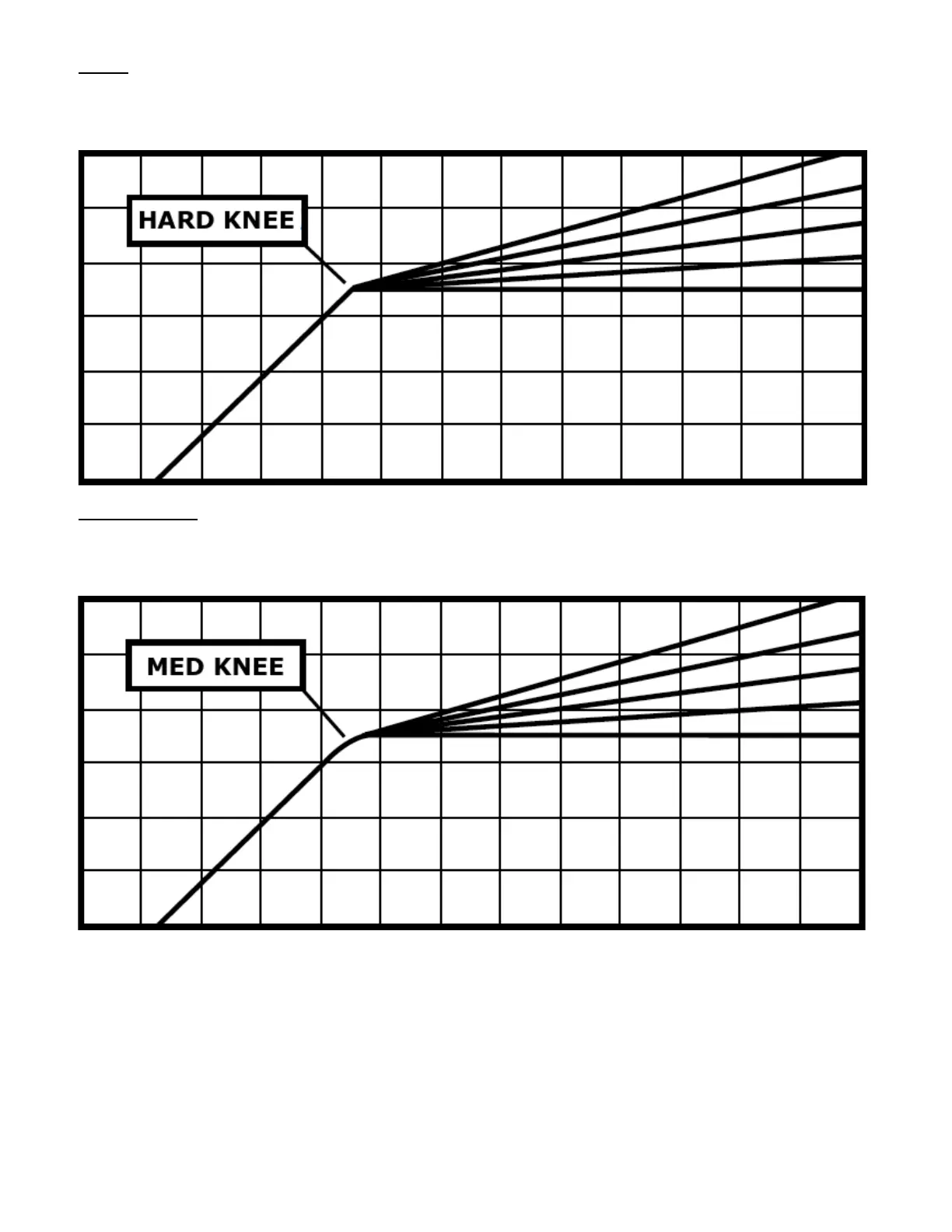

HARD: Sharp response curve
• Immediate onset of compression (sudden transition to set ratio)
• More aggressive and noticeable
• The red LED illuminates when engaged
MED (Medium): Slightly rounded response curve
• Moderate onset of compression (firm, but less sudden transition to set ratio)
• Less aggressive and but still noticeable
• The yellow LED illuminates when engaged
