API 2500 - 7.0 Output Section; 7.1.1 Make-up Gain

50
th
Anniversary 2500 Bus Compressor API
20

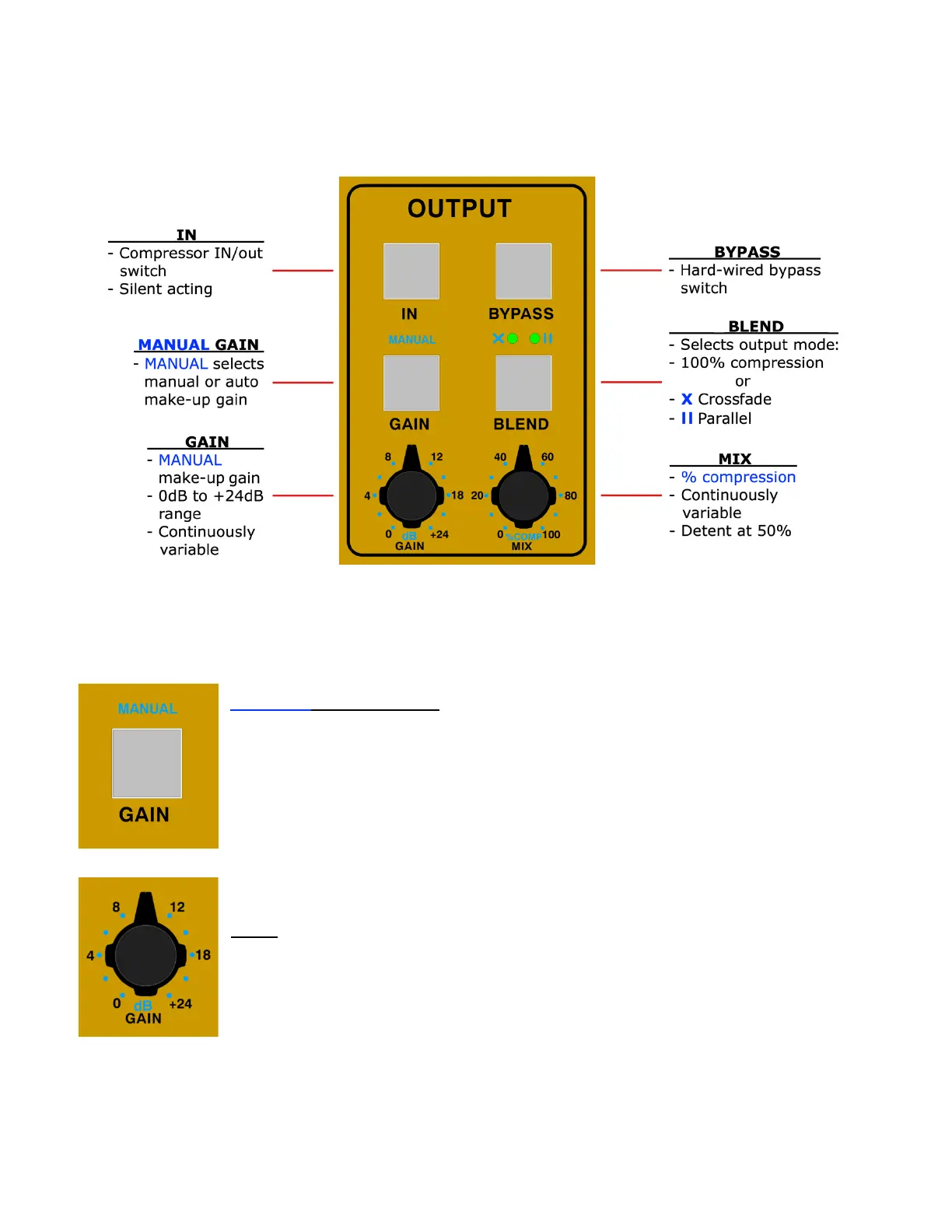

7.0 Output Section
The output section of the 50
th
Anniversary 2500 controls make-up gain, input/output blending, and
compressor IN/out and bypass functions.
7.1 Output Section Controls
7.1.1 Make-up Gain
MANUAL make-up GAIN: Toggle to select manual or auto make-up gain
• Disengages “auto” make-up gain
• Engages the manual make-up GAIN pot
• Illuminates in red when engaged
The “auto” make-up GAIN function applies make-up gain based upon the settings
of the RATIO and THRESHOLD controls.
GAIN: Manual make-up gain (output level)
• Active only when the make-up function is set to MANUAL
• Continuously variable between 0dB and +24dB
